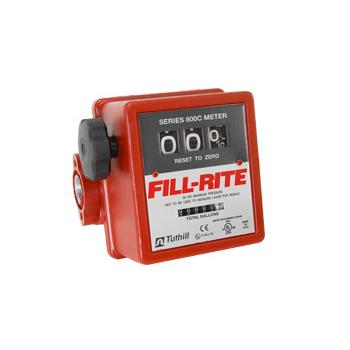

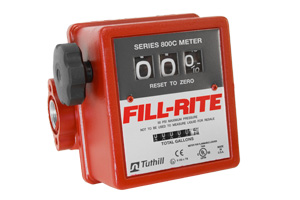

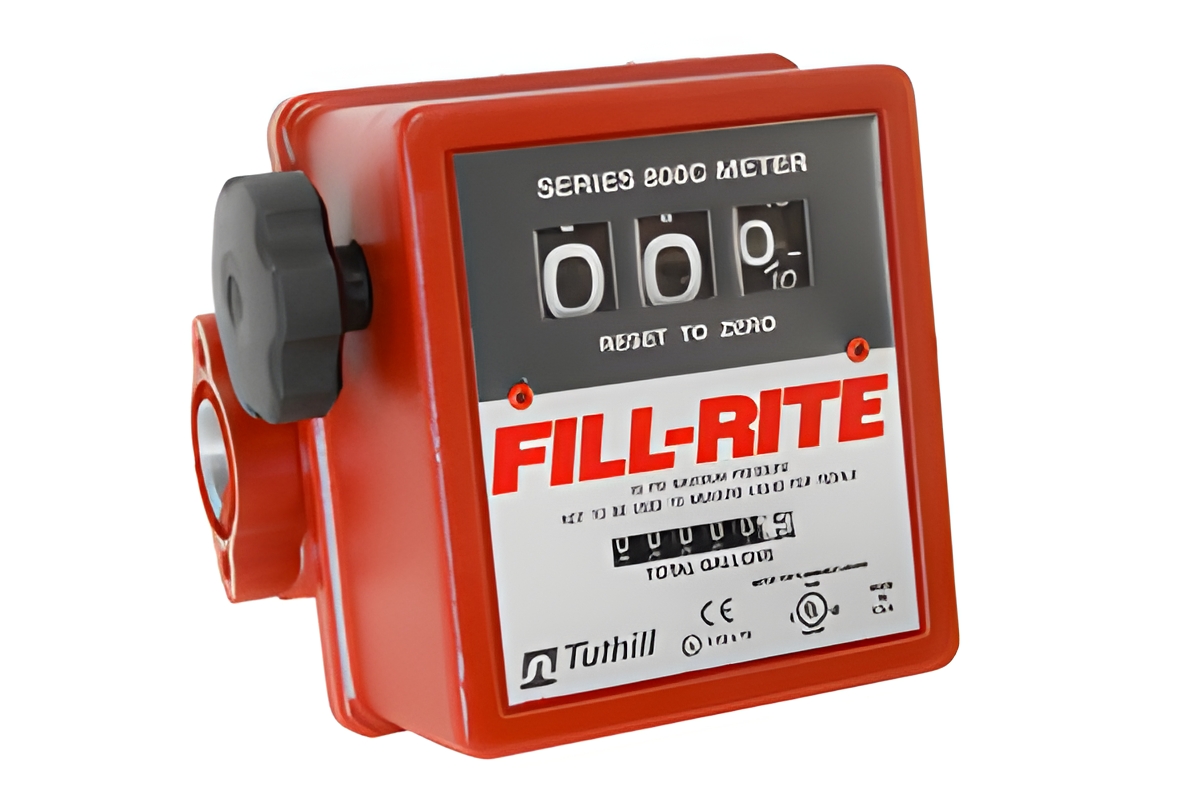

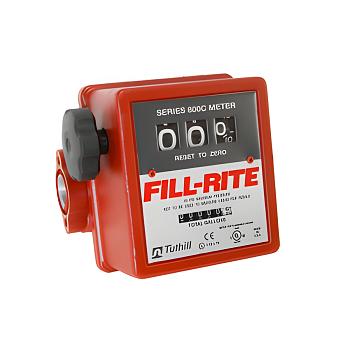

Fill-Rite 807C1 3-Wheel Mechanical, 1 in Meter

Model/SKU: 807C1
Manufacturer Part # 807C1

Description

The Fill-Rite 807C1 is a 1 inch 3-digit mechanical fuel transfer meter that reads in gallons at 5 to 20 GPM. It is sized for lower-flow transfer pumps that fill smaller equipment tanks.

Nutating disc metering measures within plus or minus 1% accuracy with 0.38% repeatability and can pass small rust and debris particles that jam other meter designs. The 3-digit batch counter registers up to 99.9 gallons per fill and resets with a knob, while a 5-digit non-resettable totalizer keeps a lifetime record. The cast-aluminum housing is rated to 50 PSI, the flow ports can be set in any of four positions for horizontal or vertical piping, and the meter is factory calibrated and can be field calibrated with an adjustment screw. It carries CE, cULus, and ATEX certifications and a 2-year warranty. Not for fluid resale.

Key Specs
  • Model: 807C1
  • Type: 3-digit mechanical nutating disc meter (gallons)
  • Flow range: 5-20 GPM
  • Accuracy / repeatability: Plus or minus 1% / 0.38%
  • Inlet / outlet: 1" female NPT / 1" female NPT
  • Counters: 3-digit resettable batch counter (up to 99.9 gallons); 5-digit non-resettable totalizer
  • Max operating pressure: 50 PSI
  • Operating temperature: -15 to 150 degrees F (-26 to 66 degrees C)
  • Compatible fluids: Diesel, gasoline up to E15, kerosene, biodiesel up to B20, mineral spirits, heptane, and hexane
  • Materials: Cast aluminum housing; fluorocarbon seals
  • Included: Meter and reset knob
  • Shipping weight: 5.5 lbs
  • Certifications: CE, cULus, ATEX
  • Warranty: 2 years
Common Uses

Adding gallon metering to 1 inch fuel transfer pumps on farm, fleet, and job site tanks that fill tractors, mowers, generators, and other smaller equipment, for in-house record keeping. Not for retail fuel sales or aircraft fueling.



Detailed Information

PDF  807C1 Manual
Fill-Rite
Fill-Rite Warranty Details:

PDF  Fill-Rite Warranty
