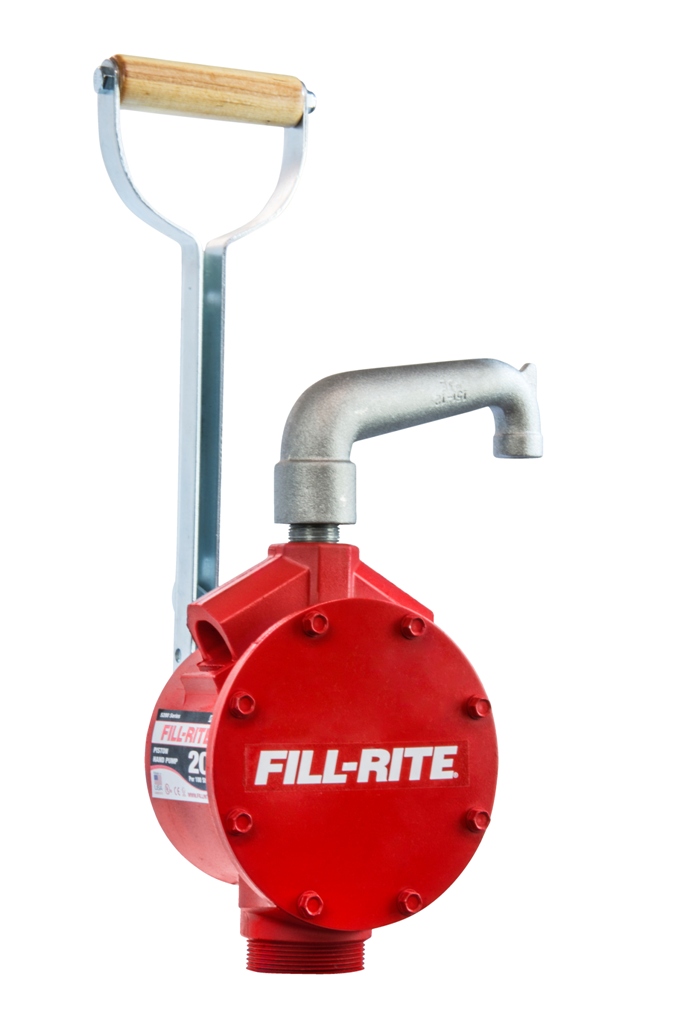

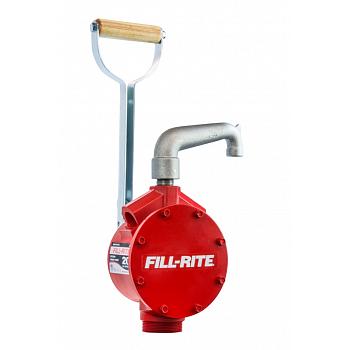

Fill-Rite FR151 Piston Hand Pump with Steel Telescoping Tube and Pail Spout

Model/SKU: FR151
Manufacturer Part # FR151

Description

The Fill-Rite FR151 is a piston hand pump sold with a pail spout and a telescoping suction pipe, without a discharge hose. It bung-mounts on a barrel or tank and delivers 20 gallons (75 liters) per 100 strokes, so you can pour fuel by hand into a pail or container when there is no power.

Double-piston action is built for faster filling with less effort, and a vacuum breaker helps keep the discharge flow steady. The cast-aluminum body is made for daily drum and tank use, the handle can be padlocked, and anti-siphon protection helps reduce spills. The kit includes a 20 inch to 34-1/2 inch steel telescoping suction pipe, a 3/4 inch cast aluminum pail spout, and a roll of PTFE tape. The inlet is 1 inch female NPT, the outlet is 3/4 inch female NPT, and the pump threads onto a 2 inch NPT bung. It is listed with CE, ATEX, and UL certifications and is backed by a 2-year warranty.

Key Specs
  • Model: FR151
  • Type: Piston hand pump with pail spout
  • Flow rate: 20 gallons / 75 liters per 100 strokes
  • Mounting: 2" NPT bung mount
  • Connections: 1" female NPT inlet, 3/4" female NPT outlet
  • Compatible fluids: Diesel, gasoline, kerosene, mineral spirits, heptane, and Stoddard solvents
  • Included: 20" to 34-1/2" steel telescoping suction pipe; 3/4" cast aluminum pail spout; PTFE tape
  • Certifications: CE, ATEX, and UL
  • Package weight: 12 lbs
  • Warranty: 2 years
Common Uses

Hand-pumping fuel from a 15, 30, or 55 gallon drum or a small tank into a pail or open container when you do not need a hose, or when you already have a discharge hose of your own.
