Fill-Rite FR1210HA 12V Fuel Transfer Pump (Unleaded Auto Nozzle, Hose, Suction Pipe) - 15 GPM

Model/SKU: FR1210HA
Manufacturer Part # FR1210HA

Description

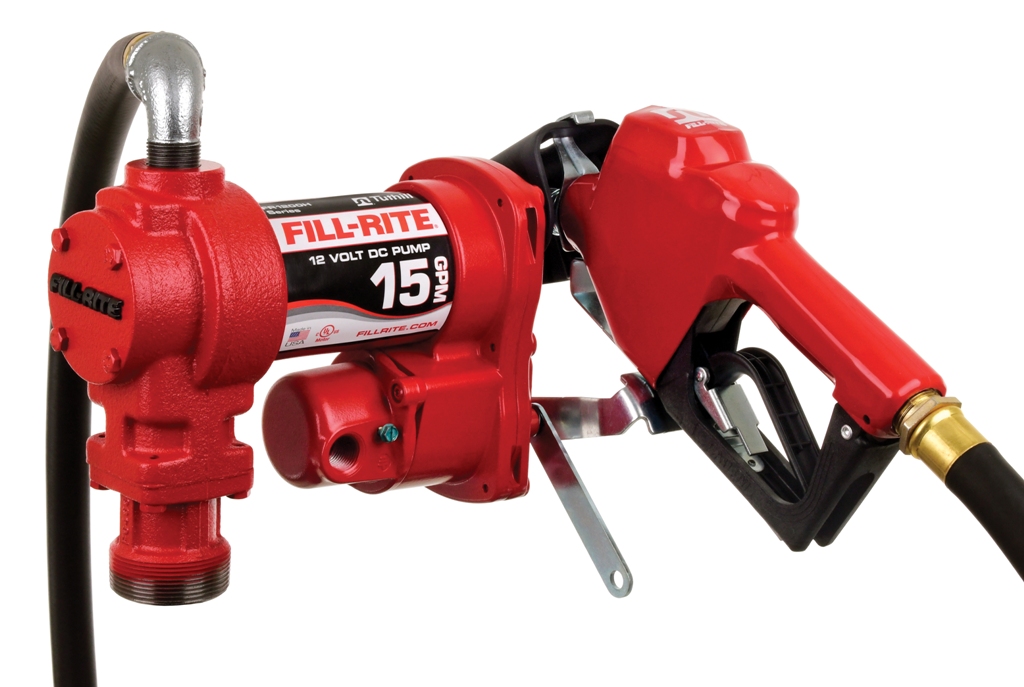

The Fill-Rite FR1210HA is a 12V DC, 15 GPM (57 LPM) heavy-duty rotary vane fuel transfer pump packaged with a 3/4 inch automatic unleaded nozzle, a 3/4 inch by 12 foot discharge hose with static ground wire, a 20 to 34-1/2 inch steel telescoping suction pipe, and an 18 foot 12-gauge power cable.

Compatible fluids are diesel, kerosene, biodiesel up to B20, gasoline up to E15, and mineral spirits. The 1/4 HP (0.25 HP) motor is thermally protected and rated 20 A, with a 30 minutes on / 30 minutes off duty cycle, 8 feet of suction lift, and 37 feet of discharge head (16 PSI). The electrical box is an adjustable junction box that rotates 180 degrees for wiring. It is backed by a Limited Lifetime warranty.

Key Specs
  • Model: FR1210HA
  • Max flow rate: 15 GPM / 57 LPM
  • Power: 12V DC, 20 A; 0.25 HP thermally protected motor; 18' 12-gauge cable with bare leads
  • Duty cycle: 30 min on / 30 min off
  • Inlet / outlet: 1 inch female NPT inlet / 0.75 inch female NPT outlet
  • Mounting: 2 inch NPT bung mount
  • Suction lift / discharge: 8' suction lift; 37' discharge head (16 PSI)
  • Operating temperature: -15 to 150 degrees F
  • Compatible fluids: Diesel, kerosene, biodiesel up to B20, gasoline up to E15, and mineral spirits

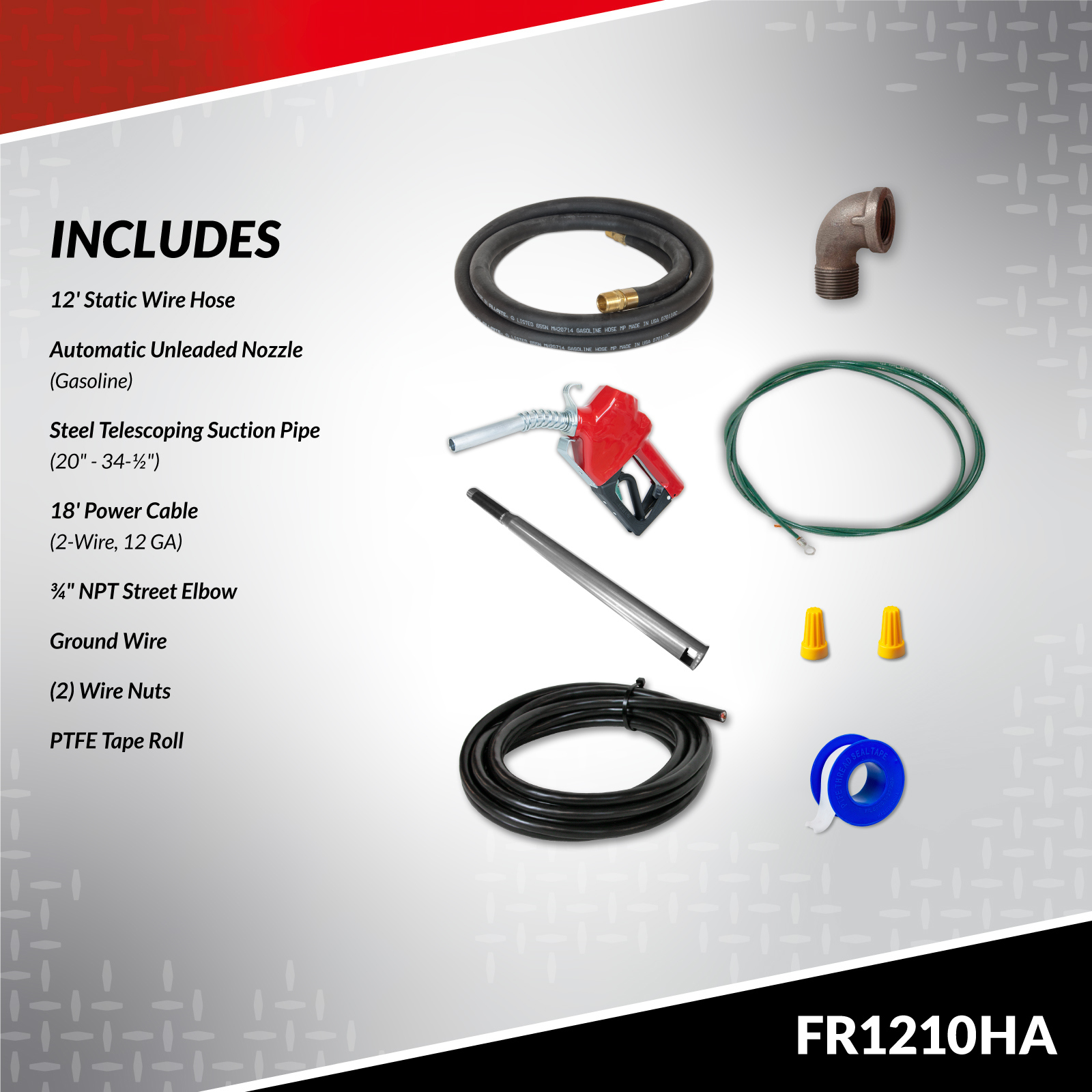

  • Included: 3/4" automatic unleaded nozzle, 3/4" x 12' hose with static ground wire, 20"-34-1/2" steel telescoping suction pipe, 18' 12-ga power cable, nozzle boot, PTFE tape, 3/4" NPT street elbow, ground wire, cable gland, wire nuts, locking nut, and fastener
  • Assembled weight: 30.4 lbs
  • Warranty: Limited Lifetime
Common Uses

Pickup-bed and other 12V transfer tanks that need a 15 GPM pump with an automatic unleaded (gasoline) nozzle already in the kit.



Detailed Information

PDF  Sales Sheet

PDF  Technical Data Sheet

PDF  Product Manual
Fill-Rite
Fill-Rite Warranty Details:

PDF  Fill-Rite Warranty
