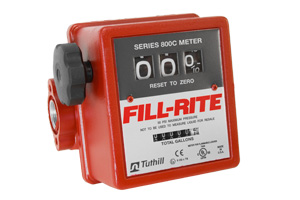

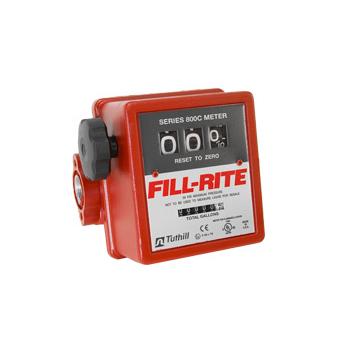

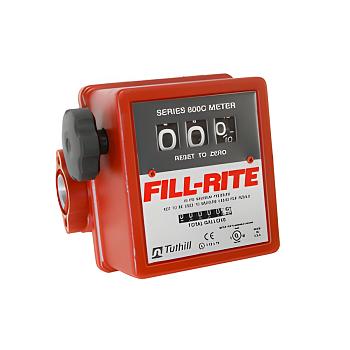

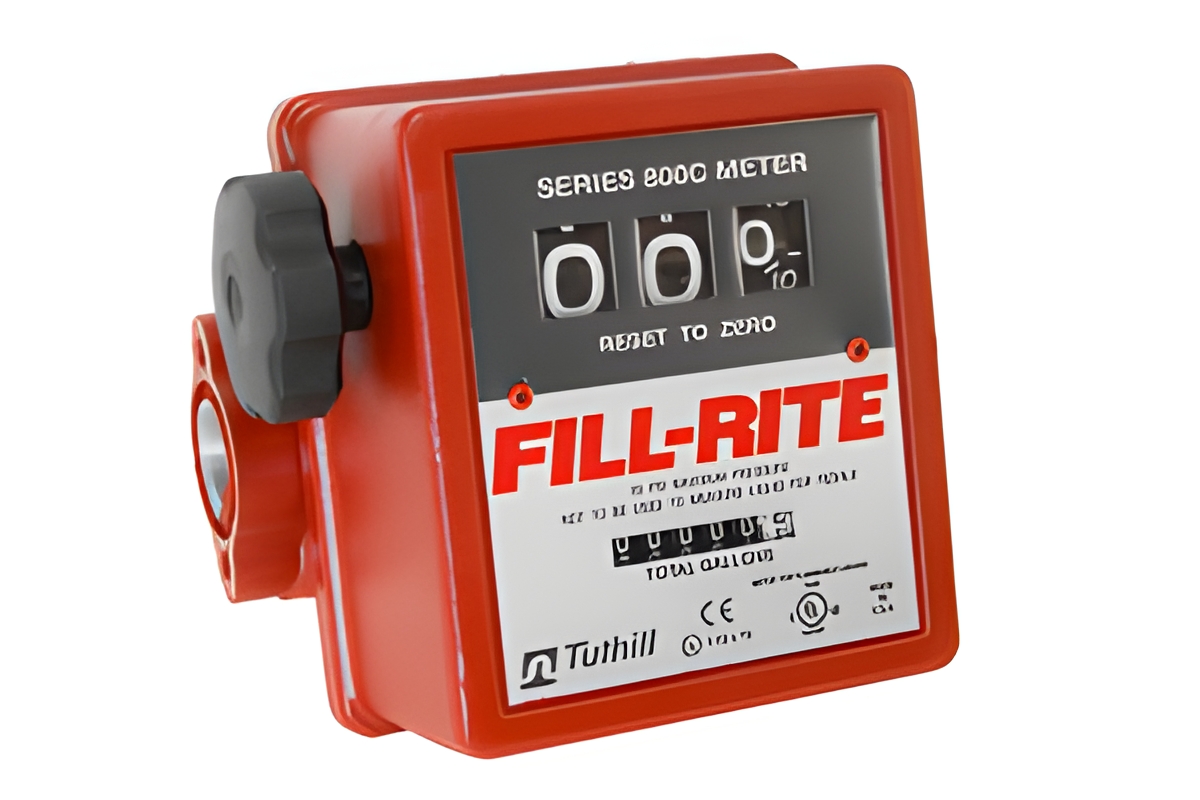

The Fill-Rite 807C is a 3/4 inch 3-digit mechanical fuel transfer meter that reads in gallons at 5 to 20 GPM. It is sized for lower-flow transfer pumps that fill smaller equipment tanks.
Nutating disc metering measures within plus or minus 1% accuracy with 0.38% repeatability and can pass small rust and debris particles that jam other meter designs. The 3-digit batch counter registers up to 99.9 gallons per fill and resets with a knob, while a 5-digit non-resettable totalizer keeps a lifetime record. The cast-aluminum housing is rated to 50 PSI, the flow ports can be set in any of four positions for horizontal or vertical piping, and the meter is factory calibrated and can be field calibrated with an adjustment screw. It carries CE, cULus, and ATEX certifications and a 2-year warranty. Not for fluid resale.
Adding gallon metering to 3/4 inch fuel transfer pumps on farm, fleet, and job site tanks that fill tractors, mowers, generators, and other smaller equipment, for in-house record keeping. Not for retail fuel sales or aircraft fueling.
