Transfer Flow 50/50 Gallon Split Refueling Dual Tank System 1
Transfer Flow 50/50 Gallon Split Refueling Dual Tank System 2Transfer Flow 50/50 Gallon Split Refueling Dual Tank System 3Transfer Flow 50/50 Gallon Split Refueling Dual Tank System 4Transfer Flow 50/50 Gallon Split Refueling Dual Tank System 5Transfer Flow 50/50 Gallon Split Refueling Dual Tank System 6
Add Electronic Fuel Meter?:

Add Fuel Filter Kit?:

Add Hose Swivel Adapter?:

Fuel Pump Type:

Tank Mounted Fuel Gauge?:

Lead Time:  1-3 Days
Ships From: California, Tennessee

Quantity

Customer Reviews
Share this page!
Twitter

Model: TF-0800113244
Manufacturer: Transfer Flow

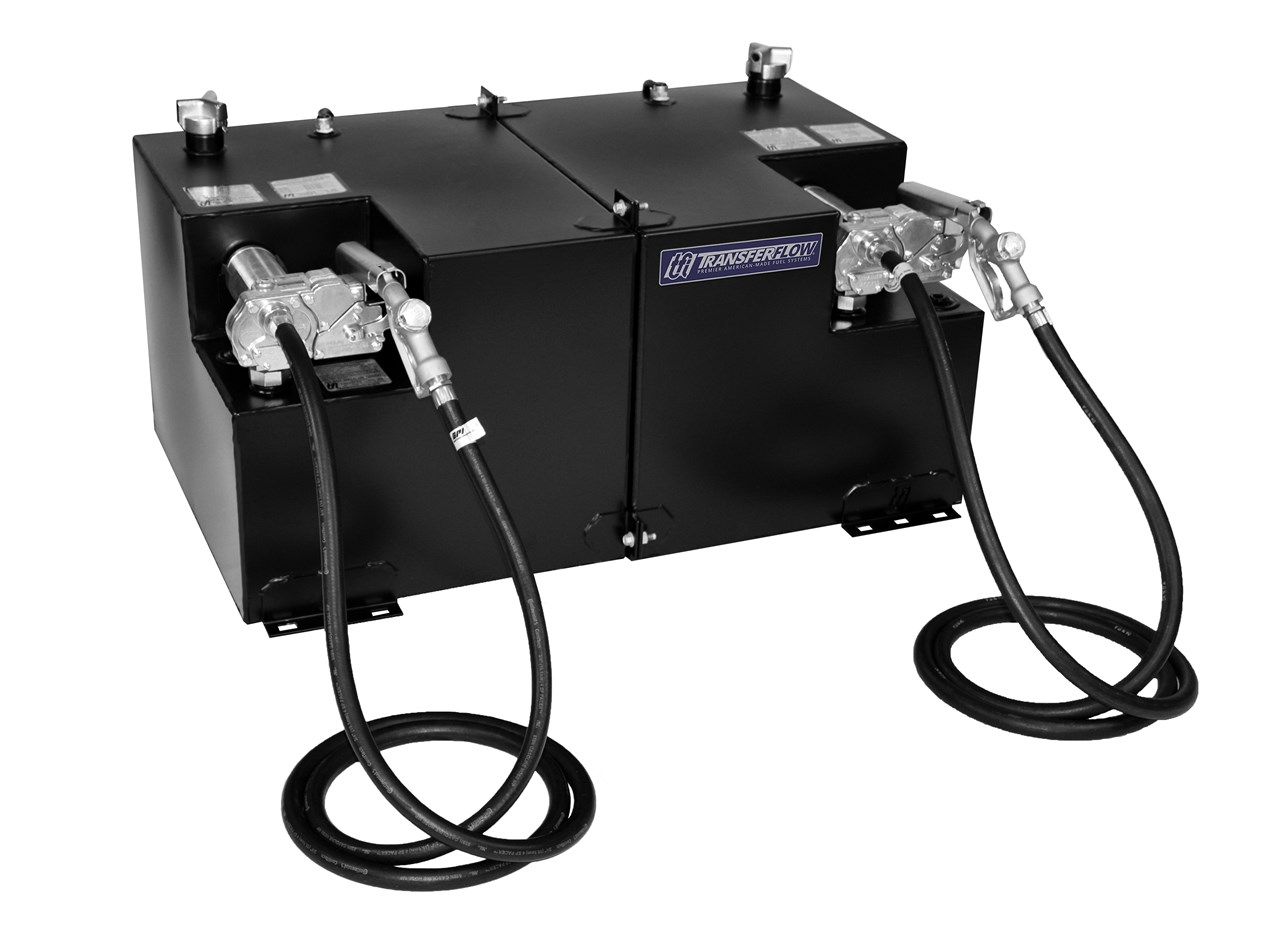

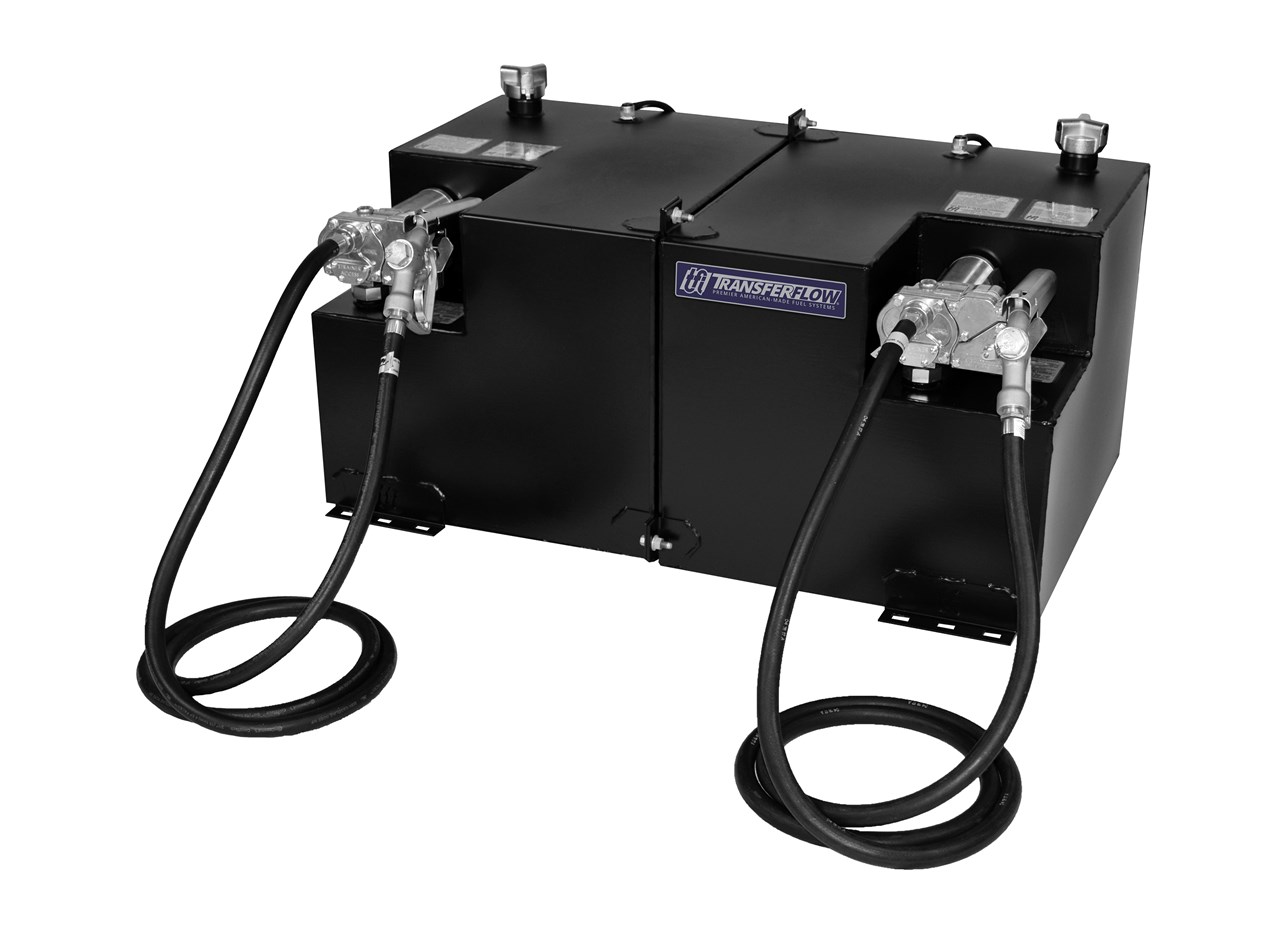

This is the Transfer Flow 50/50 Gallon Split Refueling Dual Tank System. With two 50-gallon tanks in the back of your truck, this unique tank system provides the most versatility while holding two different types of fuel. Our 50/50 split refueling tank system is Department of Transportation (DOT) legal to carry and transfer gasoline, diesel, methanol/ethanol, and kerosene. The easy-to-use hose-purge feature allows you to pull any fuel left in the hose back into the refueling tanks to eliminate messes in the truck bed and stretch your extra fuel capacity even further.

The 50/50 split refueling tank is made from 12-gauge ReliaSteel, high-yield U.S. aluminized steel, for superior durability and strength; and powder coated black for durable satin finish. This tank system comes with two 50-gallon fuel tanks, two 12-volt refueling pumps, two 12-foot hoses, two nozzles, two wire harnesses with dash-mounted power switches, mounting hardware, rollover valves, and locking fuel caps.

NOTE: This tank will come with two (2) standard (gas/diesel/kerosene) pumps by default. If you wish, you can change ONE of the two pumps to be for methanol/ethanol by using the pump selection drop down box above. In that case, you would have one (1) standard pump and one (1) methanol/ethanol pump.

Features

  • Recommended for drivers who own ATVs, boats, generators, landscape or farming equipment, or want the option to fuel their truck or additional vehicles

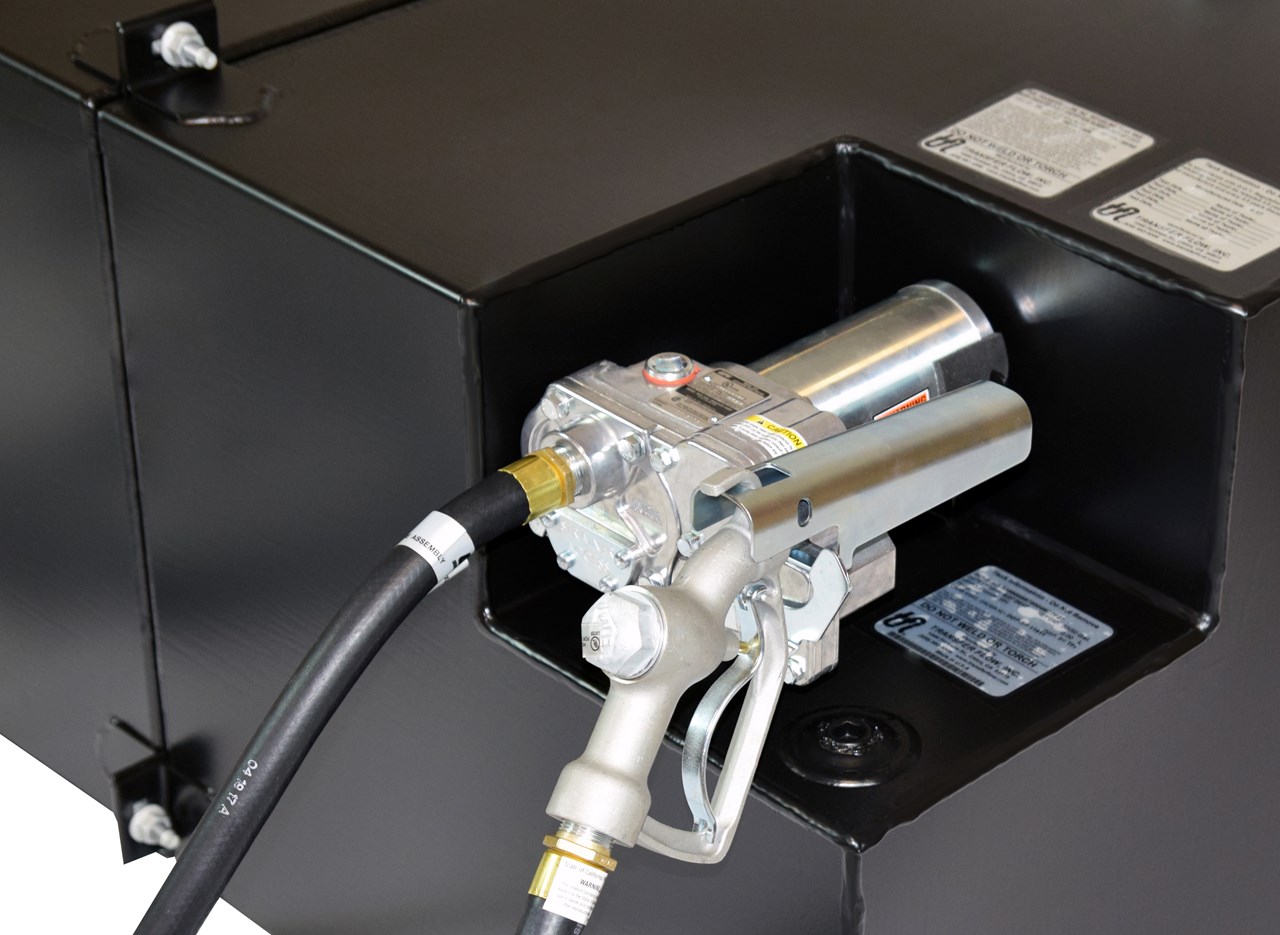

  • Comes with 12-volt GPI fuel pump, 12 ft. hose, nozzle, locking cap, wiring harness with cab-mounted power switch, and mounting hardware
  • DOT legal for gasoline, diesel, methanol/ethanol, and kerosene
  • Built from 12-gauge ReliaSteel, high-yield U.S. aluminized steel, for superior durability and strength
  • Powder coated black for durable satin finish
  • Easy-to-use hose-purge feature eliminates messes
  • Pumps up to 15 gallons per minute
  • Baffled to prevent fuel sloshing
  • 6 year, unlimited mile warranty
  • Made in the USA
  • If you want to get your hands dirty, you can easily install the fuel tank yourself. Our tank systems come with comprehensive step-by-step instructions to make installation a breeze. We also have installation videos on our YouTube channel to walk you through each step of the process.
Specifications

Fuel Type: Gasoline, Diesel, Kerosene, Methanol/Ethanol
Dimensions: 47.38"L x 31"W x 24.19"H
Fits: All Full-Size Trucks
NOTE: Product dimensions include 3" in width for the mounting brackets and 3" in height for the filler neck.

Optional Accessories

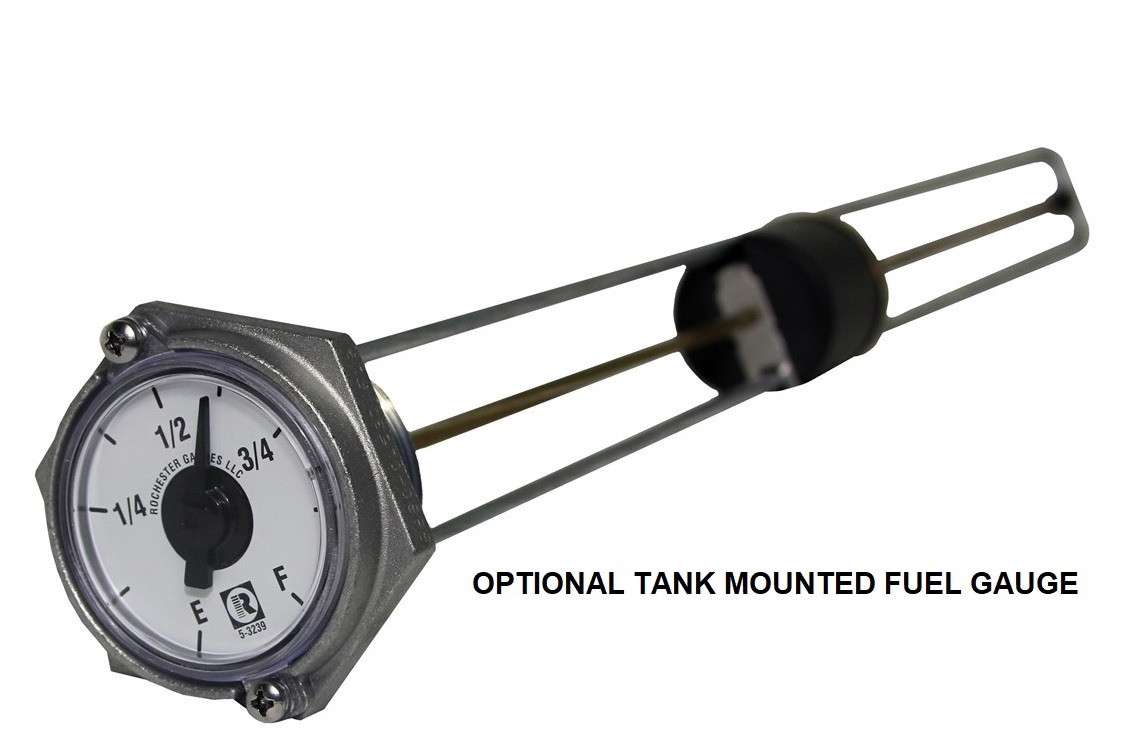

  • Tank Mounted Fuel Gauge: The Rochester spiral gauge incorporates a strong nickel-plated Neo magnet capable of driving a TwinSite sender which provides a direct, top reading fractional reading and also sends an electrical signal to a remote receiver

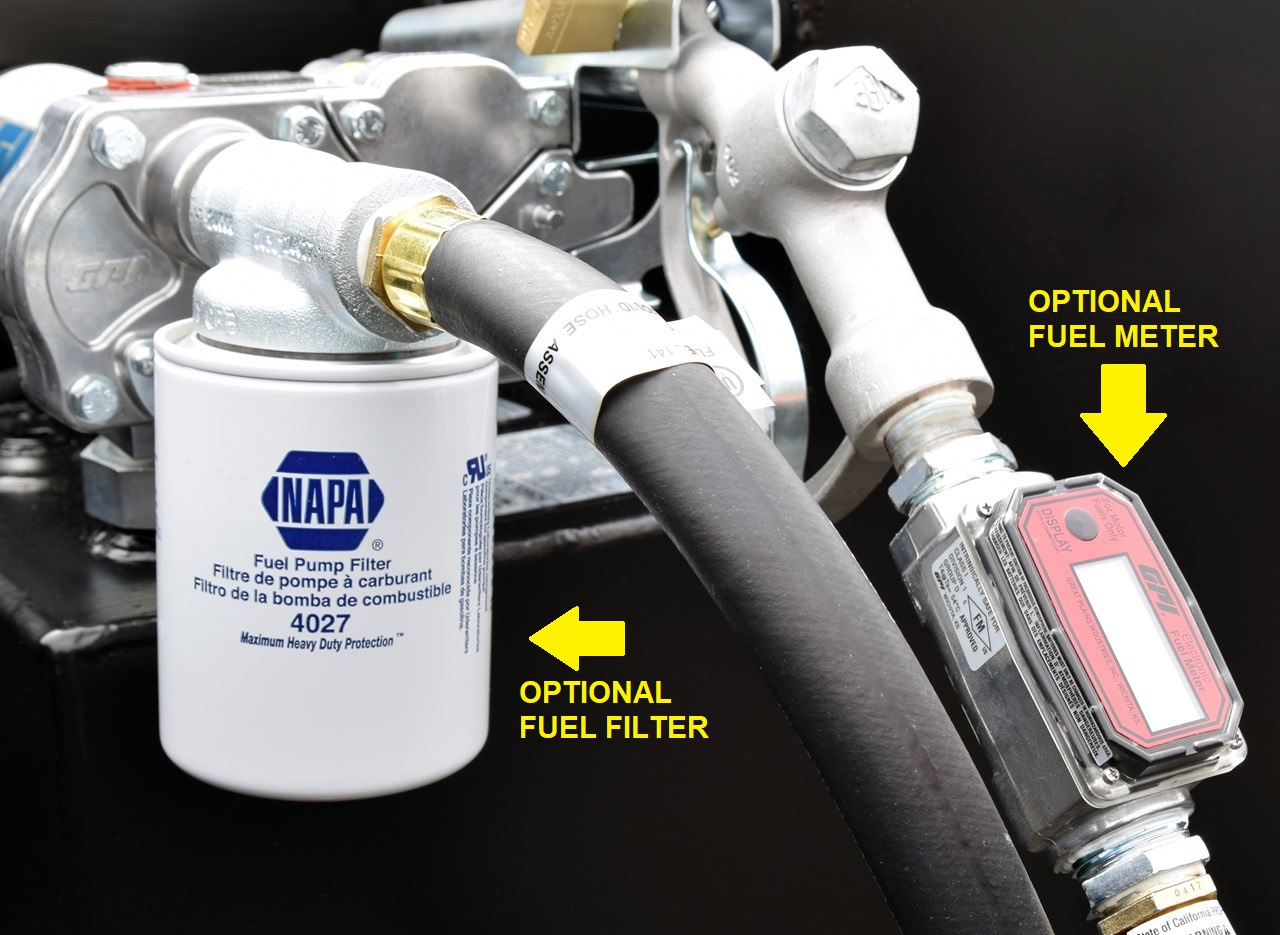

  • NAPA Inline Fuel Filter Kit: Diesel fuel contamination is becoming more and more common since the integration of biodiesel at fueling stations. Keep your engine running efficiently by installing an In-Line Fuel Filter Kit to remove contaminants from the fuel
  • GPI Electronic Fuel Meter: Add a GPI Electronic Fuel Meter to your refueling tank nozzle for easy monitoring of outgoing fuel flow. The fuel meter is made from durable cast aluminum and features an LCD screen that is accurate to +/-5% of the reading. The digital turbine meter is factory-calibrated for gasoline, diesel, or kerosene and is designed for flow rates from 3 to 30 GPM. It mounts easily to the end of a hose and includes two reducer bushings, pipe nipple, and two standard AAA batteries.

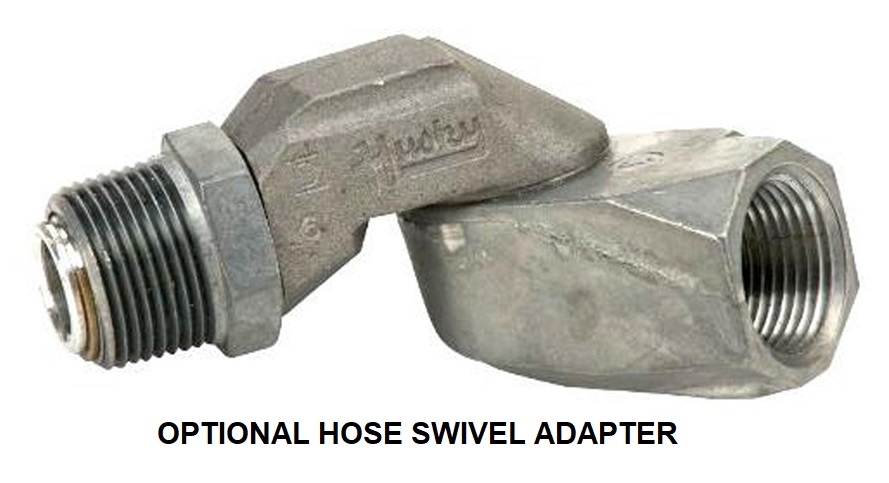

  • 3/4" Hose Swivel Adapter: Maximize the use of your refueling tank by installing a Husky Hose Swivel that allows for full articulation of the refueling nozzle and provides convenience in even the most obscure mounting situations



Transfer Flow
Transfer Flow Warranty Details:

Transfer Flow fuel systems and parts are covered by a Six (6) year unlimited mile warranty against defects in material and workmanship throughout the U.S. and Canada from the unit purchase date by the original purchaser for the original vehicle the unit was installed in.

Warranty will not apply when product failure is caused by conditions beyond the control of Transfer Flow, such as:
  • Malfunction due to incorrectly ordered product
  • Damage from misuse, negligence, or failure to provide reasonable and necessary maintenance
  • Damage caused by improper installation
  • Damaged caused in shipment or improper handling
  • Damage caused by contaminated fuels or fuel additives
  • Product modification or alteration
  • Products made from pickled and oil material are not covered under warranty for corrosion
Any action against Transfer Flow for breach of the warranty must be commenced within one (1) year after the cause of action has accrued.

Any action against Transfer Flow for breach of the warranty must be commenced in the Superior Court of Butte County, State of California.

For specific information regarding part exceptions, exclusions and limitations, warranty claim procedures, and federal regulatory provisions, please read our full warranty details on our warranty page.
