Fill-Rite FRH10020 1" x 20' (6 m) Fuel Transfer Hose

Model/SKU: FRH10020
Manufacturer Part # FRH10020

Description

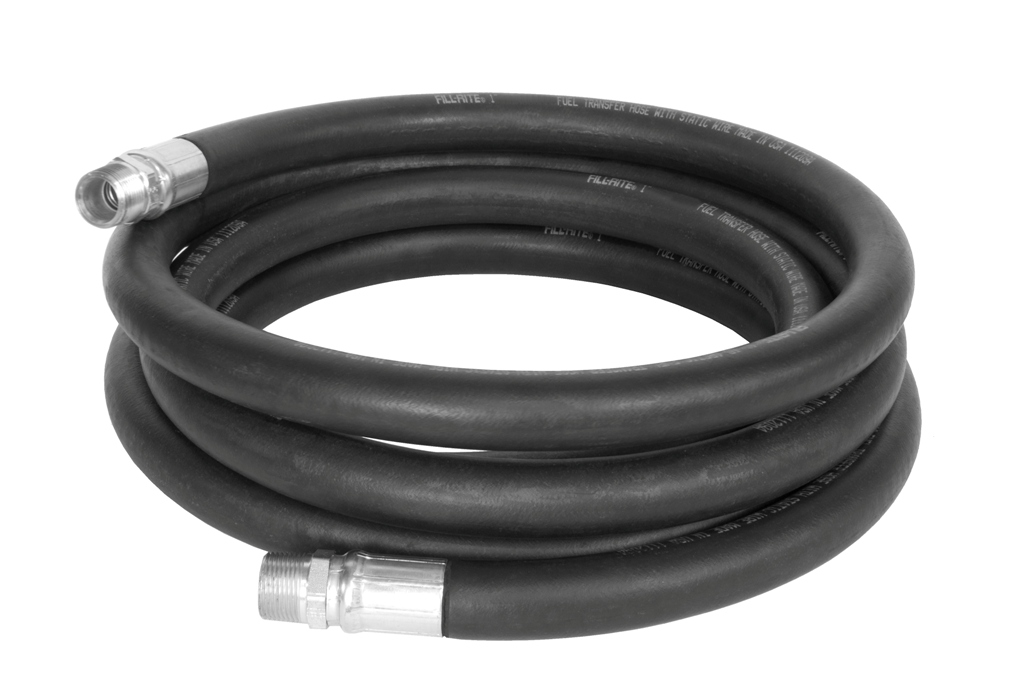

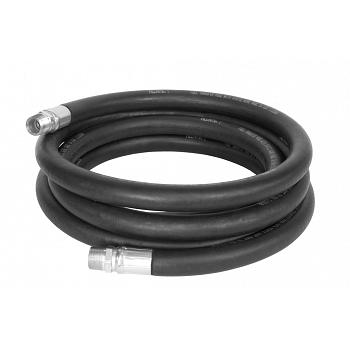

The Fill-Rite FRH10020 is a 1" by 20 foot (6 m) fuel transfer discharge hose with male NPT ends. It is made to connect a Fill-Rite or similar fuel pump to a nozzle on tanks, trucks, and fueling stations.

A nitrile inner tube stands up to everyday fuel service, and a rugged neoprene cover resists abrasion, weather, and outdoor wear. A stainless steel ground wire runs the full length of the hose to help control static buildup, and a 7 inch internal spring guard at the end reduces kinking so fuel keeps flowing. It is rated to 50 PSI (3.4 bar) and from -40 degrees F to 180 degrees F (-40 degrees C to 82 degrees C), and it carries a 1-year warranty. Manufactured in the USA.

Key Specs
  • Model: FRH10020
  • Size: 1" ID x 20' (6 m); 1.4" OD
  • Ends: 1" male NPT both ends
  • Construction: Nitrile inner tube, neoprene cover, 7" anti-kink spring guard, full-length stainless steel ground wire
  • Max working pressure: 50 PSI / 3.4 bar
  • Operating temperature: -40 degrees F to 180 degrees F (-40 degrees C to 82 degrees C)
  • Compatible fluids: Diesel, gasoline, kerosene, biodiesel up to B20, ethanol blends up to E15, and light oils
  • Assembled weight: 9.5 lbs
  • Warranty: 1 year
Common Uses

Replacing or extending the discharge hose on 1" fuel transfer pumps used with diesel, gasoline, kerosene, biodiesel up to B20, E15, or light oils on farm tanks, fleet tanks, and construction fueling setups.




Fill-Rite
Fill-Rite Warranty Details:

PDF  Fill-Rite Warranty
