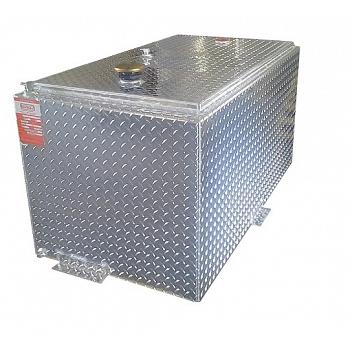

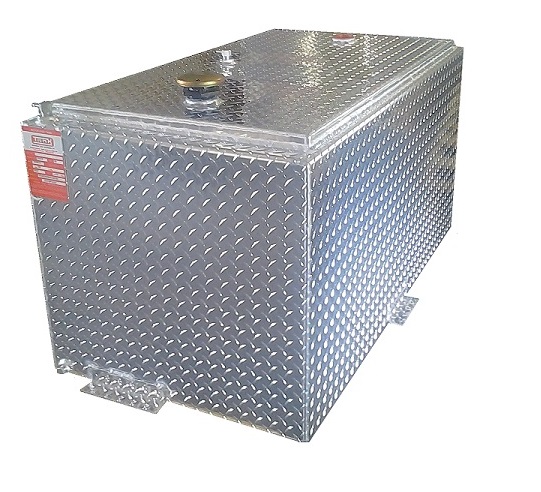

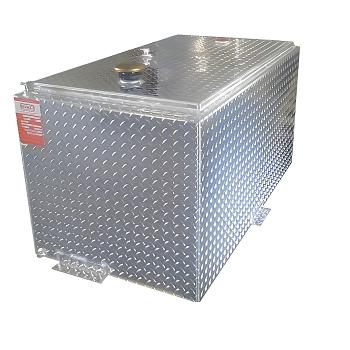

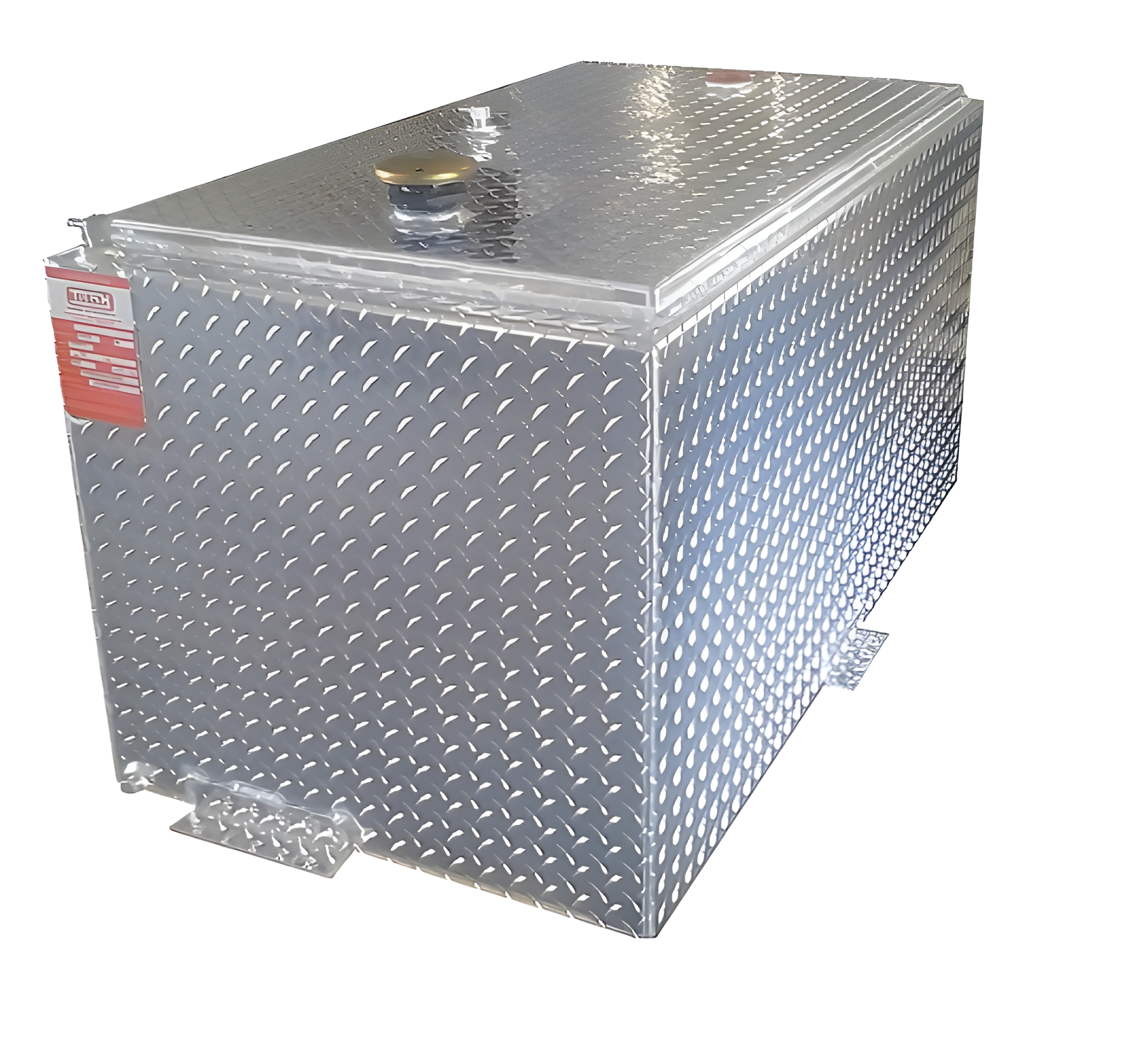

ATI 98 Gallon Double Wall Rectangle Refueling Tank

Add Lockable Tank Cap?:

Inside Cab Fuel Gauge?:

Powder Coat?:

Tank Mounted Fuel Gauge?:

Lead Time: 1-2 Weeks
Ships From: Florida

Quantity

Ask A Question

Description
Warranty

Model: ATI-TTR98DW
Manufacturer: Aluminum Tank Industries

The ATI 98 Gallon Double Wall Rectangle Shape Refueling Tank comes with the following features:

Double aluminum wall reinforcement
Special Permit issued by the US Department of Transportation
Legal for Gas, Diesel, Methanol, Kerosene, Aviation fuel and other liquids
Commercial grade lockable vent/prevent filler cap
Fully baffled to reduce movement of contents
Two-2" npt reinforced bungs for superior strength
3/8" npt drain
Hold down brackets
Pressure and leak detection test
Clean and free of debris inside and outside of the tank
1 year limited warranty

The rectangle Refueling Transfer Tank is the most popular in the lineup. Our standard fuel tanks range from 38 to 110 gallons. The Two- 2" bungs allow for reversing the fuel fill cap and fuel transfer pump to the side you prefer best. The rectangle fuel tank is also the ideal shape if you require a double wall refueling transfer tank for you specific application. If you want to keep most of your bed space check out our more slender aluminium fuel tank designs, some only require 9".

Be sure to add the optional tank mounted fuel gauge or cabin mounted fuel gauge to keep track of your fuel levels!

Please be aware that tanks/toolboxes may have mounting tabs that extend the dimensions of the tank by 1 1/2 inches on each side. This is NOT accounted for when viewing the displayed dimensions of the tanks/toolboxes. In addition, the fuel cap adds an additional 2 1/2 inches to the total height of the tank. Please be sure to account for this when measuring for fitment of your tank/toolbox.

Detailed Information

Refueling Tank Installation Instructions

Need a custom tank? No problem! Please click here to select a custom tank style and provide us with your requirements!

ATI Fuel Tank Sizes

Aluminum Tank Industries (ATI) Warranty Details:

Aluminum Tank Industries, Inc. warrants all products to be free of defects in material or workmanship for a period of 1 year from invoice ship date from our warehouse. Severe Series refueling tanks are covered for 5 years. Standard duty tanks are designed for use with transfer pumps up to 30 lbs. Installing a pump over 30 lbs on a standard duty tank will void warranty. A Severe Series tank is required if using a transfer pump over 30 lbs. If upon our inspection we deem the item to be defective, Aluminum Tank Industries, Inc. will determine whether to repair or replace the defective item. It is the customers responsibility to ship the item to Aluminum Tank Industries, Inc. No cost for labor, installation, or missing contents will be reimbursed. Damages due to shipping and handling, improper installation, abuse - intentional or accidental, or normal wear and tear are not covered by this warranty. Warranty is void if the tank has been altered.
