Fill-Rite FR1210H 12V Fuel Transfer Pump (Manual Nozzle, Discharge Hose, Suction Pipe) - 15 GPM

Model/SKU: FR1210H
Manufacturer Part # FR1210H

Description

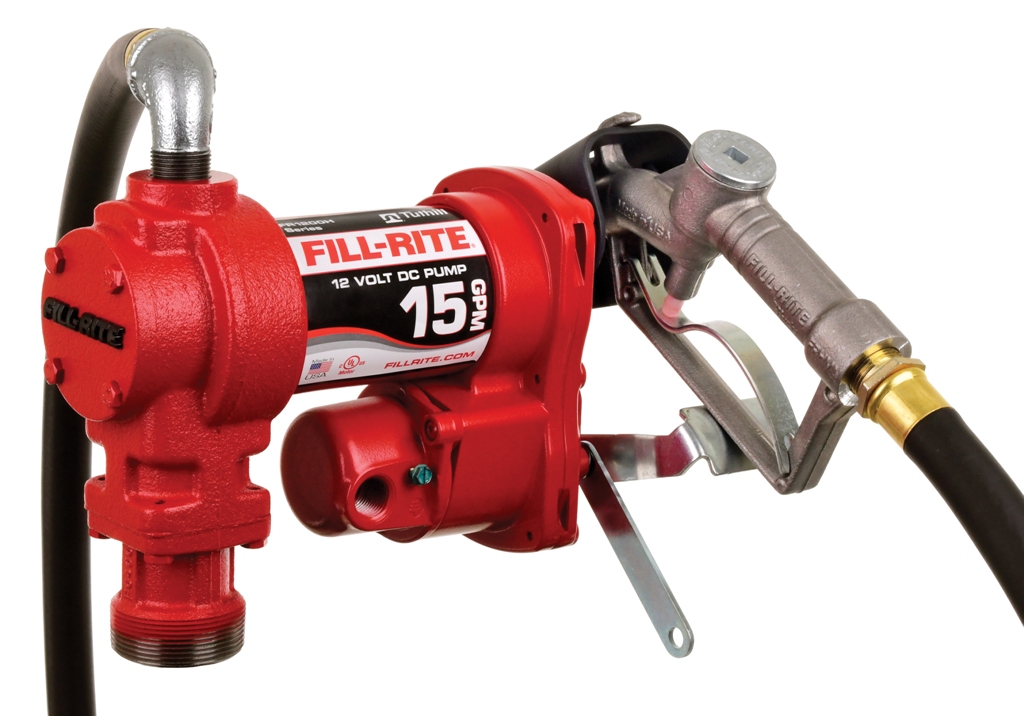

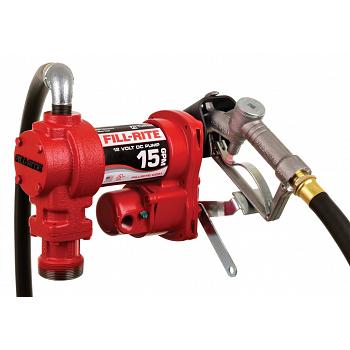

The Fill-Rite FR1210H is a 12V DC, 15 GPM (57 LPM) heavy-duty rotary vane fuel transfer pump packaged with a 3/4 inch cast aluminum manual nozzle, a 3/4 inch by 12 foot discharge hose with static ground wire, a 20 to 34-1/2 inch steel telescoping suction pipe, and an 18 foot 12-gauge power cable.

Compatible fluids are diesel, kerosene, biodiesel up to B20, gasoline up to E15, and mineral spirits. The 0.25 HP motor is thermally protected and rated 20 A, with a 30 minutes on / 30 minutes off duty cycle, 8 feet of suction lift, and 37 feet of discharge head (16 PSI). The junction box rotates 180 degrees for wiring. It is backed by a Limited Lifetime warranty.

Key Specs
  • Model: FR1210H
  • Max flow rate: 15 GPM / 57 LPM
  • Power: 12V DC, 20 A; 0.25 HP thermally protected motor; 18' 12-gauge cable with bare leads
  • Duty cycle: 30 min on / 30 min off
  • Inlet / outlet: 1 inch female NPT inlet / 0.75 inch female NPT outlet
  • Mounting: 2 inch NPT bung mount
  • Suction lift / discharge: 8' suction lift; 37' discharge head (16 PSI)
  • Operating temperature: -15 to 150 degrees F
  • Compatible fluids: Diesel, kerosene, biodiesel up to B20, gasoline up to E15, and mineral spirits

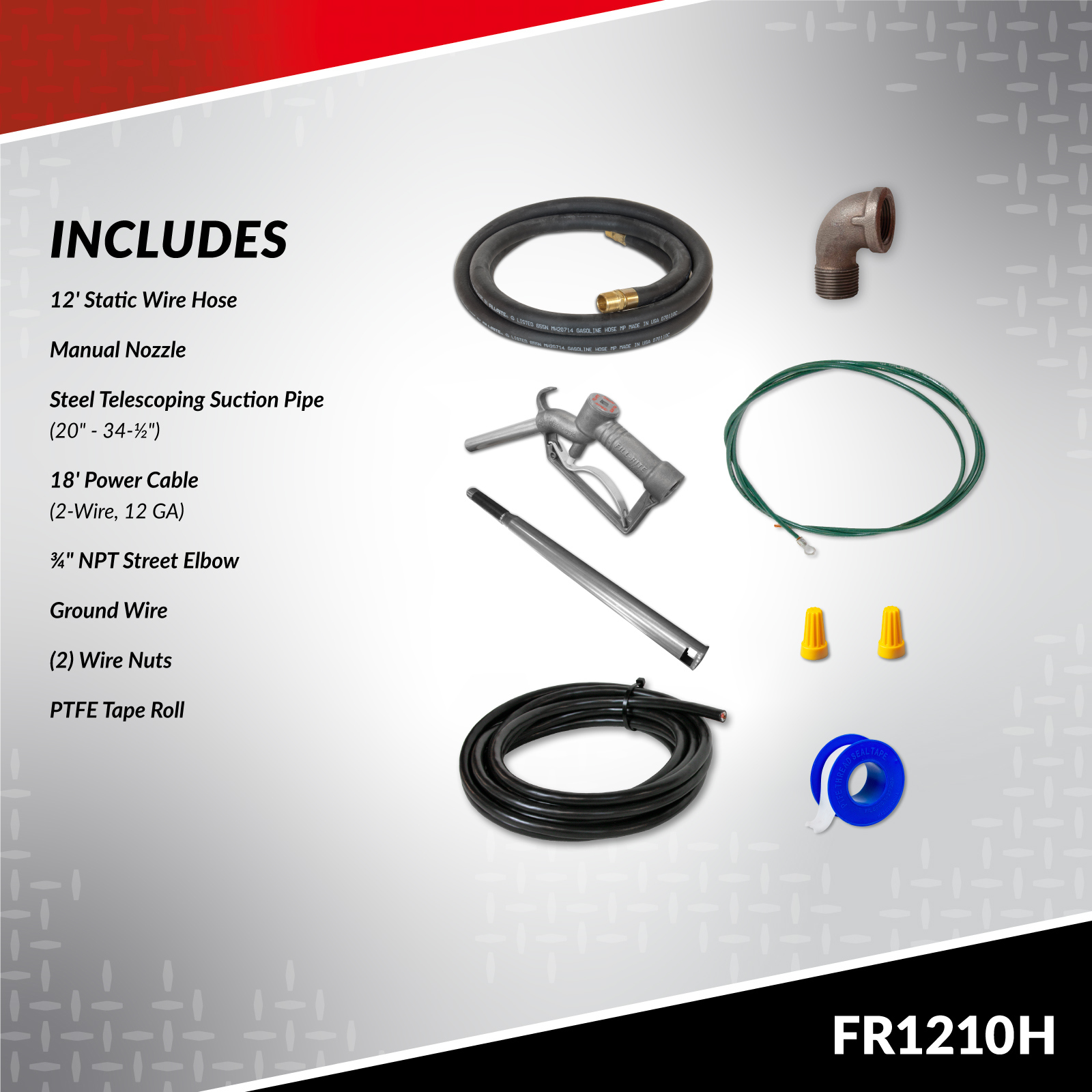

  • Included: 3/4" cast aluminum manual nozzle, 3/4" x 12' hose with static ground wire, 20"-34-1/2" steel telescoping suction pipe, 18' 12-ga power cable, nozzle boot, PTFE tape, 3/4" NPT street elbow, ground wire, cable gland, wire nuts, locking nut, and fastener
  • Assembled weight: 29.1 lbs
  • Warranty: Limited Lifetime
Common Uses

12V transfer tanks on trucks and trailers that need a 15 GPM Fill-Rite pump with a manual nozzle, hose, and suction pipe in one kit.
