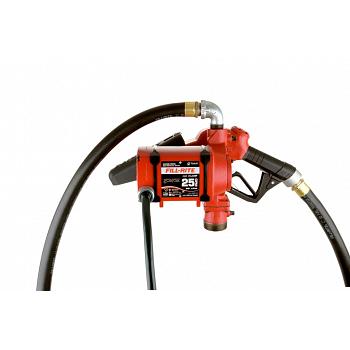

Fill-Rite NX25-DDCNB-AA 12V or 24V Fuel Transfer Pump (Auto Nozzle, Discharge Hose) - 25 GPM  1

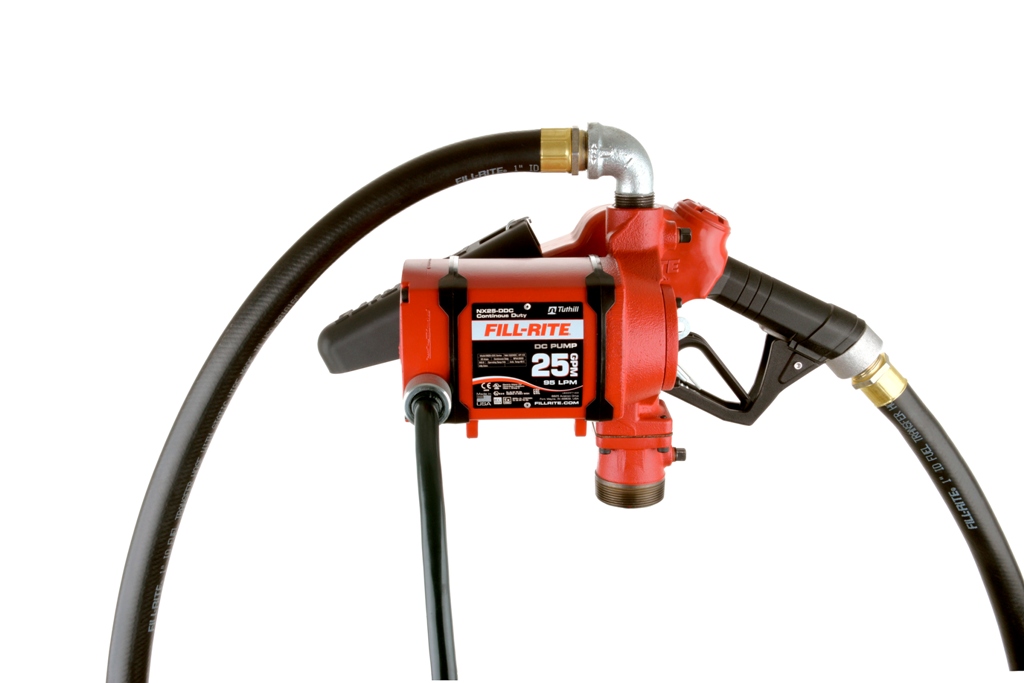

Fill-Rite NX25-DDCNB-AA 12V or 24V Fuel Transfer Pump (Auto Nozzle, Discharge Hose) - 25 GPM  2
Fill-Rite
Lead Time:  5-14 Days
Ships From: IN

Quantity

See Our Reviews!
Customer Reviews

Share this page!
Twitter

Fill-Rite NX25-DDCNB-AA 12V or 24V Fuel Transfer Pump (Auto Nozzle, Discharge Hose) - 25 GPM

Model/SKU: NX25-DDCNB-AA
Manufacturer Part # NX25-DDCNB-AA

Description

The Fill-Rite NX25-DDCNB-AA is a 12V or 24V DC, 25 GPM continuous-duty fuel transfer pump that bung-mounts on a tank. The AA kit includes a 1 inch by 18 foot discharge hose with a static ground wire, a 1 inch ultra high-flow automatic diesel nozzle with a green cover, a 20 foot power cable with battery clips, and the installation parts needed to put it on a tank.

A brushless variable-speed motor is built for continuous-duty fuel transfer, so you can run it through a workday without a 30 minutes on / 30 minutes off rest cycle. Fill-Rite rates the pump at a true 25 GPM (94 LPM) at the nozzle, with 12 feet of suction lift and 48 feet of discharge head (21 PSI). The 12V/24V motor draws up to 30 A and connects with a 20 foot, 10 gauge removable power cable and battery clips. The cast iron rotary vane pump is powder coated for outdoor use, has thermal protection, and is self-priming. It carries a Limited Lifetime warranty and is listed with cULus, ATEX, IECEx, and CE certifications. The 2 inch NPT bung adapter uses a 1.25 inch female NPT inlet, and the pump outlet is 1 inch female NPT.

Key Specs
  • Model: NX25-DDCNB-AA
  • Mounting: 2" NPT bung mount
  • Connections: 1.25" female NPT inlet, 1" female NPT outlet
  • Max flow rate: 25 GPM / 94 LPM
  • Power: 12V/24V DC, 30 A; 0.33 HP (1/3 HP) brushless variable-speed motor; 20' 10 gauge cable with battery clips
  • Duty cycle: Continuous duty
  • Suction lift / discharge: 12' suction lift; 11 in. Hg dry vacuum; 48' discharge head (21 PSI)
  • Operating temperature: -40 degrees F to 125 degrees F
  • Compatible fluids: Diesel, kerosene, biodiesel up to B20, gasoline up to E15, and mineral spirits
  • Housing: Cast iron, powder-coated
  • Certifications: cULus, ATEX, IECEx, and CE
  • Warranty: Limited Lifetime
  • Included: 1" x 18' hose with static ground wire, 1" ultra high-flow automatic diesel nozzle (green), 20' 10 gauge power cable with battery clips, nozzle boot, PTFE tape, 1" NPT street elbow, and locking nut
  • Assembled weight: 42.4 lbs
Common Uses

Mobile or remote 25 GPM fueling from a 12V or 24V battery on a service truck, skid tank, or job-site tank, with the hose, automatic nozzle, and power cable included.



Detailed Information

PDF  Sales Sheet

PDF  Sales Brochure

PDF  Technical Data Sheet

PDF  Product Manual
