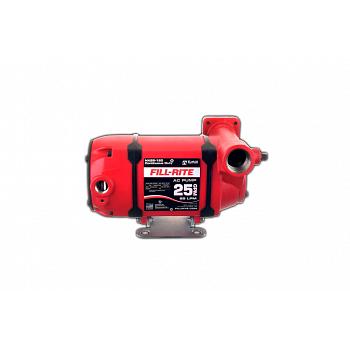

Fill-Rite NX25-120NF-PX 120V Fuel Transfer Pump (Foot Mounted, Pump Only) - 25 GPM

Model/SKU: NX25-120NF-PX
Manufacturer Part # NX25-120NF-PX

Description

The Fill-Rite NX25-120NF-PX is a 115V AC, 25 GPM continuous-duty fuel transfer pump sold as a foot-mount pump with installation fittings and no hose or nozzle. Use it when you already have a hose and nozzle, or when you want to plumb a custom foot-mounted system.

A brushless variable-speed motor is built for continuous-duty fuel transfer, so you can run it through a workday without a 30 minutes on / 30 minutes off rest cycle. Fill-Rite rates the pump at a true 25 GPM (94 LPM) at the nozzle, with 12 feet of suction lift and 48 feet of discharge head (25 PSI). The cast iron rotary vane pump is powder coated for outdoor use, has thermal (electronic) protection, and is self-priming. It carries a Limited Lifetime warranty. Inlet and outlet are both 1 inch female NPT. Installation fittings include PTFE tape, a 1 inch NPT street elbow, and a locking nut.

Key Specs
  • Model: NX25-120NF-PX
  • Mounting: Foot mount
  • Connections: 1" female NPT inlet and outlet
  • Max flow rate: 25 GPM / 94 LPM
  • Power: 115V AC, 3.5 A; 0.33 HP (1/3 HP) brushless variable-speed motor; 16 gauge bare leads
  • Duty cycle: Continuous duty
  • Suction lift / discharge: 12' suction lift; 11 in. Hg dry vacuum; 48' discharge head (25 PSI)
  • Operating temperature: -40 degrees F to 125 degrees F
  • Compatible fluids: Diesel, kerosene, biodiesel up to B20, gasoline up to E15, and mineral spirits
  • Housing: Cast iron, powder-coated
  • Strainer: 20 x 20 x .008" mesh
  • Included: PTFE tape, 1" NPT street elbow, and locking nut (pump only; no hose or nozzle)
  • Certifications: cULus
  • Assembled weight: 21.9 lbs
  • Warranty: Limited Lifetime
Common Uses

Foot-mounting a 115V AC 25 GPM continuous-duty pump on a tank or pedestal when you will add your own hose and nozzle, or when replacing the pump on an existing NX25-120 foot-mount installation.
