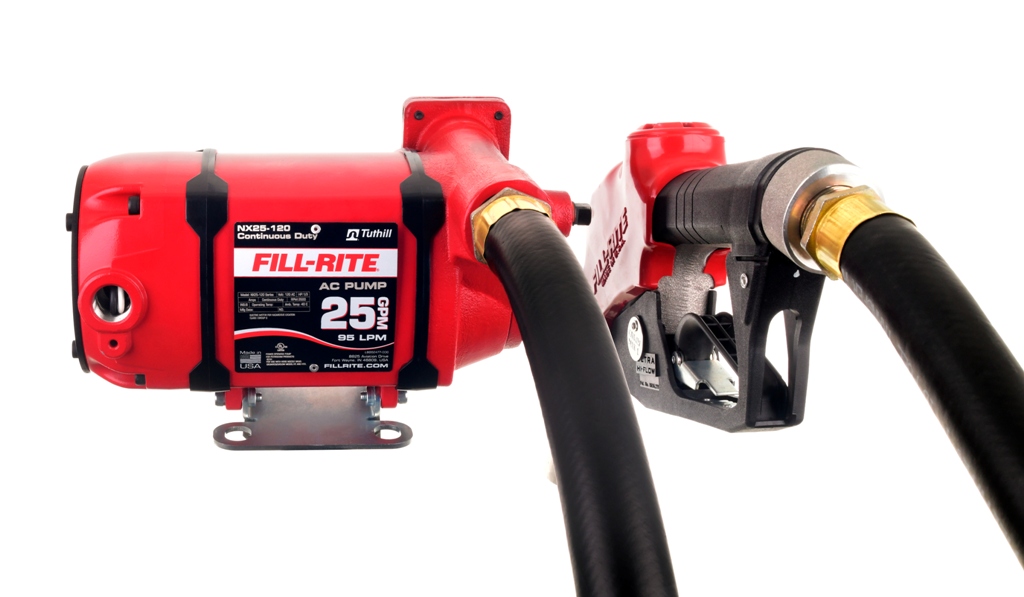

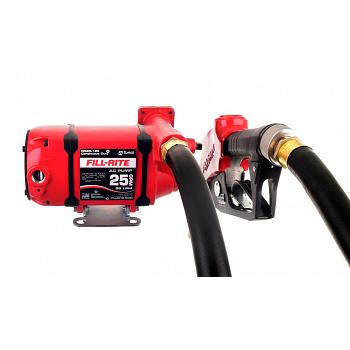

Fill-Rite NX25-120NF-AA 120V Fuel Transfer Pump (Foot Mounted, Auto Nozzle, Hose) - 25 GPM

Model/SKU: NX25-120NF-AA
Manufacturer Part # NX25-120NF-AA

Description

The Fill-Rite NX25-120NF-AA is a 115V AC, 25 GPM continuous-duty fuel transfer pump with a foot mount for tanks, pedestals, or a pad. The AA kit includes a 1 inch by 18 foot UL Listed discharge hose with a static ground wire, a 1 inch ultra high-flow automatic diesel nozzle with a green cover, and basic installation fittings.

A brushless variable-speed motor is built for continuous-duty fuel transfer, so you can run it through a workday without a 30 minutes on / 30 minutes off rest cycle. Fill-Rite rates the pump at a true 25 GPM (94 LPM) at the nozzle, with 12 feet of suction lift and 48 feet of discharge head (25 PSI). The cast iron rotary vane pump is powder coated for outdoor use, has thermal (electronic) protection, and is self-priming. It carries a Limited Lifetime warranty. Inlet and outlet are both 1 inch female NPT, which makes plumbing straightforward on a foot-mounted installation.

Key Specs
  • Model: NX25-120NF-AA
  • Mounting: Foot mount
  • Connections: 1" female NPT inlet and outlet
  • Max flow rate: 25 GPM / 94 LPM
  • Power: 115V AC, 3.5 A; 0.33 HP (1/3 HP) brushless variable-speed motor; 16 gauge bare leads
  • Duty cycle: Continuous duty
  • Suction lift / discharge: 12' suction lift; 11 in. Hg dry vacuum; 48' discharge head (25 PSI)
  • Operating temperature: -40 degrees F to 125 degrees F
  • Compatible fluids: Diesel, kerosene, biodiesel up to B20, gasoline up to E15, and mineral spirits
  • Housing: Cast iron, powder-coated
  • Strainer: 20 x 20 x .008" mesh
  • Included: 1" x 18' UL Listed hose with static ground wire, 1" ultra high-flow automatic diesel nozzle (green), PTFE tape, 1" NPT street elbow, and locking nut
  • Certifications: cULus
  • Assembled weight: 21.4 lbs
  • Warranty: Limited Lifetime
Common Uses

Foot-mounting a 115V AC 25 GPM continuous-duty pump on a tank, island, or pedestal in a shop or yard, with the hose and automatic nozzle included.



Detailed Information

PDF  Sales Sheet

PDF  Technical Data Sheet

PDF  Product Manual
