Rhino 180 Gallon Gravity Feed Tank System 1
Rhino 180 Gallon Gravity Feed Tank System 2
Rhino Tuff Tanks
Lead Time:  3-5 Weeks
Ships From: Minnesota

Quantity

Customer Reviews
Share this page!
Twitter

Model: RTT-6800
Manufacturer: Rhino Tuff Tanks

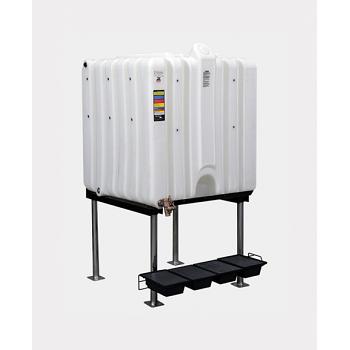

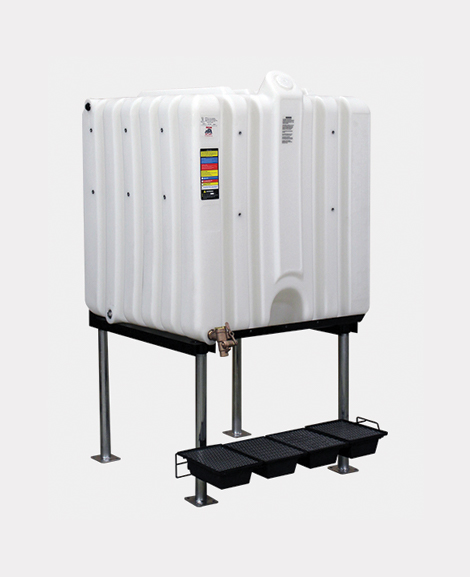

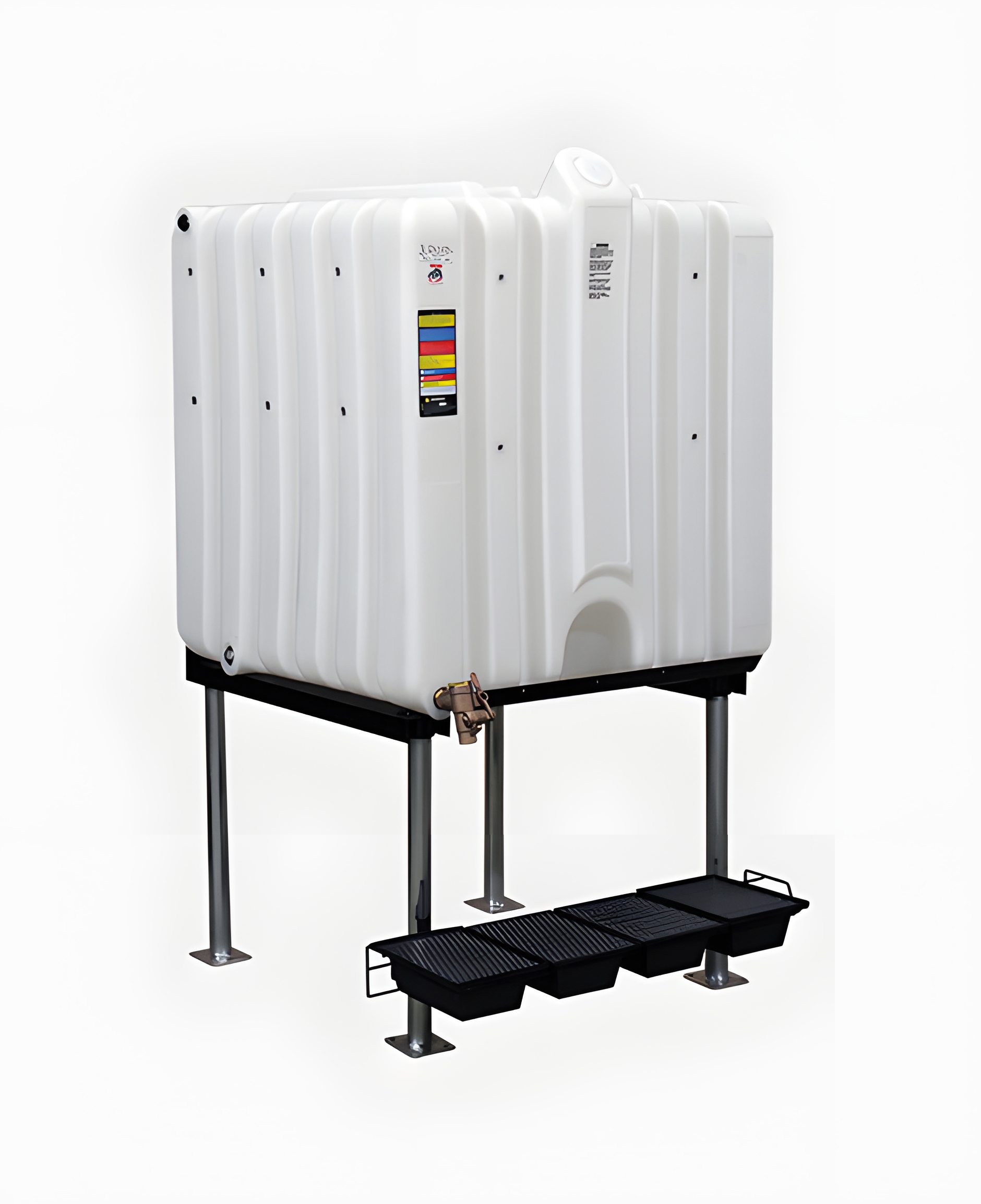

This is the Rhino 180 Gallon Gravity Feed Tank System.

All Packages Include:
  • Stackable tanks
  • Tank stand with 24" legs
  • Drip tray kit
  • Brass spring valves
  • Accessory package

Specifications:
  • Capacity: 1 x 180 Gallon Tanks (180 Gallons)
  • Assembled Dimensions: 36"L x 42"W x 68"H
  • 2" top opening for pump or vent application
  • 1" opening for desiccant breather or remote fill
  • Convenient 2" center fill opening
  • Interlocking top and bottom ridges for secure stacking
  • Six molded-in brass inserts allow for side mount pump plate to be attached
  • Mold-in graphic and identification label
  • Industry's only molded-in brass 1" NPT bushing at drain opening
  • Molded-in site gauge and semi transparent material, eliminates the need for external site gauges
  • Natural virgin high density polyethylene construction
  • Stackable in any combo - no converting brackets needed
  • See your exact fluid levels
  • Standard 3' x 3' footprint among all sizes


Detailed Information

PDF  Gravity Feed System Assembly Instructions

Video  Gravity Feed System Assembly Video
Rhino Tuff Tanks
Rhino Tuff Tanks Warranty Details:

Rhino Tuff Tanks offers a limited lifetime warranty on all of their products.

Rhino Tuff Tanks (RTT) stands behind all of our quality products and we will repair or replace at our discretion, any product found to be defective due to a manufacturing defect. The manufacturers warranty does not apply to any products that have been subjected to an accident, adjustment, improper installation, misapplication, misuse, modification, neglect, repair, including but not limited to improper maintenance, or use of unauthorized parts or attachments.
