Rhino 120/225 Gallon Gravity Feed Tank System

Lead Time: 3-5 Weeks
Ships From: Minnesota

Quantity

Ask A Question

Description
Warranty

Model: RTT-6420
Manufacturer: Rhino Tuff Tanks

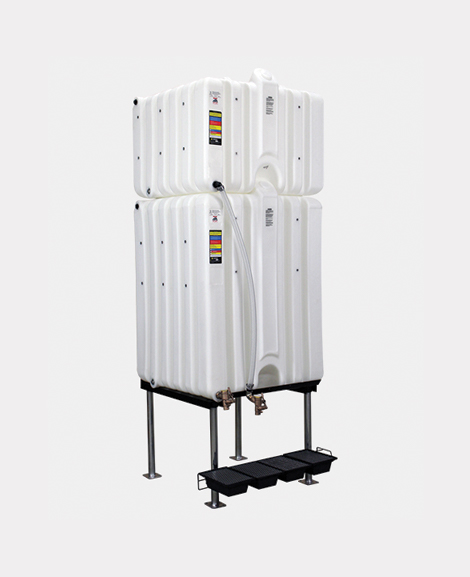

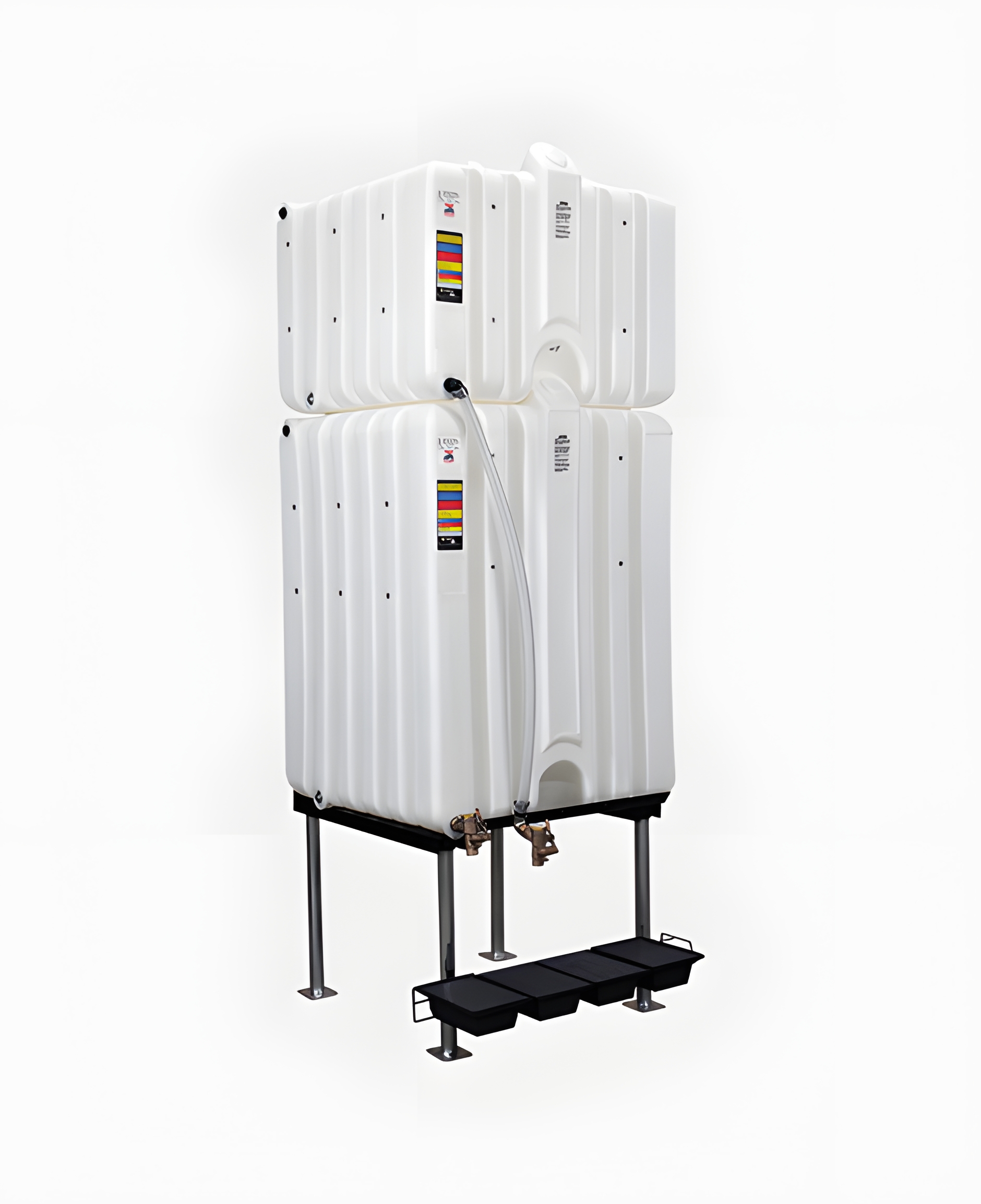

This is the Rhino 120/225 Gallon Gravity Feed Tank System.

All Packages Include:

Stackable tanks
Tank stand with 24" legs
Drip tray kit
Brass spring valves
Accessory package

Specifications:

Capacity: 1 x 225 Gallon Tank and 1 x 120 Gallon Tank (345 Gallons)
Assembled Dimensions: 36"L x 42"W x 105"H
2" top opening for pump or vent application
1" opening for desiccant breather or remote fill
Convenient 2" center fill opening
Interlocking top and bottom ridges for secure stacking
Six molded-in brass inserts allow for side mount pump plate to be attached
Mold-in graphic and identification label
Industry's only molded-in brass 1" NPT bushing at drain opening
Molded-in site gauge and semi transparent material, eliminates the need for external site gauges
Natural virgin high density polyethylene construction
Stackable in any combo - no converting brackets needed
See your exact fluid levels
Standard 3' x 3' footprint among all sizes

Detailed Information

Gravity Feed System Assembly Instructions

Gravity Feed System Assembly Video

Rhino Tuff Tanks Warranty Details:

Rhino Tuff Tanks offers a limited lifetime warranty on all of their products.

Rhino Tuff Tanks (RTT) stands behind all of our quality products and we will repair or replace at our discretion, any product found to be defective due to a manufacturing defect. The manufacturers warranty does not apply to any products that have been subjected to an accident, adjustment, improper installation, misapplication, misuse, modification, neglect, repair, including but not limited to improper maintenance, or use of unauthorized parts or attachments.
