Model: RTT-6111
Manufacturer: Rhino Tuff Tanks

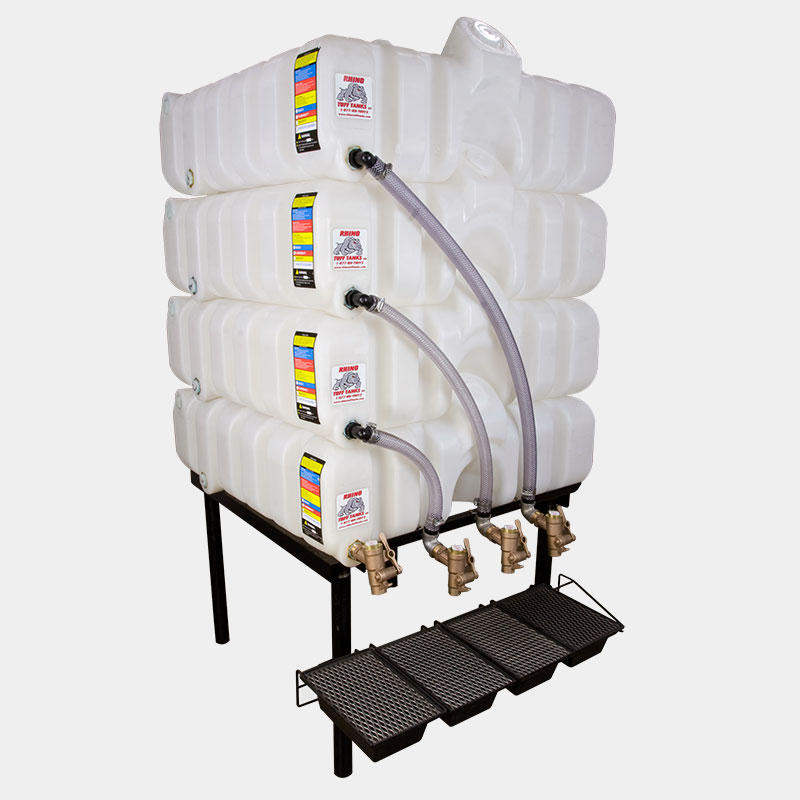

This is the Rhino 45/45/45/45 Gallon Horizontal Gravity Feed Tank System.

All Packages Include:
  • Stackable tanks
  • Tank stand with 24" legs
  • Drip tray kit
  • Brass spring valves
  • Accessory package

Specifications:
  • Capacity: 4 x 45 Gallon Tanks (180 Gallons)
  • Assembled Dimensions: 36"L x 42"W x 68"H
  • 2" top opening for pump or vent application
  • 1" opening for desiccant breather or remote fill
  • Convenient 2" center fill opening
  • Interlocking top and bottom ridges for secure stacking
  • Six molded-in brass inserts allow for side mount pump plate to be attached
  • Mold-in graphic and identification label
  • Industry's only molded-in brass 1" NPT bushing at drain opening
  • Molded-in site gauge and semi transparent material, eliminates the need for external site gauges
  • Natural virgin high density polyethylene construction
  • Stackable in any combo - no converting brackets needed
  • See your exact fluid levels
  • Standard 3' x 3' footprint among all sizes


Detailed Information

PDF  Gravity Feed System Assembly Instructions

Video  Gravity Feed System Assembly Video
