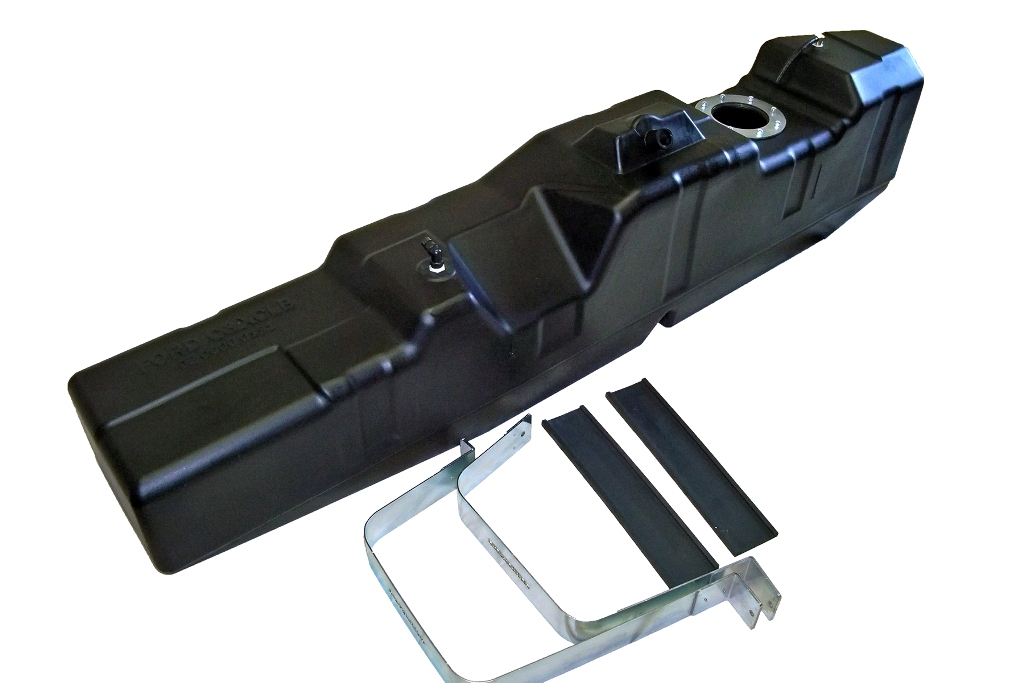

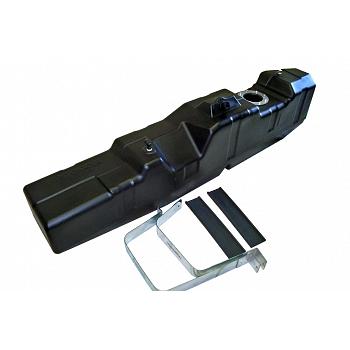

60 Gallon, extra heavy duty cross-linked polyethylene fuel tank. Tank comes complete with powder-coated or plated steel mounting strap set, extruded rubber mounting bushings, vent hoses, rollover safety vent valve, seals and required clamps.
FREE SHIPPING special for this Titan Fuel Tank! (Lower 48 states only)
Tank features exclusive low fuel trap design. For Crew or Extended Cab equipped vehicles with 8.0 ft. Tank hangs approximately only 1.5" below bottom of the stock fuel tank shield bracket (on vehicles so equipped). Tank is approximately 2.5" deeper than the stock OEM tank.
For model years 1999-2007.
For F250 HD, F350 HD, and F450 HD Models with Power Stroke Engines.
Please see link below for shield option.
The TITAN tank is 22 gallons larger at 60 gallons. The stock tank is only 38 gallons.
Note: Some 2008-2010 vehicles may need the 029902 Ford Fuel Line Extension Kit.
TITAN Fuel Tanks Direct Replacement, Mid-Ship Fuel Tanks are manufactured to use the trucks stock/original equipment fuel sending unit. The trucks stock sending unit is removed from the stock tank and mounted into the TITAN tank. They are a direct fit, there are no modifications needed.
With use of the stock sending unit, the trucks analog fuel gauge will read correct and accurate with the TITAN tank.
