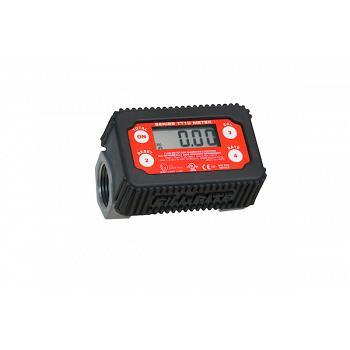

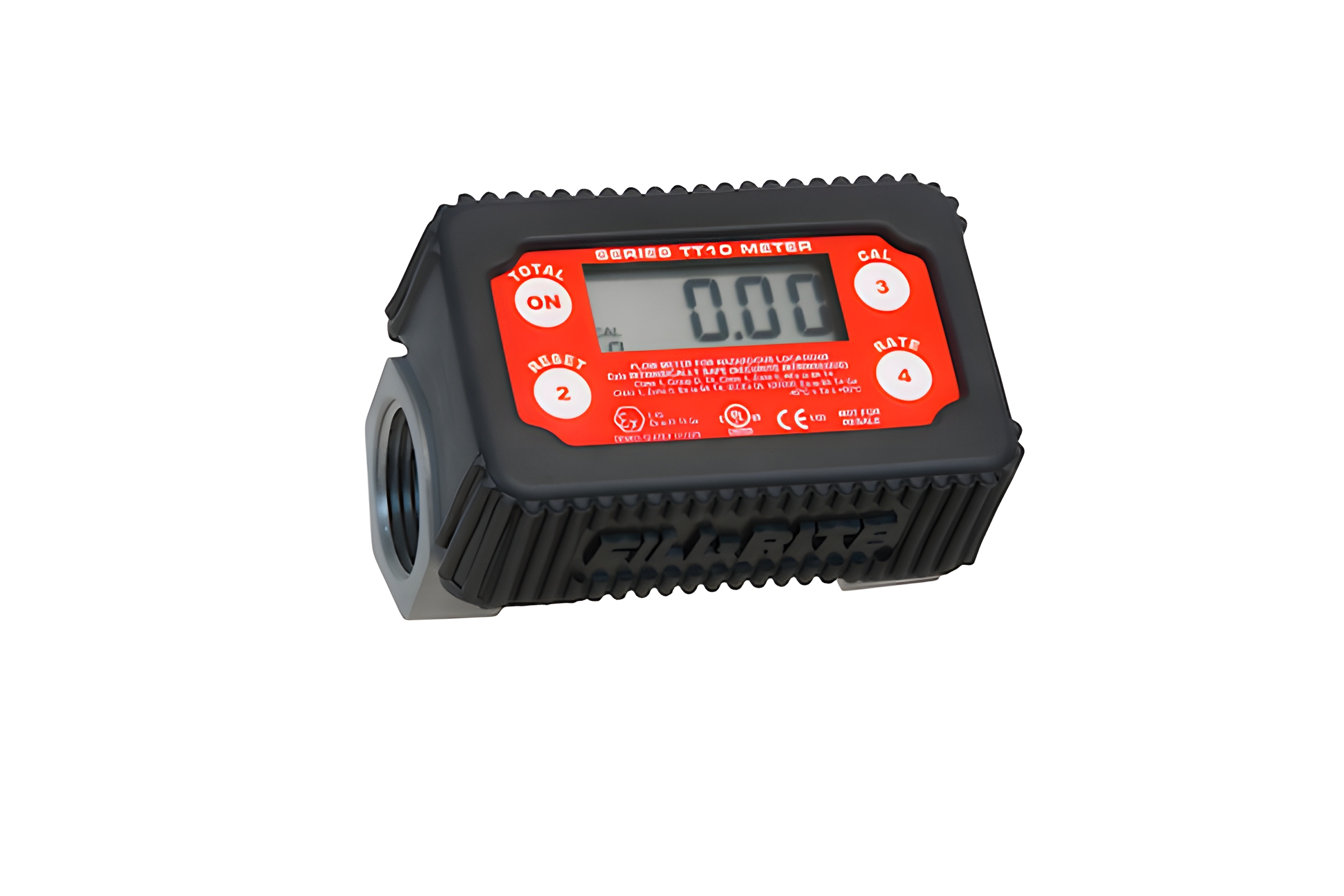

The Fill-Rite TT10AB is a compact 1 inch in-line digital turbine meter with a aluminum body and BSPP threads, made to measure gasoline, diesel, and other light fuels from 2 to 35 GPM (8 to 132 LPM). It can be installed right at the pump or at the end of the discharge hose near the nozzle.
After field calibration it measures within plus or minus 1% with 0.30% repeatability, and 20 preset calibration factors make setup quick for common fluids. The 4-digit LCD rotates 180 degrees and reads in ounces, pints, quarts, liters, gallons, or a custom unit, while a non-resettable totalizer keeps its count even when the batteries are changed. An external rubber boot protects the meter from impacts, and it runs on 2 AA alkaline batteries (included). The meter is intrinsically safe for hazardous locations and carries CE, cULus, ATEX, and IECEx approvals with a 2-year warranty. Not for fluid resale.
Adding a compact digital meter to 1 inch BSPP fuel transfer pumps on farm, fleet, and job site tanks. Not for retail fuel sales.
