Fill-Rite FR610HA 115V Fuel Transfer Pump (Unleaded Auto Nozzle, Hose, Suction Pipe) - 15 GPM

Model/SKU: FR610HA
Manufacturer Part # FR610HA

Description

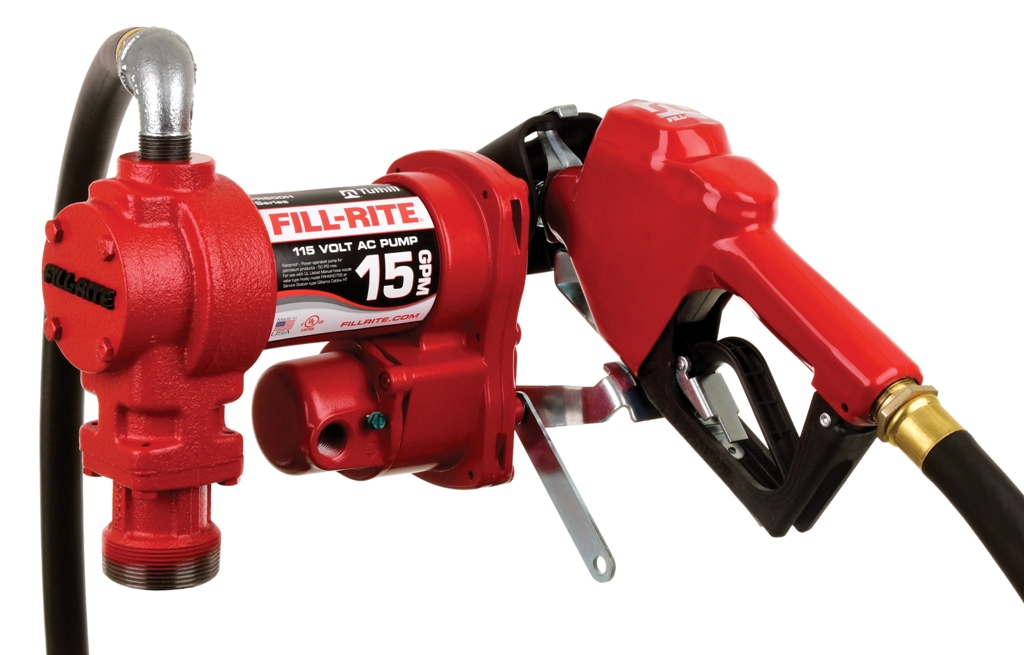

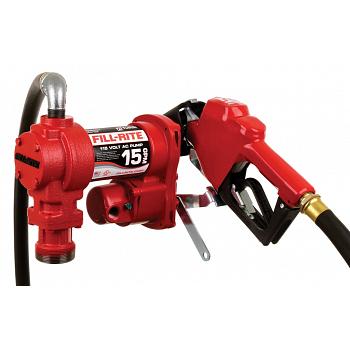

The Fill-Rite FR610HA is a 115V AC, 15 GPM (57 LPM) heavy-duty rotary vane fuel transfer pump packaged with a 3/4 inch automatic unleaded nozzle, a 3/4 inch by 12 foot UL listed discharge hose with static ground wire, and a 20 to 34-1/2 inch steel telescoping suction pipe.

Compatible fluids are diesel, gasoline, kerosene, biodiesel up to B20, gasoline up to E15, and mineral spirits. The thermally protected motor is rated 0.17 HP and 2 A on 115V AC, with a 30 minutes on / 30 minutes off duty cycle, 8 feet of suction lift, and 37 feet of discharge head (16 PSI). Operating temperature is -17 to 104 degrees F. It is backed by a Limited Lifetime warranty.

Key Specs
  • Model: FR610HA
  • Max flow rate: 15 GPM / 57 LPM
  • Power: 115V AC, 2 A; 0.17 HP thermally protected motor
  • Duty cycle: 30 min on / 30 min off
  • Inlet / outlet: 1 inch female NPT inlet / 0.75 inch female NPT outlet
  • Mounting: 2 inch NPT bung mount
  • Suction lift / discharge: 8' suction lift; 37' discharge head (16 PSI)
  • Operating temperature: -17 to 104 degrees F
  • Compatible fluids: Diesel, gasoline, kerosene, biodiesel up to B20, gasoline up to E15, and mineral spirits

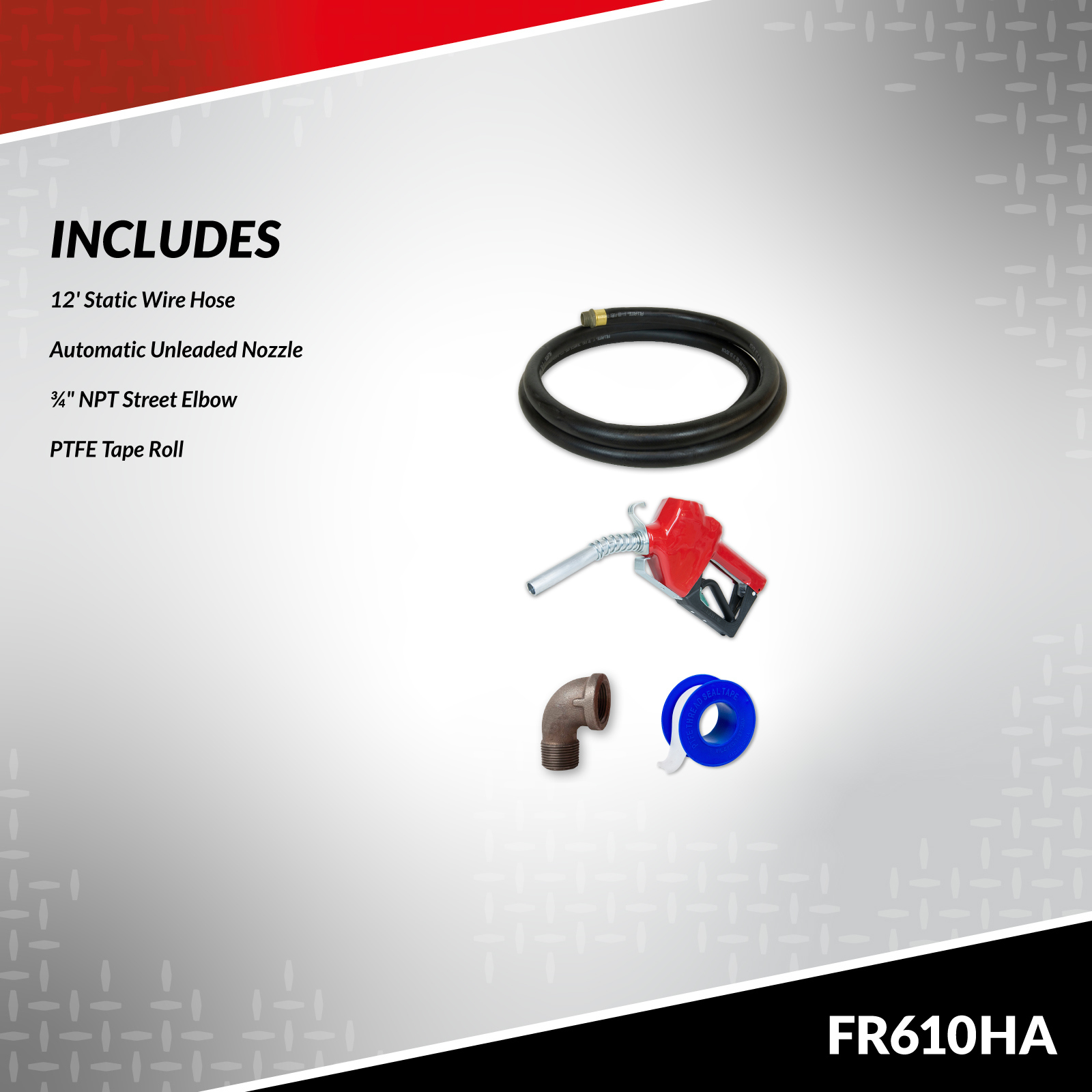

  • Included: 3/4" automatic unleaded nozzle, 3/4" x 12' UL listed hose with static ground wire, 20"-34-1/2" steel telescoping suction pipe, nozzle boot, PTFE tape, 3/4" NPT street elbow, locking nut, and fastener
  • Assembled weight: 28.5 lbs
  • Warranty: Limited Lifetime
Common Uses

Stationary 115V tanks that need a 15 GPM pump with an automatic unleaded nozzle, hose, and telescoping suction pipe already included.
