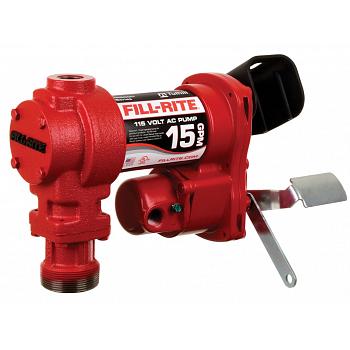

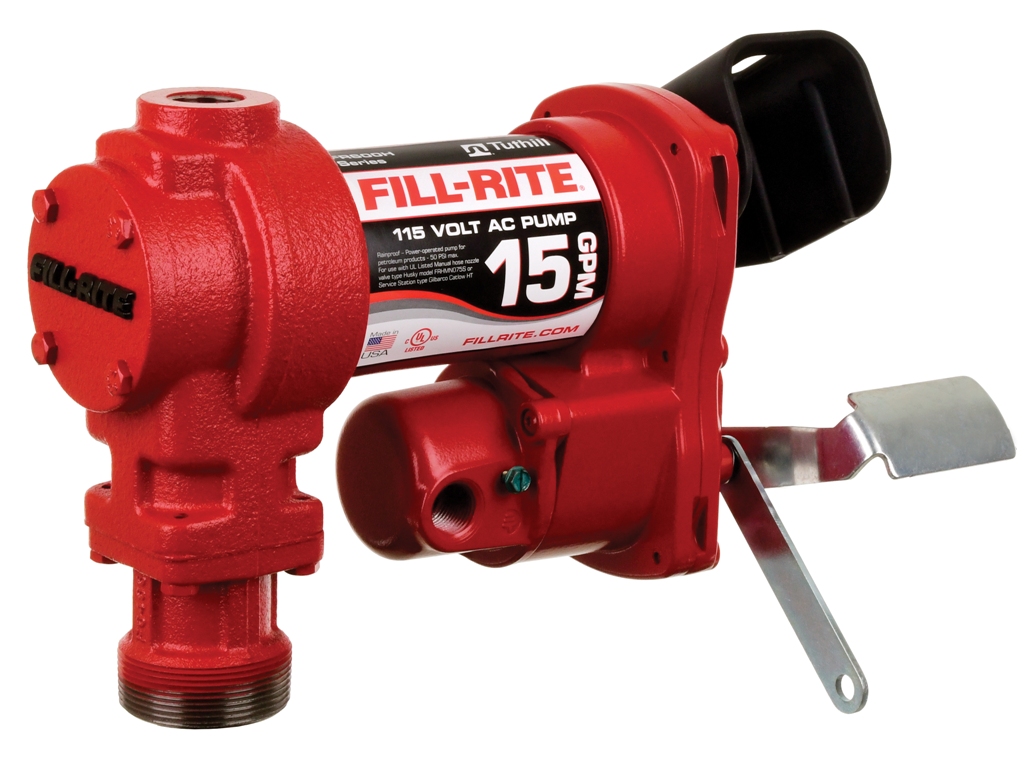

Fill-Rite FR604H 115V Fuel Transfer Pump (Pump Only) - 15 GPM

Model/SKU: FR604H
Manufacturer Part # FR604H

Description

The Fill-Rite FR604H is a 115V AC, 15 GPM (57 LPM) cast iron rotary vane fuel transfer pump sold as a pump only, so you can add the hose, nozzle, meter, and suction pipe that fit your tank. It is built for stationary aboveground tanks on farms, ranches, and job sites with a standard 115V supply.

The thermally protected 0.17 HP motor draws just 2 A and runs on a 30 minutes on / 30 minutes off duty cycle, with 8 feet of suction lift and 37 feet of discharge head (16 PSI). The adjustable junction box rotates 180 degrees for easier wiring in tight spaces, and a built-in mesh strainer helps keep debris out of the pump. It is cULus certified and backed by a Limited Lifetime warranty.

Key Specs
  • Model: FR604H
  • Max flow rate: 15 GPM / 57 LPM
  • Power: 115V AC, 2 A; 0.17 HP thermally protected motor
  • Duty cycle: 30 min on / 30 min off
  • Inlet / outlet: 1 inch female NPT inlet / 0.75 inch female NPT outlet
  • Mounting: 2 inch NPT bung mount
  • Suction lift / discharge: 8' suction lift; 37' discharge head (16 PSI)
  • Operating temperature: -17 to 104 degrees F
  • Compatible fluids: Diesel, gasoline, kerosene, biodiesel up to B20, gasoline up to E15, and mineral spirits
  • Housing: Cast iron

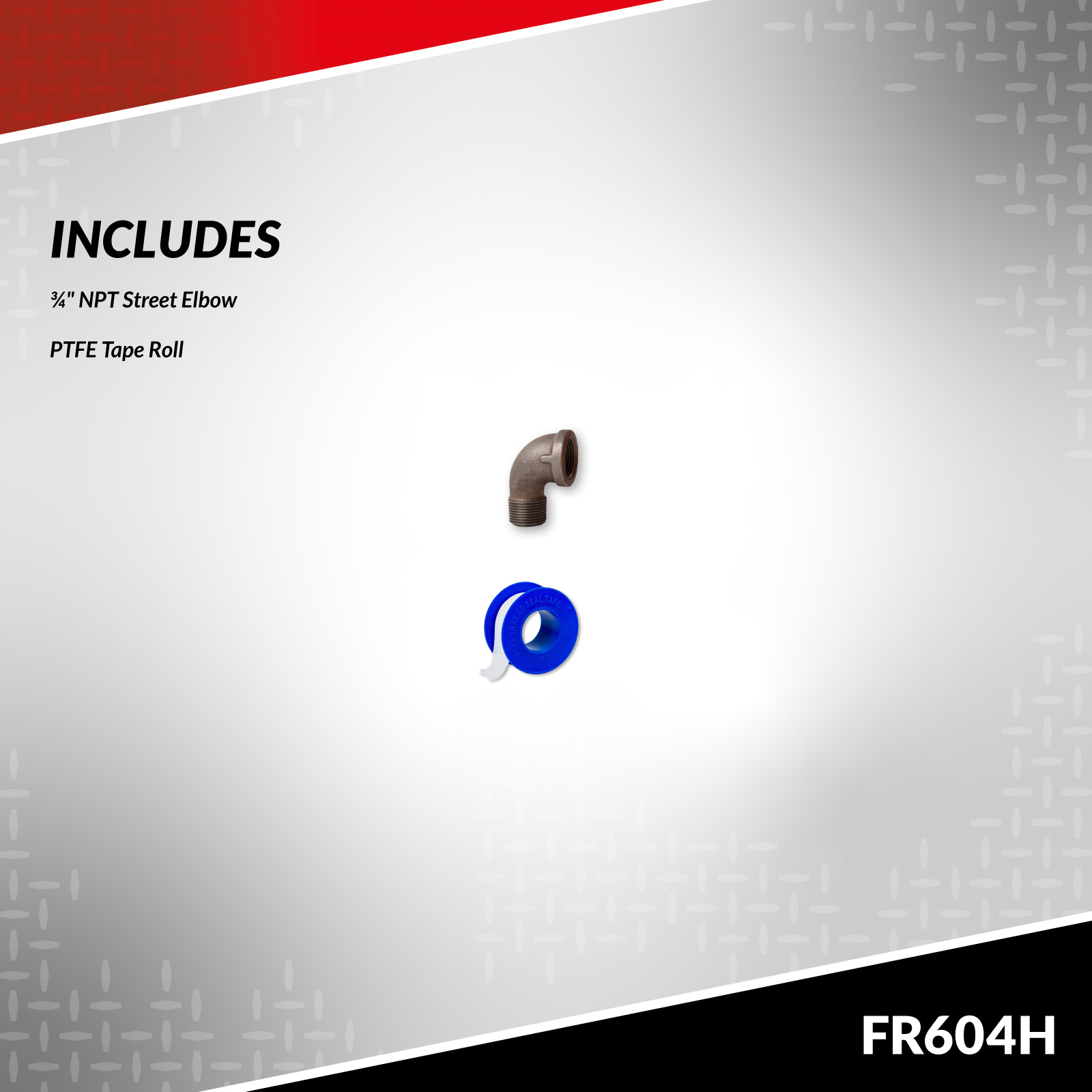

  • Included: Pump, nozzle boot, PTFE tape, 3/4" NPT street elbow, locking nut, and fastener; hard-wired electrical connection
  • Assembled weight: 19.9 lbs
  • Certifications: cULus
  • Warranty: Limited Lifetime
Common Uses

Building a custom 115V fuel station on a stationary diesel or gasoline tank, or replacing a worn pump head on an existing setup that already has hose, nozzle, and suction pipe.



Detailed Information

PDF  Sales Sheet

PDF  Technical Data Sheet

PDF  Product Manual
