Fill-Rite FR2404H 24V Fuel Transfer Pump (Pump Only) - 15 GPM

Model/SKU: FR2404H
Manufacturer Part # FR2404H

Description

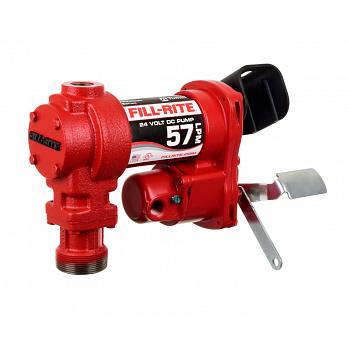

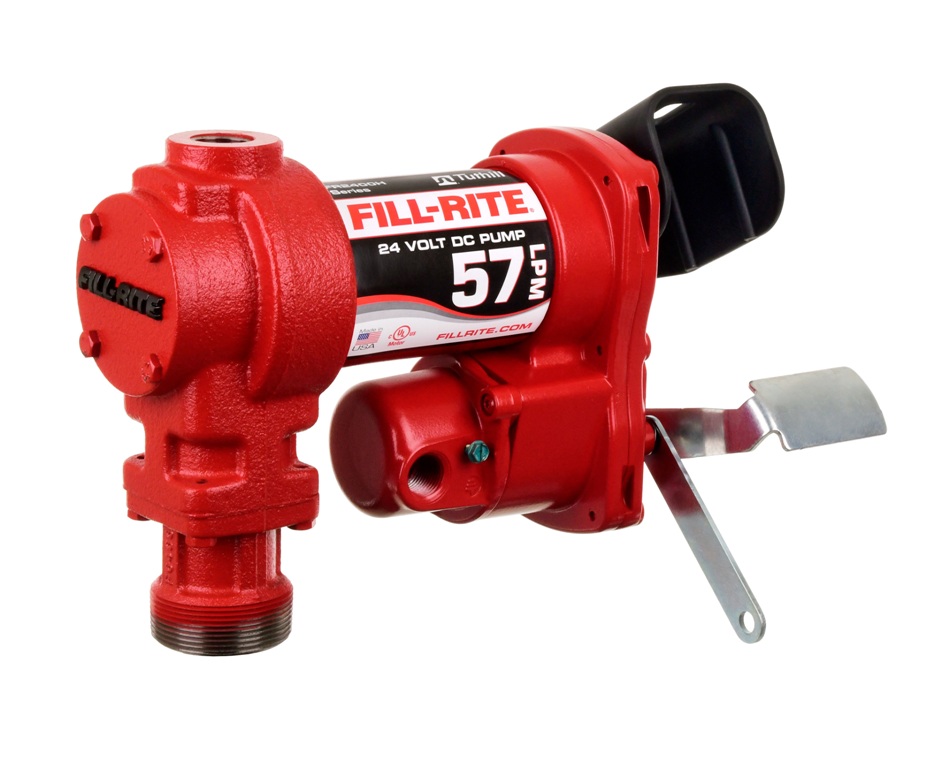

The Fill-Rite FR2404H is a 24V DC, 15 GPM (57 LPM) heavy-duty cast iron fuel transfer pump sold as a pump only, for heavy trucks and equipment with 24V electrical systems. Add the hose, nozzle, meter, and suction pipe that fit your tank.

The thermally protected 0.25 HP motor draws 10 A on 24V DC and runs on a 30 minutes on / 30 minutes off duty cycle, with 8 feet of suction lift and 37 feet of discharge head (16 PSI). The adjustable junction box rotates 180 degrees for easier wiring in tight spaces, and a built-in mesh strainer helps keep debris out of the pump. It is cULus certified and backed by a Limited Lifetime warranty.

Key Specs
  • Model: FR2404H
  • Max flow rate: 15 GPM / 57 LPM
  • Power: 24V DC, 10 A; 0.25 HP thermally protected motor; bare-lead power connection
  • Duty cycle: 30 min on / 30 min off
  • Inlet / outlet: 1 inch female NPT inlet / 0.75 inch female NPT outlet
  • Mounting: 2 inch NPT bung mount
  • Suction lift / discharge: 8' suction lift; 37' discharge head (16 PSI)
  • Operating temperature: -15 to 150 degrees F
  • Compatible fluids: Diesel, kerosene, biodiesel up to B20, gasoline up to E15, and mineral spirits

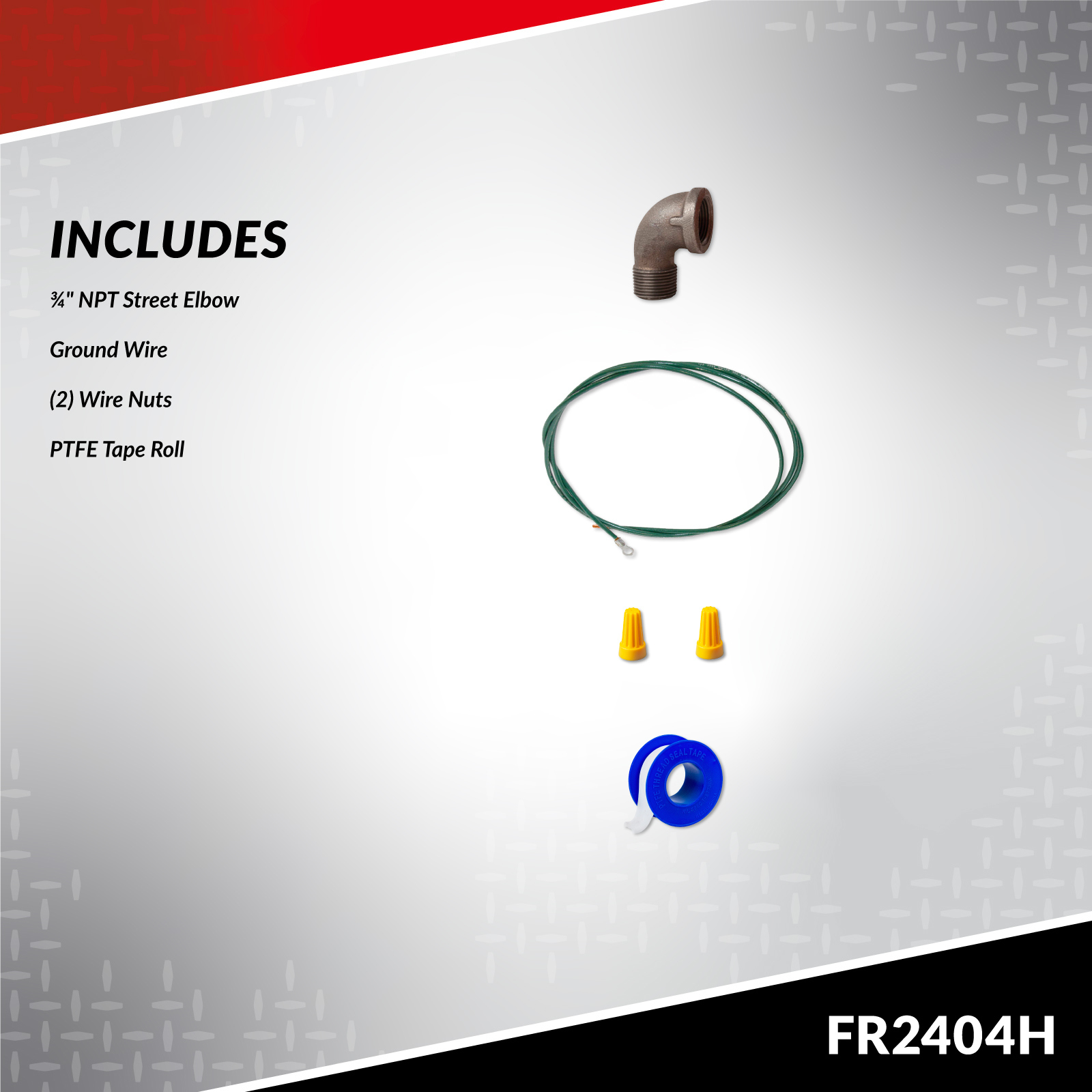

  • Included: Pump, nozzle boot, PTFE tape, 3/4" NPT street elbow, ground wire, cable gland, (2) wire nuts, locking nut, and fastener
  • Assembled weight: 19.1 lbs
  • Certifications: cULus
  • Warranty: Limited Lifetime
Common Uses

Transfer tanks mounted on 24V trucks, heavy equipment, and service vehicles where you want to build your own hose and nozzle setup or replace a worn pump.



Detailed Information

PDF  Sales Sheet

PDF  Technical Data Sheet

PDF  Product Manual
