Fill-Rite FR4220HDSFQ 12V Fuel Transfer Pump (Suction Pipe, 18' Hose, Auto, Swivel & Filter) - 20 GPM

Model/SKU: FR4220HDSFQ
Manufacturer Part # FR4220HDSFQ

Description

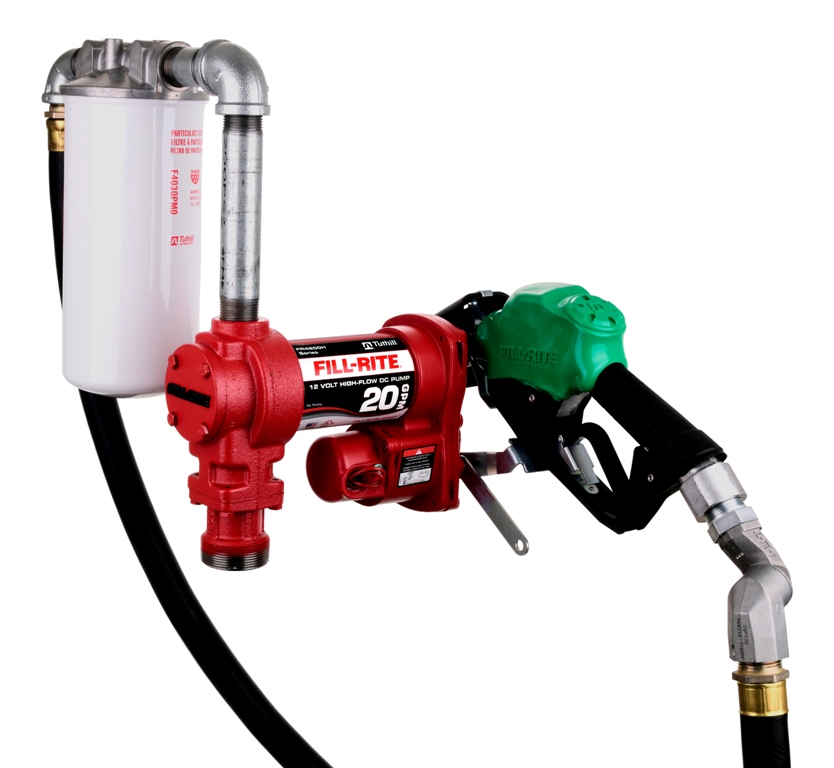

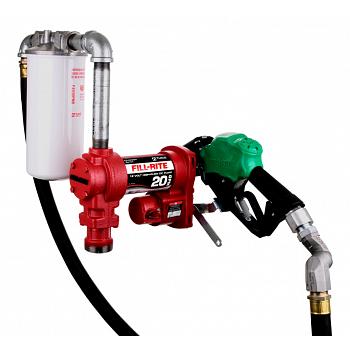

The Fill-Rite FR4220HDSFQ is a 12V DC, 20 GPM (75 LPM) heavy-duty cast iron fuel transfer pump packaged with a 30 micron particulate filter and filter head, a 1 inch by 18 foot hose with static ground wire, a 1 inch multi-plane swivel, a 1 inch high-flow automatic diesel nozzle (green), a 20 to 34-1/2 inch steel telescoping suction pipe, and an 18 foot 12-gauge power cable.

The thermally protected 0.25 HP motor draws 19 A on 12V DC and runs on a 30 minutes on / 30 minutes off duty cycle, with 8 feet of suction lift and 37 feet of discharge head (16 PSI). The adjustable junction box rotates 180 degrees for easier wiring in tight spaces, and a built-in mesh strainer helps keep debris out of the pump. The filter helps keep particulates out of your equipment, and the 18 foot hose with swivel adds reach. It is cULus certified and backed by a Limited Lifetime warranty.

Key Specs
  • Model: FR4220HDSFQ
  • Max flow rate: 20 GPM / 75 LPM
  • Power: 12V DC, 19 A; 0.25 HP thermally protected motor; 18' 12-gauge cable with bare leads
  • Duty cycle: 30 min on / 30 min off
  • Inlet / outlet: 1 inch female NPT inlet / 1 inch female NPT outlet
  • Mounting: 2 inch NPT bung mount
  • Suction lift / discharge: 8' suction lift; 37' discharge head (16 PSI)
  • Operating temperature: -15 to 150 degrees F
  • Compatible fluids: Diesel, kerosene, biodiesel up to B20, gasoline up to E15, and mineral spirits
  • Filter: 30 micron particulate filter with filter head
  • Included: 30 micron filter and head, 1" x 18' hose with static ground wire, 1" multi-plane swivel, 1" high-flow automatic diesel nozzle (green), 20"-34-1/2" steel telescoping suction pipe, 2-wire 12-ga 18' power cable
  • Package weight: 46.7 lbs
  • Certifications: cULus
  • Warranty: Limited Lifetime
Common Uses

Larger 12V diesel transfer tanks on service and farm trucks that need filtered fuel, a faster 20 GPM fill, and extra hose reach.
