Fill-Rite FR4210HBFQ 12V Fuel Transfer Pump (Auto Nozzle, Hose, Filter, Suction Pipe) - 20 GPM

Model/SKU: FR4210HBFQ
Manufacturer Part # FR4210HBFQ

Description

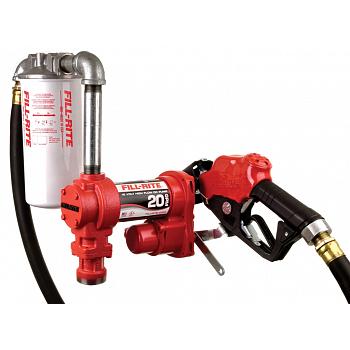

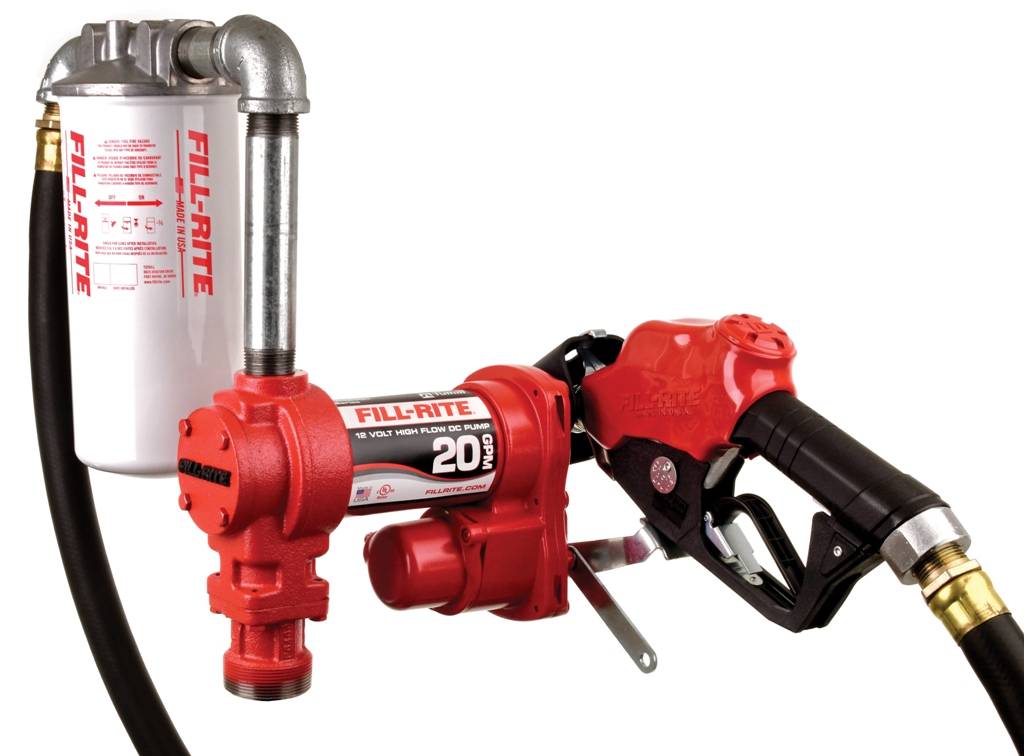

The Fill-Rite FR4210HBFQ is a 12V DC, 20 GPM (75 LPM) heavy-duty cast iron fuel transfer pump packaged with a 30 micron particulate filter and filter head, a 1 inch by 18 foot hose with static ground wire, a 1 inch ultra hi-flow automatic diesel nozzle (red), a 20 to 34-1/2 inch steel telescoping suction pipe, and a 25 foot 10-gauge power cable with alligator clips.

The thermally protected 0.25 HP motor draws 19 A on 12V DC and runs on a 30 minutes on / 30 minutes off duty cycle, with 8 feet of suction lift and 37 feet of discharge head (16 PSI). The adjustable junction box rotates 180 degrees for easier wiring in tight spaces, and a built-in mesh strainer helps keep debris out of the pump. The in-line filter helps keep particulates out of your equipment, and the 25 foot clamp-on cable connects straight to the battery. It is cULus certified and backed by a Limited Lifetime warranty.

Key Specs
  • Model: FR4210HBFQ
  • Max flow rate: 20 GPM / 75 LPM
  • Power: 12V DC, 19 A; 0.25 HP thermally protected motor; 25' 10-gauge cable with alligator clips
  • Duty cycle: 30 min on / 30 min off
  • Inlet / outlet: 1 inch female NPT inlet / 1 inch female NPT outlet
  • Mounting: 2 inch NPT bung mount
  • Suction lift / discharge: 8' suction lift; 37' discharge head (16 PSI)
  • Operating temperature: -15 to 150 degrees F
  • Compatible fluids: Diesel, kerosene, biodiesel up to B20, gasoline up to E15, and mineral spirits
  • Filter: 30 micron particulate filter with filter head

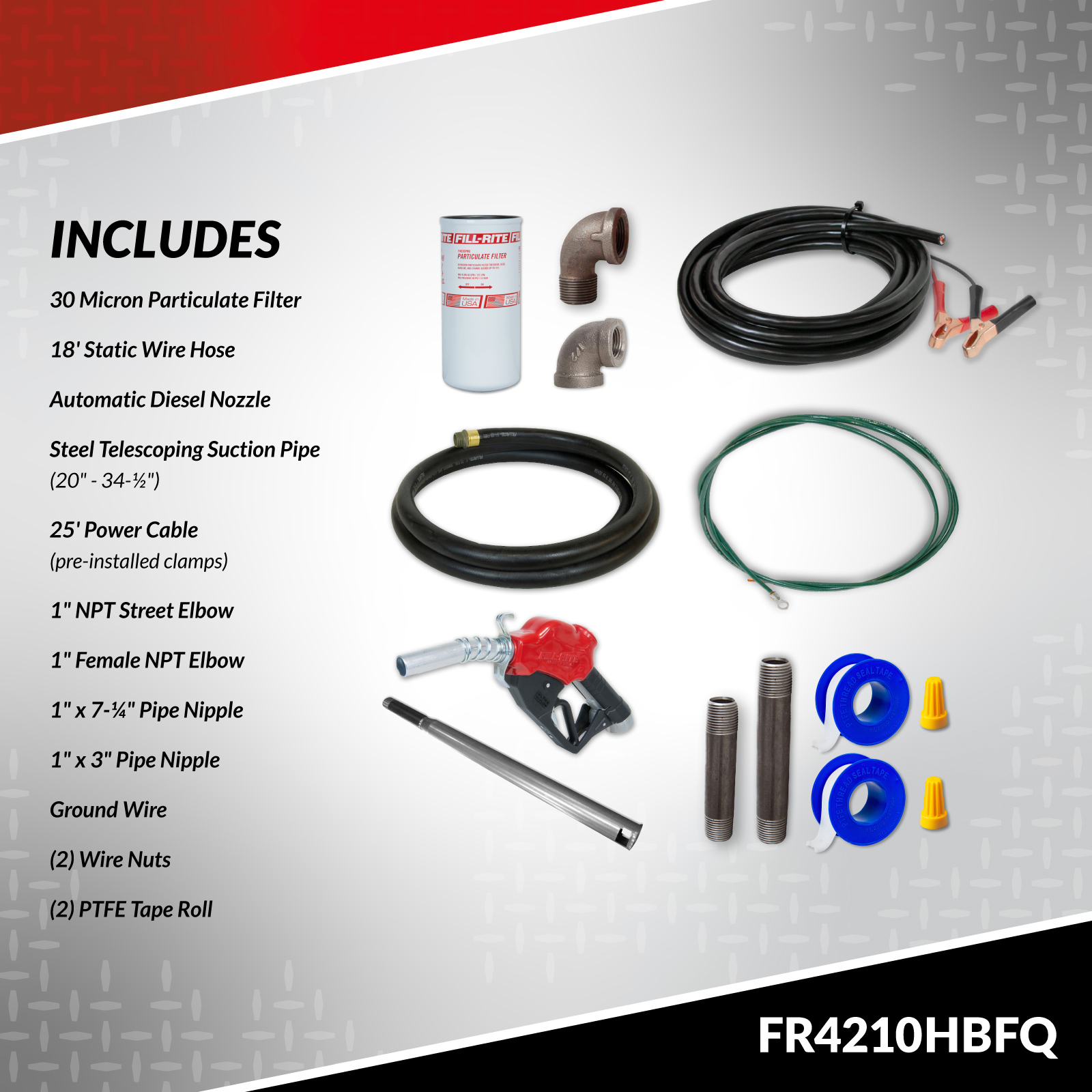

  • Included: 30 micron filter and head, 1" x 18' hose with static ground wire, 1" ultra hi-flow automatic diesel nozzle (red), 20"-34-1/2" steel telescoping suction pipe, 25' 10-ga cable with clips, nozzle boot, (2) PTFE tape rolls, 1" NPT street elbow, 1" female NPT elbow, 1" x 7-1/4" and 1" x 3" pipe nipples, ground wire, cable gland, (2) wire nuts, locking nut, and fastener
  • Certifications: cULus
  • Warranty: Limited Lifetime
Common Uses

Service trucks and farm transfer tanks that need filtered diesel, a long hose reach, and quick battery hookup for fueling equipment in the field.
