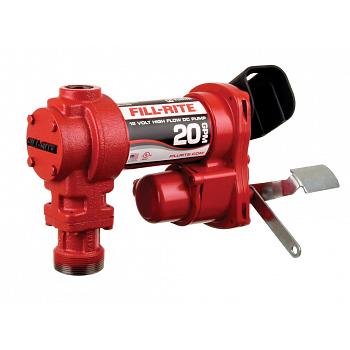

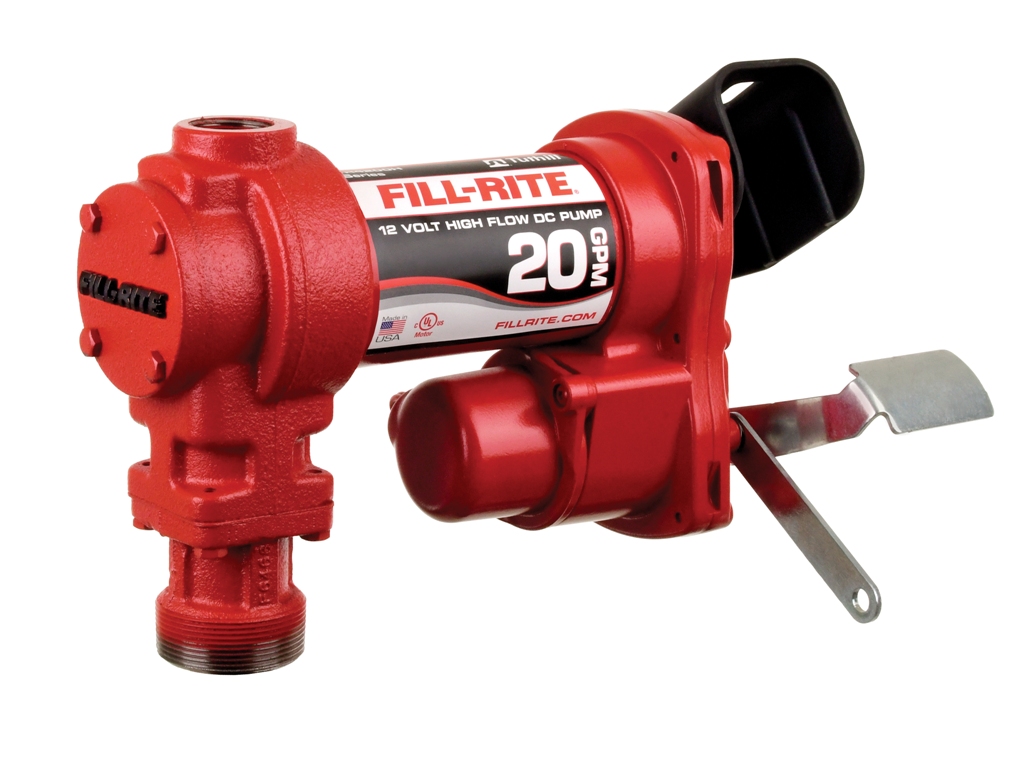

Fill-Rite FR4204H 12V Fuel Transfer Pump (Pump Only) - 20 GPM

Model/SKU: FR4204H
Manufacturer Part # FR4204H

Description

The Fill-Rite FR4204H is a 12V DC, 20 GPM (75 LPM) heavy-duty cast iron fuel transfer pump sold as a pump only, with a 1 inch outlet. Add the hose, nozzle, meter, and suction pipe that fit your transfer tank.

The thermally protected 0.25 HP motor draws 19 A on 12V DC and runs on a 30 minutes on / 30 minutes off duty cycle, with 8 feet of suction lift and 37 feet of discharge head (16 PSI). The adjustable junction box rotates 180 degrees for easier wiring in tight spaces, and a built-in mesh strainer helps keep debris out of the pump. It is cULus certified and backed by a Limited Lifetime warranty.

Key Specs
  • Model: FR4204H
  • Max flow rate: 20 GPM / 75 LPM
  • Power: 12V DC, 19 A; 0.25 HP thermally protected motor; bare-lead power connection
  • Duty cycle: 30 min on / 30 min off
  • Inlet / outlet: 1 inch female NPT inlet / 1 inch female NPT outlet
  • Mounting: 2 inch NPT bung mount
  • Suction lift / discharge: 8' suction lift; 37' discharge head (16 PSI)
  • Operating temperature: -15 to 150 degrees F
  • Compatible fluids: Diesel, kerosene, biodiesel up to B20, gasoline up to E15, and mineral spirits

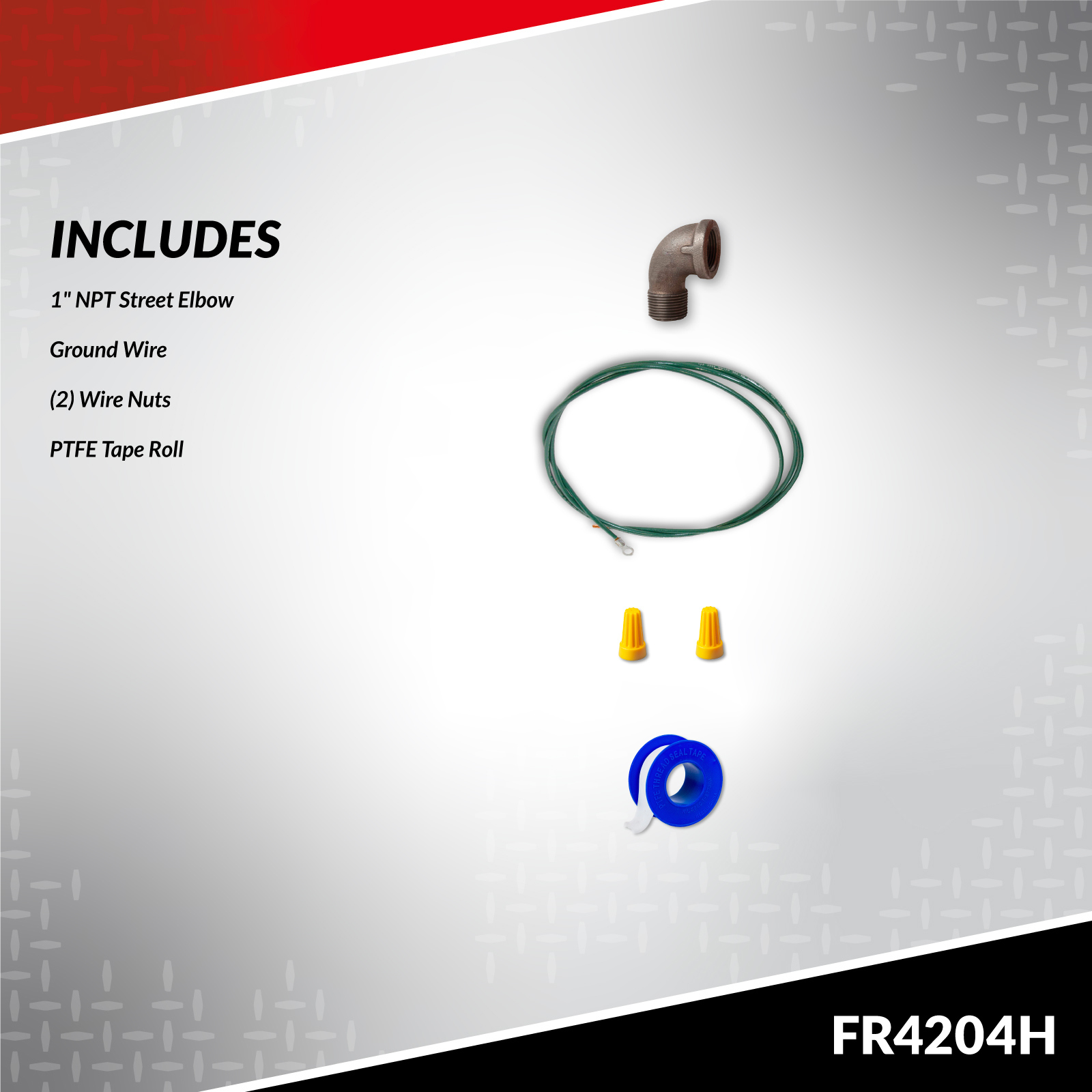

  • Included: Pump, nozzle boot, PTFE tape, 1" NPT street elbow, ground wire, cable gland, (2) wire nuts, locking nut, and fastener
  • Assembled weight: 20.7 lbs
  • Certifications: cULus
  • Warranty: Limited Lifetime
Common Uses

Upgrading or replacing the pump on a 12V truck or trailer transfer tank when you want a faster 20 GPM fill and already have your own 1 inch hose and nozzle.
