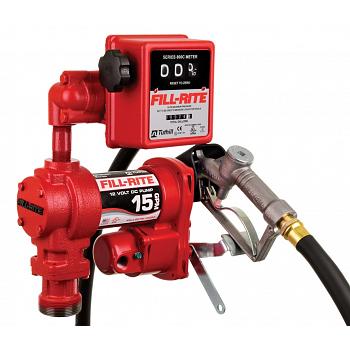

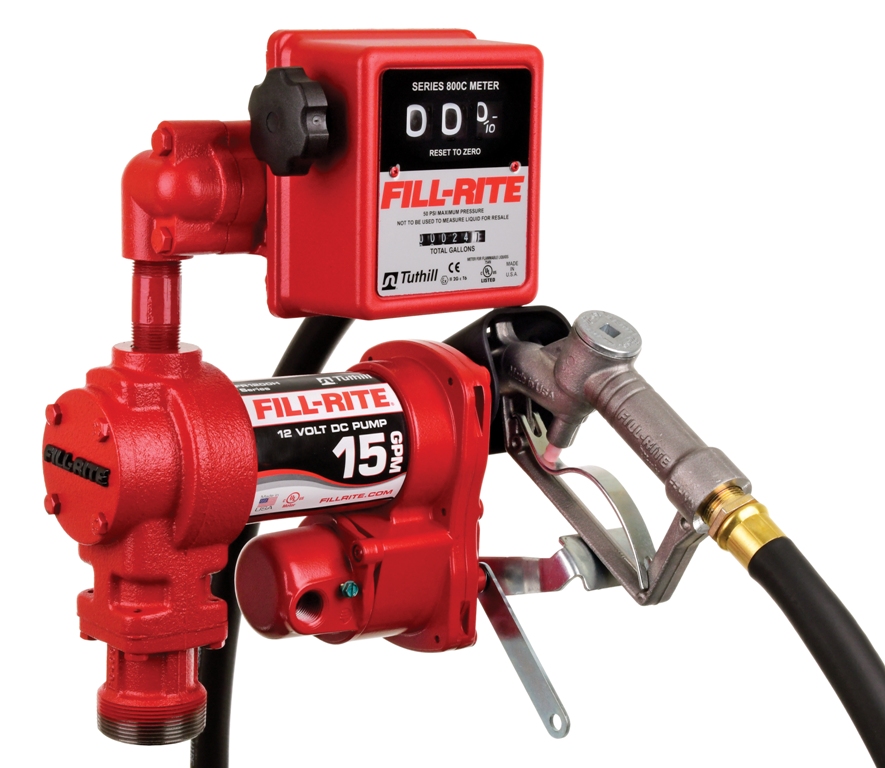

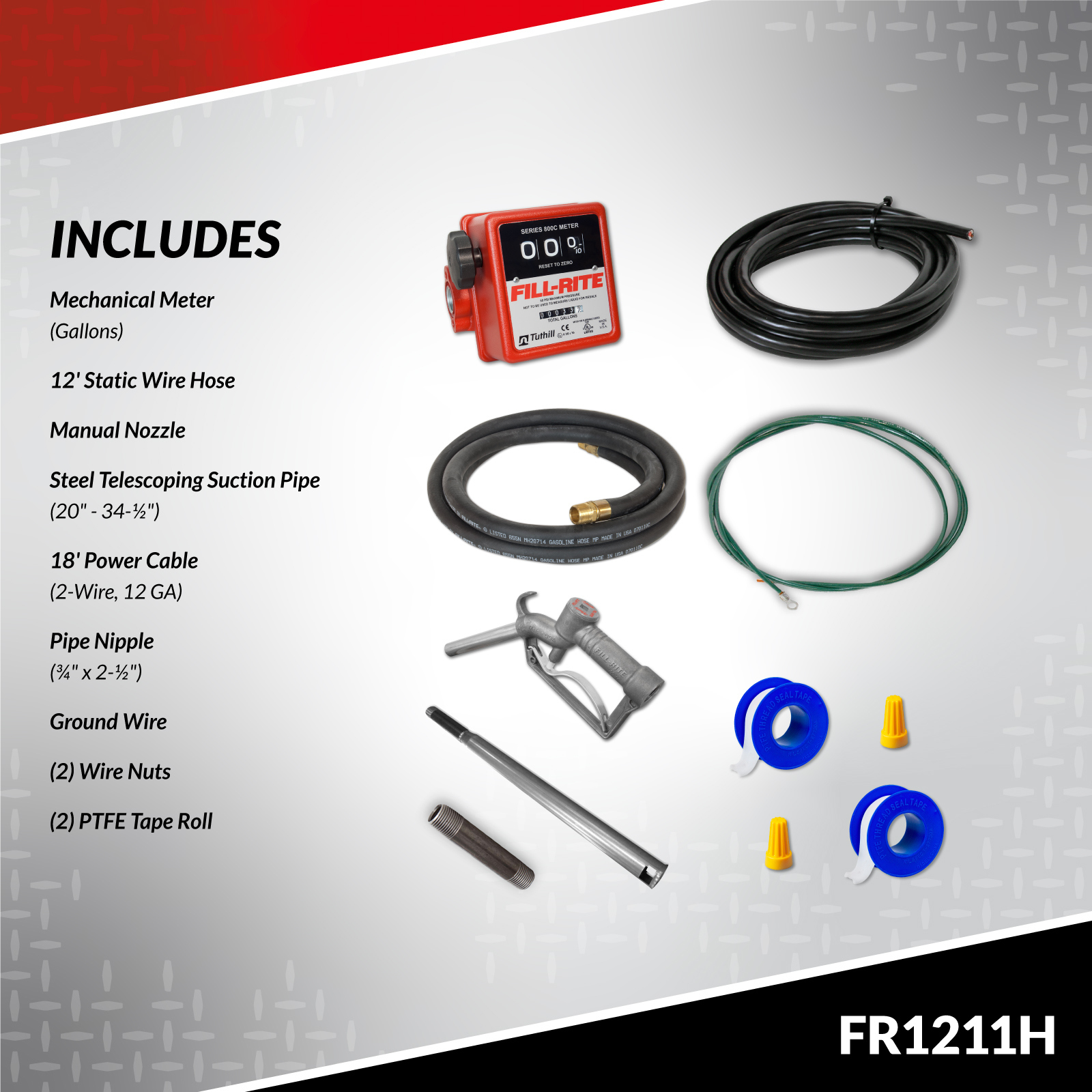

The Fill-Rite FR1211H is a 12V DC, 15 GPM (57 LPM) heavy-duty cast iron fuel transfer pump packaged with an 807C 3-digit mechanical gallon meter, a 3/4 inch by 12 foot hose with static ground wire, a 3/4 inch cast aluminum manual nozzle, a 20 to 34-1/2 inch steel telescoping suction pipe, and an 18 foot 12-gauge power cable.
The mechanical meter measures each transfer to within +/- 1% accuracy. The thermally protected 0.25 HP motor draws 20 A on 12V DC and runs on a 30 minutes on / 30 minutes off duty cycle, with 8 feet of suction lift and 37 feet of discharge head (16 PSI). The adjustable junction box rotates 180 degrees for easier wiring in tight spaces, and a built-in mesh strainer helps keep debris out of the pump. It is cULus certified and backed by a Limited Lifetime warranty.
Truck and trailer transfer tanks where you need to track gallons dispensed to each machine, such as farm, construction, and fleet fueling.
