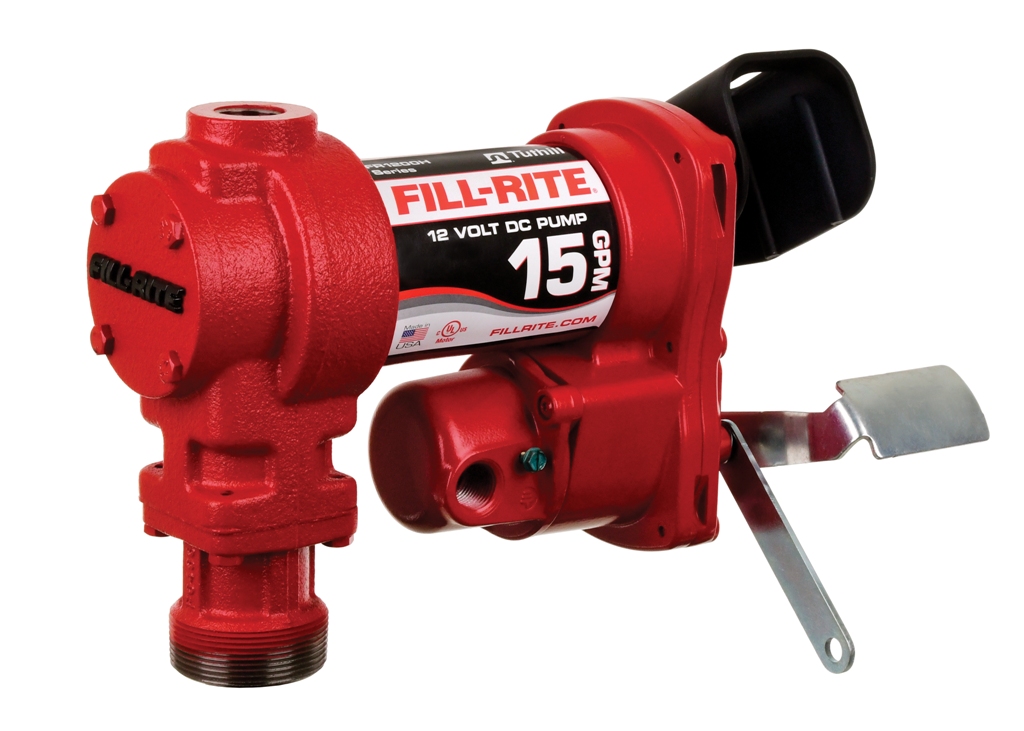

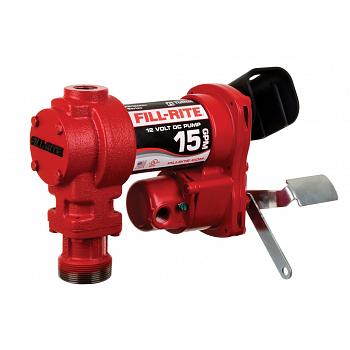

Fill-Rite FR1204H 12V Fuel Transfer Pump (Pump Only) - 15 GPM

Model/SKU: FR1204H
Manufacturer Part # FR1204H

Description

The Fill-Rite FR1204H is the pump-only model in the 12V DC, 15 GPM (57 LPM) FR1200 series. It mounts to a 2 inch NPT bung and does not include a discharge hose, nozzle, or suction pipe.

Compatible fluids are diesel, kerosene, biodiesel up to B20, gasoline up to E15, and mineral spirits. This series is rated at 12V DC / 20 A, with a 30 minutes on / 30 minutes off duty cycle, 8 feet of suction lift, 37 feet of discharge head (16 PSI), a 1 inch female NPT inlet, and a 3/4 inch female NPT outlet. The adjustable junction box rotates 180 degrees. It is backed by a Limited Lifetime warranty.

Key Specs
  • Model: FR1204H
  • Max flow rate: 15 GPM / 57 LPM
  • Power: 12V DC / 20 A
  • Duty cycle: 30 min on / 30 min off
  • Inlet / outlet: 1 inch NPT inlet / 0.75 inch NPT outlet
  • Mounting: 2 inch NPT bung mount
  • Suction lift / discharge: 8' suction lift; 37' discharge head (16 PSI)
  • Compatible fluids: Diesel, kerosene, biodiesel up to B20, gasoline up to E15, and mineral spirits
  • Included: Pump only (no hose, nozzle, or suction pipe; installation components only)
  • Warranty: Limited Lifetime
Common Uses

12V transfer tanks when you already have a hose, nozzle, and suction pipe, or want to build a custom FR1200-series setup around the bare pump.



Detailed Information

PDF  Sales Sheet

PDF  Technical Data Sheet

PDF  Product Manual
