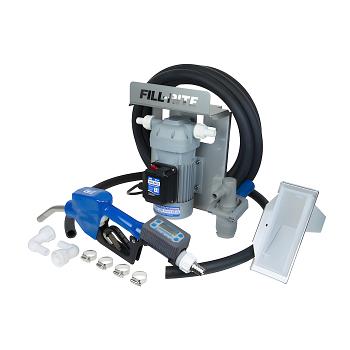

Fill-Rite DF012CAT520B 12V DC DEF Pump, IBC Bracket, Nozzle, Turbine Meter, Hose And Fittings 1
Fill-Rite
Lead Time:  5-14 Days
Ships From: IN

Quantity

See Our Reviews!
Customer Reviews

Share this page!
Twitter

Fill-Rite DF012CAT520B 12V DC DEF Pump, IBC Bracket, Nozzle, Turbine Meter, Hose And Fittings

Model/SKU: DF012CAT520B
Manufacturer Part # DF012CAT520B

Description

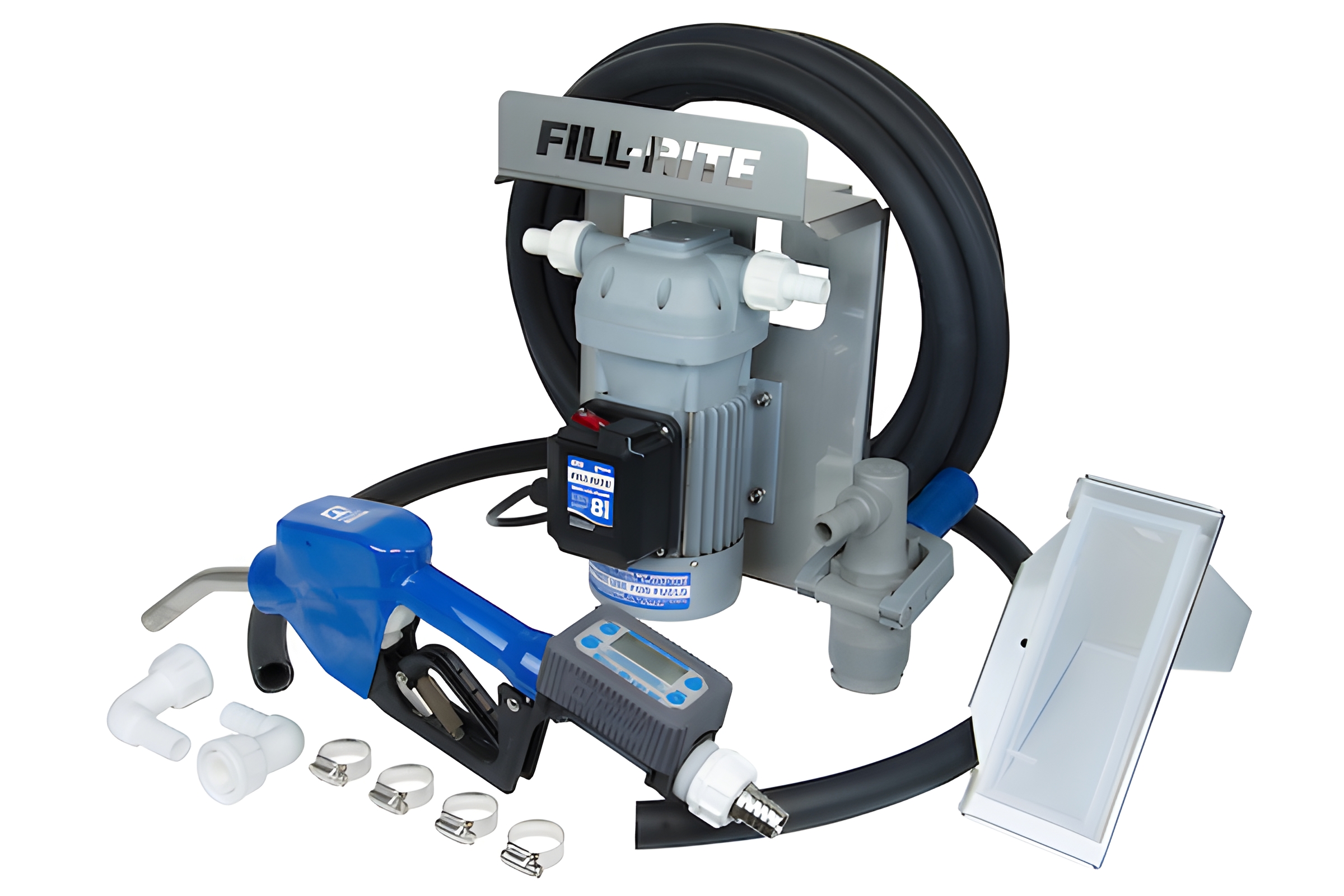

The Fill-Rite DF012CAT520B is a complete 12V DC diesel exhaust fluid (DEF) dispensing system for caged IBC totes. It includes the 8 GPM (30 LPM) DF012 diaphragm pump, a stainless steel tote bracket, a TT10PN digital meter, an RPV dispense coupler, 20 feet of EPDM discharge hose, a 5 foot EPDM suction hose, a 1 inch automatic DEF nozzle, and the fittings needed to install it.

Multi-diaphragm pumping and EPDM seals are made for daily DEF service, and the built-in pulsation dampener smooths the flow to cut down on foaming and splashing at the nozzle. The pump self-primes up to 6 feet, develops up to 87 feet of discharge head (38 PSI), and runs on a 30 minutes on / 30 minutes off duty cycle. The RPV coupler connects to IBC totes with RSV or RPV 4-key valves to create a closed-loop system that helps keep the fluid pure, and the digital meter reads to plus or minus 1% in ounces, pints, quarts, liters, or gallons. It carries Intertek certification and a 2-year warranty.

Key Specs
  • Model: DF012CAT520B
  • Max flow rate: 8 GPM / 30 LPM
  • Power: 12V DC, 22 A; 0.25 HP motor; power cable with battery clips
  • Duty cycle: 30 min on / 30 min off
  • Suction lift / discharge: 6' self-priming suction lift; 87' discharge head (38 PSI)
  • Connections: 3/4 inch hose barb inlet and outlet
  • Compatible fluids: Diesel exhaust fluid (DEF / AdBlue) and water
  • Wetted materials: Nylon, EPDM, Santoprene, and stainless steel
  • Mounting: Stainless steel IBC tote cage bracket with hose hanger
  • Meter: TT10PN digital turbine meter, plus or minus 1% accuracy, runs on AA batteries
  • Included: 3/4" x 20' EPDM discharge hose, 3/4" x 5' EPDM suction hose, 1" automatic DEF nozzle with stainless steel spout, nozzle boot, RPV dispense coupler, (2) 3/4" 90-degree barbed elbows with nuts, (2) 3/4" barbed straight fittings, (2) 1" BSP female couplings with nuts, (4) EPDM O-rings, cable tie
  • Certifications: Intertek
  • Warranty: 2 years
Common Uses

Closed-loop DEF dispensing from IBC totes on service trucks, at remote job sites, or anywhere a 12V battery is easier to reach than a wall outlet, with metered tracking of every fill.
