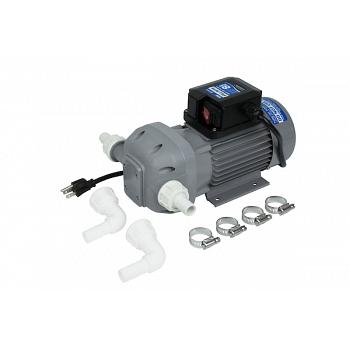

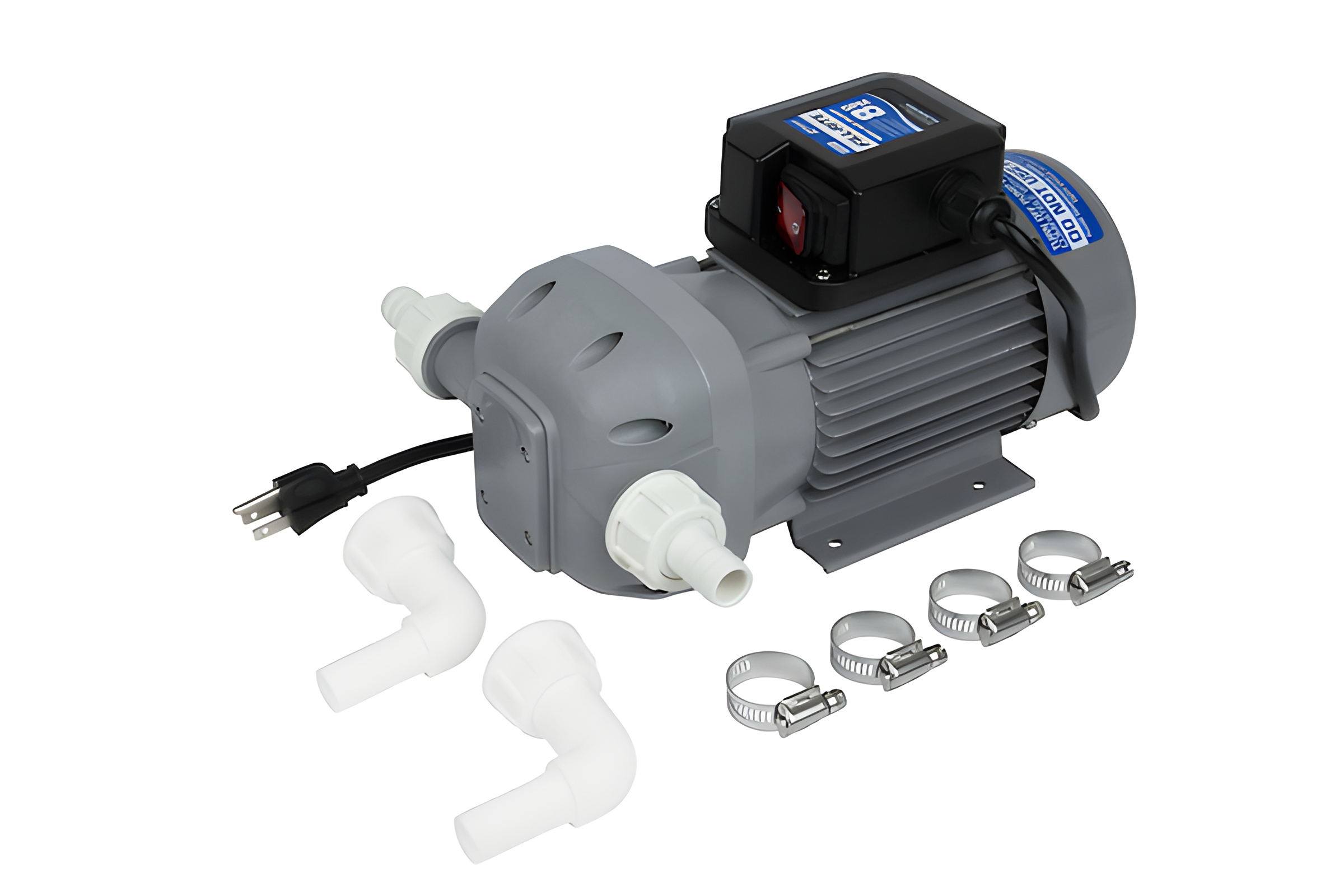

Fill-Rite DF120N 120V AC DEF Pump And Fittings

Model/SKU: DF120N
Manufacturer Part # DF120N

Description

The Fill-Rite DF120N is a 120V AC diesel exhaust fluid (DEF) transfer pump sold with its connection kit, so you can build your own system with the hose, nozzle, and mounting that fit your setup. It is made for shops and fleets that dispense DEF from totes, drums, or bulk tanks.

Multi-diaphragm pumping and EPDM seals are made for daily DEF service, and the built-in pulsation dampener smooths the flow to cut down on foaming and splashing at the nozzle. The pump self-primes up to 6 feet, develops up to 87 feet of discharge head (38 PSI), and runs on a 30 minutes on / 30 minutes off duty cycle. Stainless steel exterior hardware resists DEF, and the included barbed fittings and couplings let you plumb it with 3/4 inch hose. It is backed by a 2-year warranty.

Key Specs
  • Model: DF120N
  • Max flow rate: 8 GPM / 30 LPM
  • Power: 120V AC, 60 Hz, 2.4 A; 0.25 HP motor; 3-prong (Type B) plug
  • Duty cycle: 30 min on / 30 min off
  • Suction lift / discharge: 6' self-priming suction lift; 87' discharge head (38 PSI)
  • Connections: 3/4 inch hose barb inlet and outlet
  • Compatible fluids: Diesel exhaust fluid (DEF / AdBlue) and water
  • Wetted materials: Nylon, EPDM, Santoprene, and stainless steel
  • Included: (2) 3/4" 90-degree barbed elbows with nuts, (2) 3/4" barbed straight fittings, (2) 1" BSP female couplings with nuts, (4) EPDM O-rings
  • Assembled weight: 13.3 lbs
  • Warranty: 2 years
Common Uses

Building a custom 120V DEF dispensing station, or replacing the pump on an existing DF120 tote or drum system.



Detailed Information

PDF  Fill-Rite DEF Pump Specification Sheet

PDF  Fill-Rite DEF Pump Installation Manual
