Fill-Rite DF120DAN520 120V AC DEF Pump, Drum Bracket, Nozzle, Hose And Fittings

Model/SKU: DF120DAN520
Manufacturer Part # DF120DAN520

Description

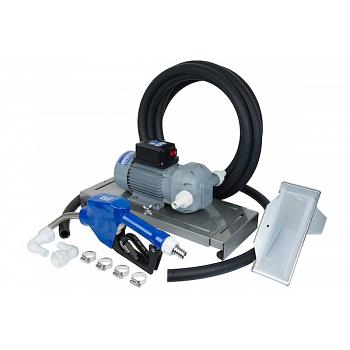

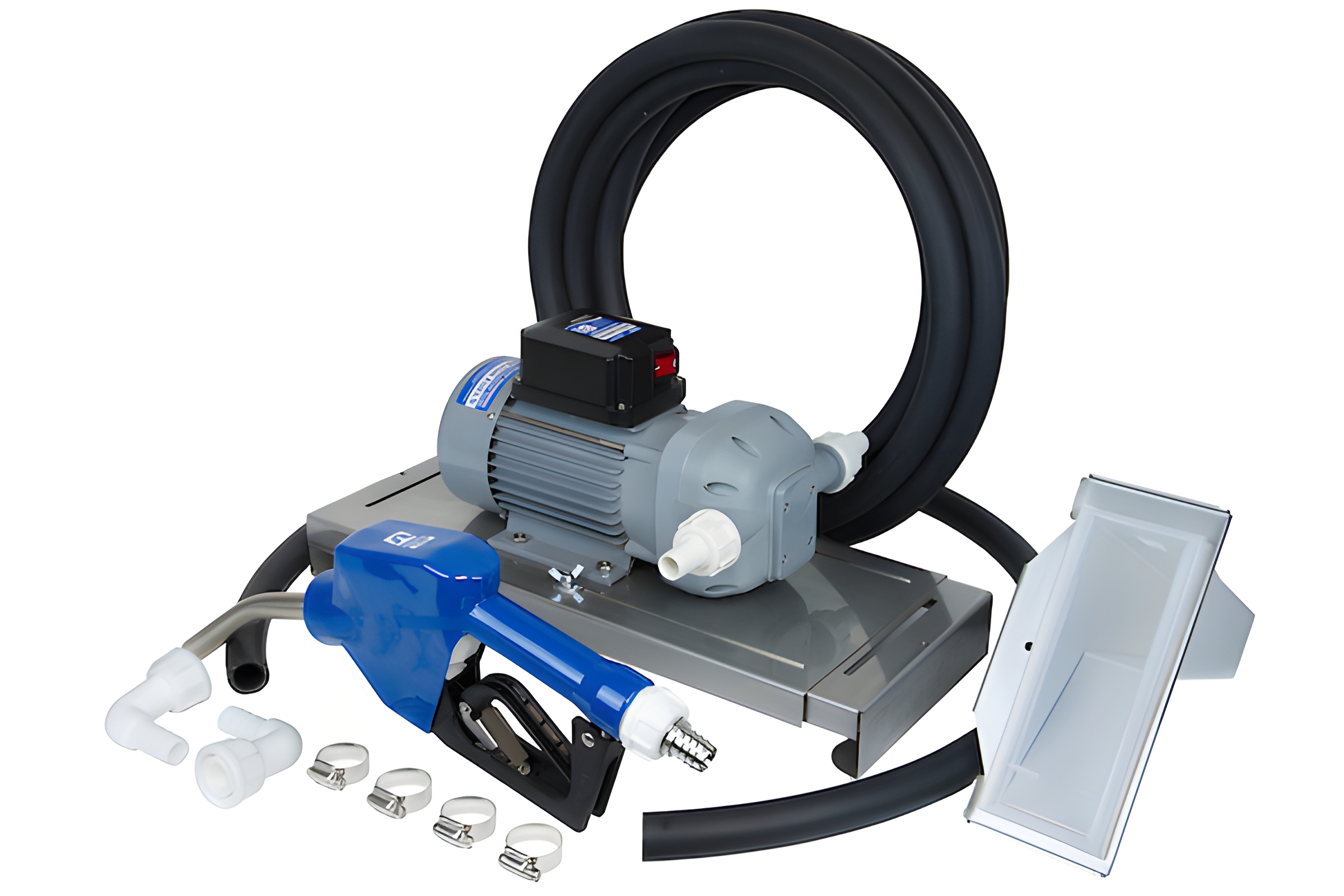

The Fill-Rite DF120DAN520 is a complete 120V AC diesel exhaust fluid (DEF) dispensing system built for drums. It combines the 8 GPM (30 LPM) DF120 diaphragm pump with a stainless steel drum bracket, 20 feet of EPDM discharge hose, a 5 foot EPDM suction hose, a 1 inch automatic DEF nozzle, and the fittings needed to install it.

Multi-diaphragm pumping and EPDM seals are made for daily DEF service, and the built-in pulsation dampener smooths the flow to cut down on foaming and splashing at the nozzle. The pump self-primes up to 6 feet, develops up to 87 feet of discharge head (38 PSI), and runs on a 30 minutes on / 30 minutes off duty cycle. The stainless bracket mounts securely to most 30 and 55 gallon drums, and the nozzle boot can be filled with water to keep the nozzle tip clean and free of DEF crystals. It carries Intertek certification and a 2-year warranty.

Key Specs
  • Model: DF120DAN520
  • Max flow rate: 8 GPM / 30 LPM
  • Power: 120V AC, 60 Hz, 2.4 A; 0.25 HP motor; 3-prong (Type B) plug
  • Duty cycle: 30 min on / 30 min off
  • Suction lift / discharge: 6' self-priming suction lift; 87' discharge head (38 PSI)
  • Connections: 3/4 inch hose barb inlet and outlet
  • Compatible fluids: Diesel exhaust fluid (DEF / AdBlue) and water
  • Wetted materials: Nylon, EPDM, Santoprene, and stainless steel
  • Mounting: Stainless steel drum bracket for most 30 and 55 gallon drums
  • Included: 3/4" x 20' EPDM discharge hose, 3/4" x 5' EPDM suction hose, 1" automatic DEF nozzle with stainless steel spout, nozzle boot, (2) 3/4" 90-degree barbed elbows with nuts, (2) 3/4" barbed straight fittings, (2) 1" BSP female couplings with nuts, (4) EPDM O-rings, (4) fasteners, cable tie
  • Certifications: Intertek
  • Warranty: 2 years
Common Uses

Dispensing DEF from 30 or 55 gallon drums in repair shops, farm shops, and small fleet garages with 120V power.



Detailed Information

PDF  Fill-Rite DEF Pump Specification Sheet

PDF  Fill-Rite DEF Pump Installation Manual
