Fill-Rite DF120CAN520 120V AC DEF Pump, IBC Bracket, Nozzle, Hose And Fittings

Model/SKU: DF120CAN520
Manufacturer Part # DF120CAN520

Description

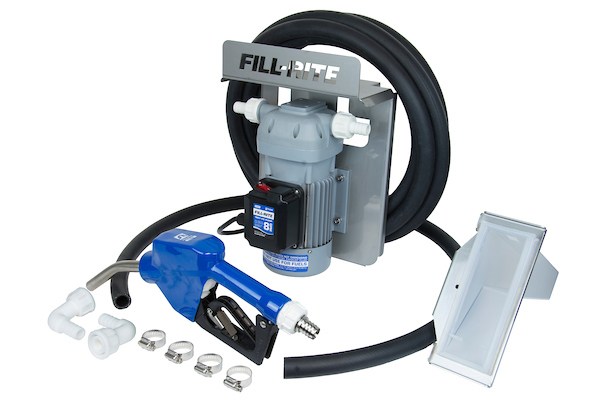

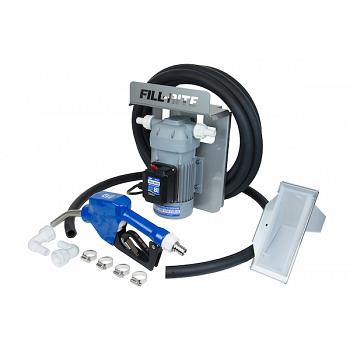

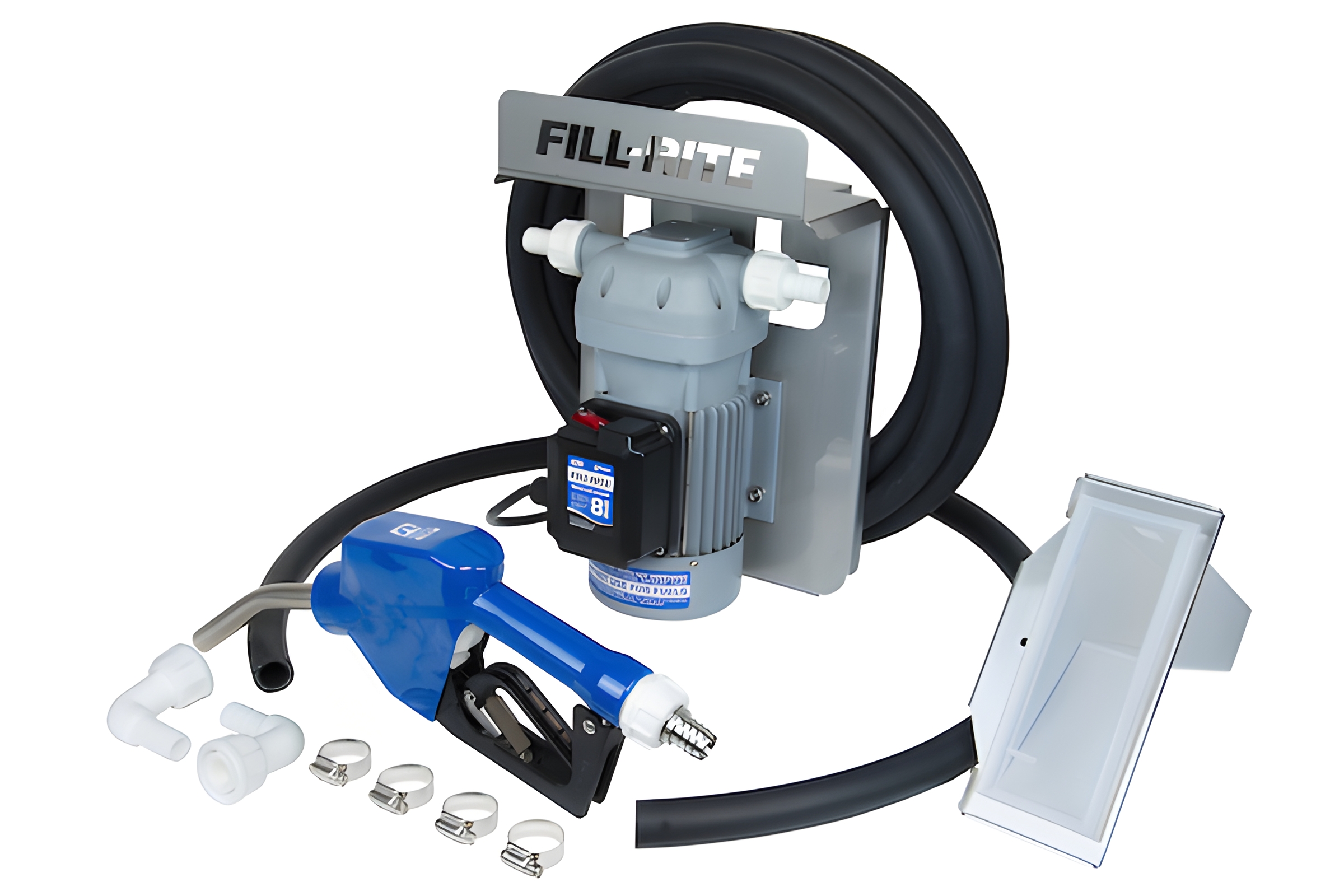

The Fill-Rite DF120CAN520 is a complete 120V AC diesel exhaust fluid (DEF) dispensing system that mounts on a caged IBC tote. It pairs the 8 GPM (30 LPM) DF120 diaphragm pump with a stainless steel tote bracket, 20 feet of EPDM discharge hose, a 5 foot EPDM suction hose, a 1 inch automatic DEF nozzle, and all the fittings needed to install it.

Multi-diaphragm pumping and EPDM seals are made for daily DEF service, and the built-in pulsation dampener smooths the flow to cut down on foaming and splashing at the nozzle. The pump self-primes up to 6 feet, develops up to 87 feet of discharge head (38 PSI), and runs on a 30 minutes on / 30 minutes off duty cycle. The nozzle boot can be filled with water so the nozzle tip stays clean and free of DEF crystals, and the stainless bracket hangs on many styles of caged totes and holds the full 20 feet of hose. It carries Intertek certification and a 2-year warranty.

Key Specs
  • Model: DF120CAN520
  • Max flow rate: 8 GPM / 30 LPM
  • Power: 120V AC, 60 Hz, 2.4 A; 0.25 HP motor; 3-prong (Type B) plug
  • Duty cycle: 30 min on / 30 min off
  • Suction lift / discharge: 6' self-priming suction lift; 87' discharge head (38 PSI)
  • Connections: 3/4 inch hose barb inlet and outlet
  • Compatible fluids: Diesel exhaust fluid (DEF / AdBlue) and water
  • Wetted materials: Nylon, EPDM, Santoprene, and stainless steel
  • Mounting: Stainless steel IBC tote cage bracket with hose hanger
  • Included: 3/4" x 20' EPDM discharge hose, 3/4" x 5' EPDM suction hose, 1" automatic DEF nozzle with stainless steel spout, nozzle boot, (2) 3/4" 90-degree barbed elbows with nuts, (2) 3/4" barbed straight fittings, (2) 1" BSP female couplings with nuts, (4) EPDM O-rings, cable tie
  • Certifications: Intertek
  • Warranty: 2 years
Common Uses

Dispensing DEF from caged IBC totes in shops, fleet yards, farms, and equipment dealers that have 120V power where the tote sits.
