Name: Snyder Vertical Chemical Storage Tank - 1100 Gallon
Brand: Snyder Industries
SKU: SII-1710000C26
Price: 1536.98 USD
Availability: InStock

Lead Time: 4-8 Weeks
Ships From: NE

Quantity

Ask A Question

See Our Reviews!

Description
Warranty

Snyder Vertical Chemical Storage Tank - 1100 Gallon

Model/SKU: SII-1710000C26
Manufacturer Part # 1710000C26

Description

The Snyder model 1710000C26 is a 1100 gallon vertical chemical storage tank in natural white color. It is FDA/NSF certified (ANSI/NSF Standard 61) and manufactured from food-grade virgin polyethylene resin, making it suitable for chemicals rated at 1.9 SG or lower. This tank is designed for above-ground use, with UV-stabilized construction to reduce algae growth, and features a seamless one-piece design for durability and impact resistance. It includes a standard threaded lid and a 2" polypropylene bulkhead outlet fitting with EPDM gasket on the bottom sidewall of the tank. This tank has reinforced domes, flat surfaces for fittings, and a 1.9 specific gravity rating. Installation on a concrete pad or flat, compacted surface is suggested. It comes with a 3-year limited warranty from Snyder Industries.

NOTE: Snyder products located in this category are for less severe chemical applications. These tanks are thinner walled based on higher hoop stress calculation to determine the specific gravity rating. (Note: hoop stress is a dividing factor in the calculation so the higher the hoop stress the thinner the wall of the tank). These tanks come with a predetermined fitting package as outlined in the standard outlet specification below. If the fittings you require are not made of polypropylene or 316 SS with EPDM gaskets, then our Snyder Industrial (ASTM) Tanks should be used. You can view our ASTM certified 1.9 SG rated tanks by clicking this link.

Our published Chemical Resistance Recommendations chart outlines the design information (specific gravity and hoop stress) for several chemical applications.

Capacity: 1100 Gallon
Diameter: 86 in
Height: 55 in
Weight: 160 lbs
Specific Gravity: 1.9
Tank Material: High Density Linear Polyethylene (HDLPE)
Color: Natural White
Black is also an optional color available
10 Inch Fill Opening
Includes a 2" polypropylene bottom bulkhead outlet fitting with EPDM gasket.
Up to four (4) additional polypropylene or 316 Stainless Steel fittings may also be added at an extra charge. Please contact us for details if you need to add more fittings.

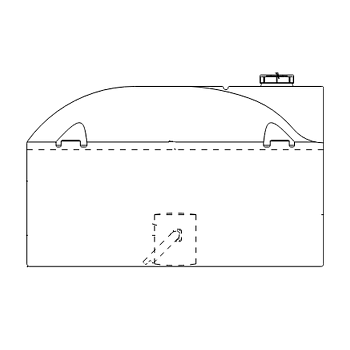

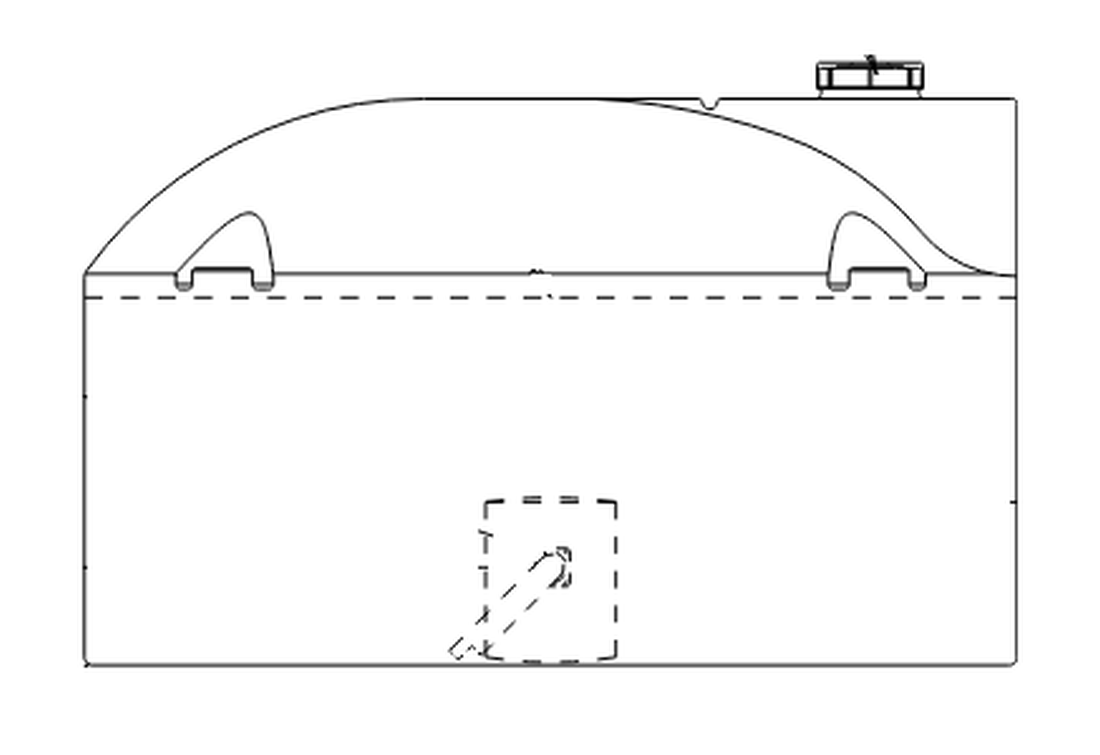

Note: Images may not be 100% accurate, please refer to product drawing for an accurate representation of this tank!

Drawings & Manuals
Please note that all Snyder tanks may have a 1% to 2% variance from the reported actual dimensions.

Snyder Vertical Chemical Storage Tank - 1100 Gallon

Customer Pickup Locations

Snyder Customer Pickup Locations And Addresses
Please Note: Customer pickup is available for a flat $25 fee.

Snyder Warranty Details:

STANDARD LIMITED WARRANTY

Snyder Industries warrants to the purchaser for use that if any manufactured tank product is proven to be defective in material or workmanship within 3 YEARS from the date of original invoice from factory, and Snyder Industries is notified within 15 days after such defect is discovered, Snyder Industries will (at company option) either replace or repair said part. Snyder Industries warrants to the purchaser for use that if any tank fitting, attachment, or accessory product is proven to be defective in material or workmanship within 1 YEAR from the date of original invoice from factory, and Snyder Industries is notified within 15 days after such defect is discovered, Snyder Industries will (at company option) either replace or repair said part. This Snyder Industries Standard Limited Warranty does not apply to damage resulting from misuse, improper application of recommended materials, neglect, material wear, accident, or improper installation or maintenance. Said part will not be considered defective if it substantially fulfills performance specifications. THE FOREGOING STANDARD LIMITED WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES OF MERCHANTABILITY, FITNESS FOR PURPOSE AND OF ANY OTHER TYPE, WHETHER EXPRESSED OR IMPLIED. Snyder Industries neither assumes nor authorizes anyone to assume for it any other obligation or liability in connection with said tank product and will not be liable for incidental or consequential damages. THE REMEDIES STATED HEREIN SHALL BE THE EXCLUSIVE REMEDIES AVAILABLE UNDER THIS STANDARD WARRANTY. CLAIMS UNDER THIS STANDARD LIMITED WARRANTY SHALL BE HANDLED UNDER THE SNYDER INDUSTRIES SERVICE POLICY. Snyder Industries will not be responsible for any charges incurred in repairing or servicing any Snyder Industries product except as such repairs are made at Snyder Industries or by Snyder Industries personnel or as approved in writing from Snyder Industries Customer Service.

Due to the uniqueness of tank applications, Snyder Industries may offer warranties other than the standard warranty. These warranty statements will be in writing from Snyder Industries. The warranty period may be longer than 3 years as in the case for purchased extended warranties, or the warranty period may be shorter than 3 years as in the case for certain chemical/material applications. Please consult Snyder Industries if you have any questions regarding warranty coverage and/or requirements.
