Rhino Air Filter Regulator 1/4\" 1
Lead Time:  3-5 Days
Ships From: Minnesota


Ask a question about this product

Quantity


Model: RTT-4015
Manufacturer: Rhino Tuff Tanks

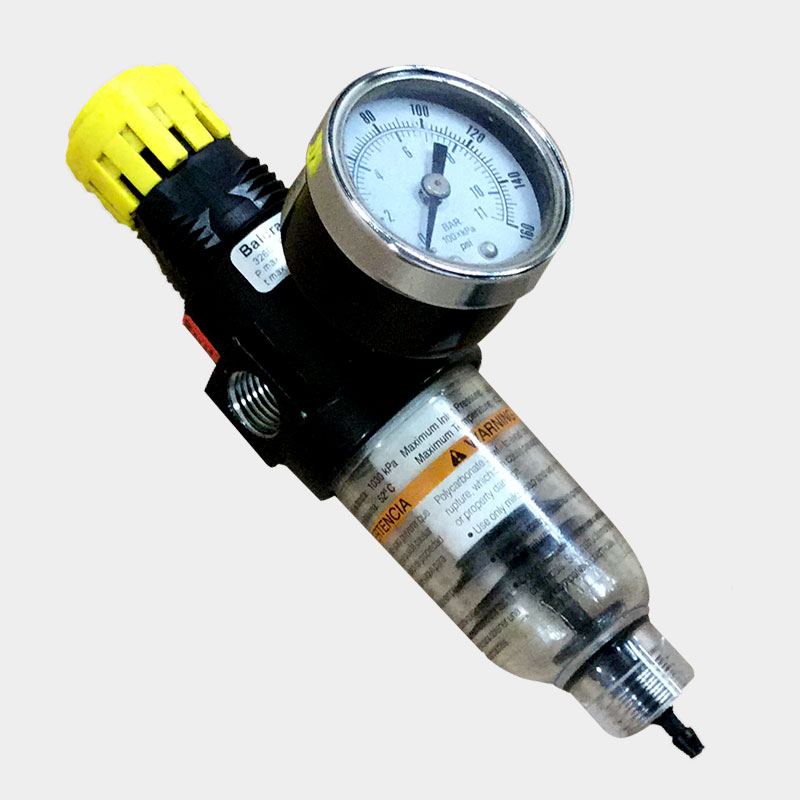

This is the Rhino Air Filter Regulator 1/4" for Rhino Tuff Tanks. Best choice for pump air control. Filter prolongs wear life of pump, automatic drain removes moisture, regulator adjusts pump air supply pressure, and the air line filter removes the moisture and solids from air supply lines for best performance.

FEATURES & BENEFITS
  • Compressed Air Preparation Means Better System Performance
  • Use filters to clean air and remove moisture
  • Lubricators inject oil mist into compressed air to improve performance and life of air-operated pumps
  • Use pressure regulators to control fluid flow rates and to set correct system operating pressures

Mini-series for low volume air applications
  • Small, compact size
  • In-line mounting using standard piping and nipples
  • Effective filtration with automatic drain
  • Accurate pressure regulation, precise lubrication.
  • Ideal for control of pumps for oil bars, spigot dispensers and reduced flow transfer pumps.
  • For pressures up to 150 psi (10.3 bar) and flows of 15 SCFM.

SPECIFICATIONS - MINI SERIES

Filters:
  • Excellent water removal with 5-micron filter element
  • Heavy duty zinc die cast body
  • 0-250 psi (0-17.24 bar) Zinc die cast bowl
  • 0-150 psi (0-10.3 bar) pressure rating
  • Poly bowl Auto drain included

Regulators:
  • Heavy duty zinc die cast body
  • Maximum primary pressure 250 psi (17.24 bar)
  • Adjustment range 2-125 psi (.13-8.62 bar)
  • Pressure gauge standard
  • Full flow gauge ports -1/4"


Ships FREE with purchase of any Rhino Tuff Tank!



Rhino Tuff Tanks
Rhino Tuff Tanks Warranty Details:

Rhino Tuff Tanks offers a limited lifetime warranty on all of their products.

Rhino Tuff Tanks (RTT) stands behind all of our quality products and we will repair or replace at our discretion, any product found to be defective due to a manufacturing defect. The manufacturers warranty does not apply to any products that have been subjected to an accident, adjustment, improper installation, misapplication, misuse, modification, neglect, repair, including but not limited to improper maintenance, or use of unauthorized parts or attachments.
