ATI 95 Gallon Severe Series Split Refueling Tank & Toolbox Combo 1
Powder Coat?:

Lead Time:  5-7 Weeks
Ships From: Florida


Customer Reviews
Share this page!

Manufacturer: Aluminum Tank Industries

The ATI 95 Gallon Severe Series Heavy Duty Split Refueling Tank And Toolbox Combo is designed and built for severe conditions. These tanks are built to handle larger pumps and off-road conditions. These tanks are built with 50% thicker heavy duty aluminum and have a unique internal pump bung support.

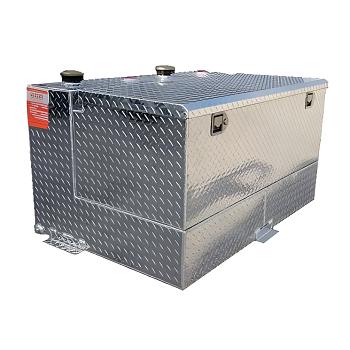

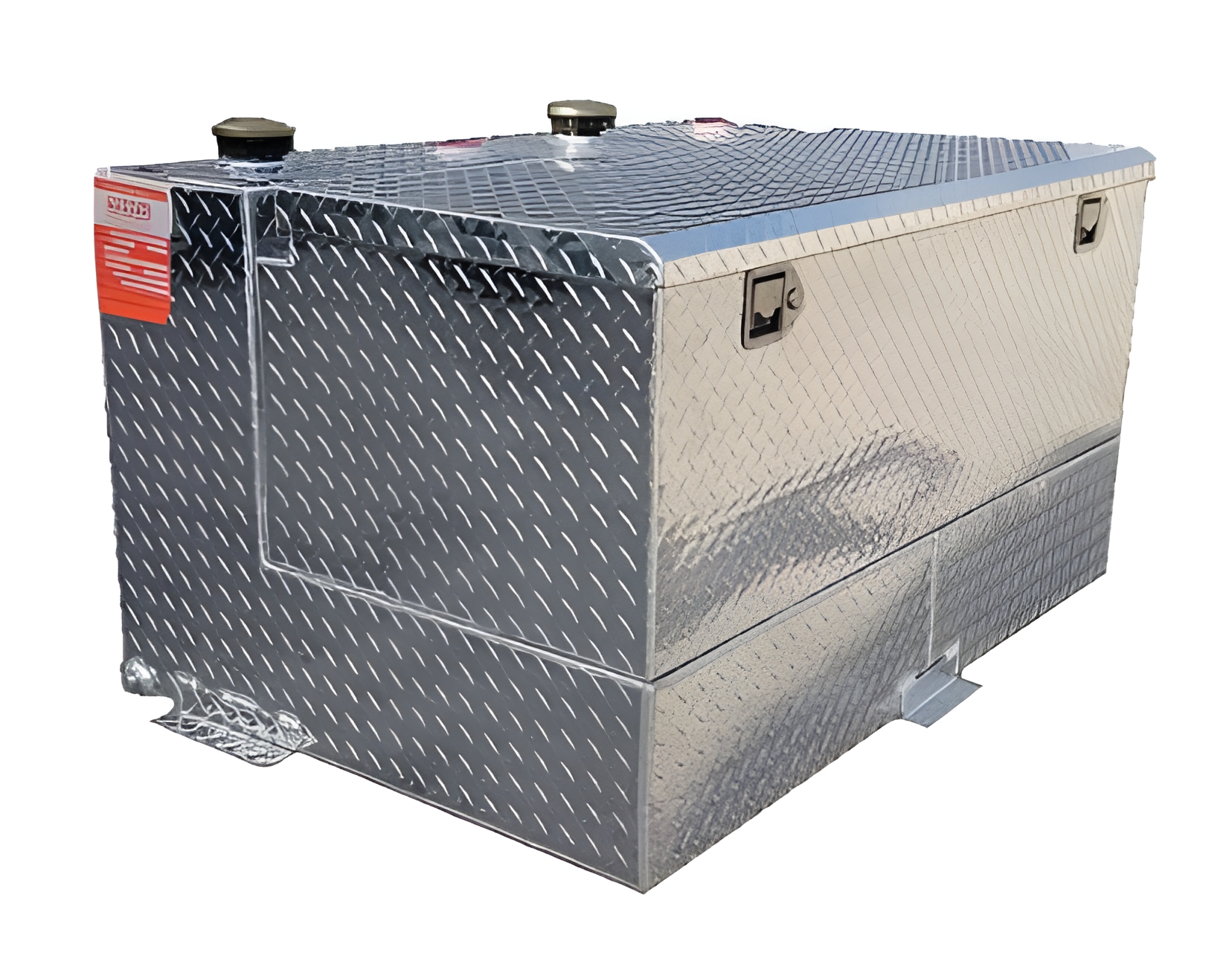

NOTE: The ATI-TTL95SCB is pictured. The severe series tank looks very similar except it has the Lockable SpinSecure vent/prevent caps

The toolbox features:

  • All polished aluminum DP body construction
  • Polished industrial stainless locking handles
  • Automotive style gas shocks for lid
  • Extreme 3 layer lid design
  • Full aluminum piano hinge
  • Aero-beveled lid design

The ATI 95 Gallon Severe Series Split Refueling Tank & Toolbox Combo comes with the following features:

  • Special Permit issued by the US Department of Transportation
  • DOT permit allows transportation while the pump is still attached to the tank
  • Legal for Gas, Diesel, Methanol, Kerosene, Aviation fuel and other liquids
  • Lockable SpinSecure vent/prevent cap, highest grade cap in the industry. The prevent lets the tank take in air while pumping.
  • Fully welded baffles for additional strength and reduce content movement. Internal baffles create smaller compartments inside the tank
  • Unique internal pump bung support. Both bungs are equipped with the supports so you can mount your pumps on both bungs
  • 50% thicker, heavier .190" heavy duty aluminum construction
  • Vents with rollover protection for safety and functionality
  • 5 year warranty
  • Hold down brackets
  • Pressure and leak detection test
  • Clean and free of debris inside and outside of the tank

Please be aware that tanks/toolboxes may have mounting tabs that extend the dimensions of the tank by 1 1/2 inches on each side. This is NOT accounted for when viewing the displayed dimensions of the tanks/toolboxes. Please be sure to account for this when measuring for fitment of your tank/toolbox.

Detailed Information

  • (A) Height: 26 Inches
  • (B) Length: 48 1/2 Inches
  • (C) Width: 33 Inches
  • Toolbox: 48" L x 22" W x 17" H
  • Gallons: 46 / 46 (Split)
ATI Rectangle Shape Tanks
Aluminum Tank Industries
Aluminum Tank Industries (ATI) Warranty Details:

Aluminum Tank Industries, Inc. warrants all products to be free of defects in material or workmanship for a period of 1 year from invoice ship date from our warehouse. Severe Series refueling tanks are covered for 5 years. Standard duty tanks are designed for use with transfer pumps up to 30 lbs. Installing a pump over 30 lbs on a standard duty tank will void warranty. A Severe Series tank is required if using a transfer pump over 30 lbs. If upon our inspection we deem the item to be defective, Aluminum Tank Industries, Inc. will determine whether to repair or replace the defective item. It is the customers responsibility to ship the item to Aluminum Tank Industries, Inc. No cost for labor, installation, or missing contents will be reimbursed. Damages due to shipping and handling, improper installation, abuse - intentional or accidental, or normal wear and tear are not covered by this warranty. Warranty is void if the tank has been altered.
