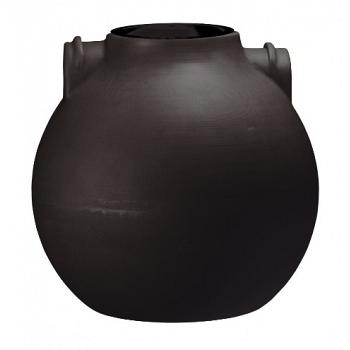

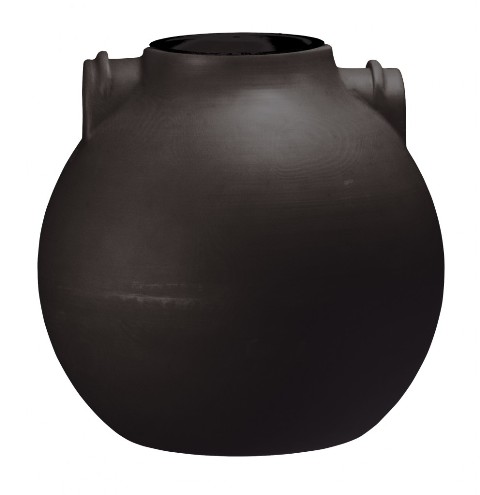

This is the Norwesco Spherical Pump Tank - 500 Gallon.
Norwesco spheres are designed to be used as a holding tank or pump tank. Unlike our ribbed tanks, these tanks may remain in the ground when empty. However, they should not be installed in high water table or high clay areas. These tanks are furnished with manhole covers and include a molded-in elevated pump stand on the bottom of the tank.
Drawings & ManualsPlease note that all Norwesco tanks may have a 1% to 2% variance from the reported actual dimensions. Norwesco Spherical Pump Tank - 500 Gallon Norwesco Pump Tank - Installation InstructionsCustomer Pickup Locations Norwesco Customer Pickup Locations And Addresses
- Rotationally molded rugged, one-piece tank with no seams to leak.
- No assembly required, reducing installation time and effort.
- No special backfill or water filling required during installation.
- May be pumped dry during pump-outs.
- Suitable for use as a septic tank or pump tank and may also be used for non-potable water.
- 1 x 20" Manhole
- Single compartment
- 64" Diameter x 67" Height
- 169 lbs.
- Across the United States and Canada there are a number of health code requirements that Norwesco tanks must meet. These codes are regulated by the state, county or province where you are located. To aid you in determining which tank you need, please consult with your local health department.
- Note: Images may not be 100% accurate as tank can vary based on model, fitting locations and accessories
Please Note: Customer pickup is available for a flat $25 fee.
Norwesco Septic Tank Warranty Details:
Failure to comply with the points below voids warranty.
A. Tanks are not fire-resistant. Do not store them near an open flame or heat in excess of 180 F.
B. Do not install any tank under the path of vehicles or heavy equipment.
C. Do not leave Low Profile septic tanks empty for extended periods of time.
D. Low Profile septic tanks and cisterns are designed only for use as underground tanks.
E. Low Profile septic tanks and Low Profile cisterns may be used as holding tanks or for pumping applications where permitted by local codes.
F. Low Profile natural colored cisterns are made of resins that meet FDA specifications for the storage of drinking water and can be used for that application.
G. Protect the tank from sharp objects which could puncture it and cause leakage.
H. Where saturated soil or seasonal high water tables are indicated between the bottom of the tank and the ground surface, see separate Supplemental Installation Instructions on our website.
I. For installations requiring counter-buoyancy measures; please refer to Counter-Buoyancy Instruction on our website.
J. Maximum temperature of liquid entering tank is 120 F.
K. Maximum bulkhead fitting size is 4". It is not advised to use this plastic underground tank for any application other than typical household sewage. Such uses would void product warranty.
Manufacturer warrants that if this part is proven to be defective in material or workmanship within three (3) years from the date of manufacture, manufacturer will (at company's option) either replace or repair said part. This standard limited warranty does not apply to damages resulting from misuse, improper application of recommended materials, accident, or improper installation or maintenance. Remedy to the buyer is limited to
the replacement of any defective product (or its component where applicable), F.O.B. point of manufacture. The buyer's remedy under this warranty does not include any other direct or indirect consequential damages which result from defects in material and/or workmanship of its products.
