Fill-Rite FR113 Rotary Hand Pump, Telescoping Steel Suction Pipe, Pail Spout

Model/SKU: FR113
Manufacturer Part # FR113

Description

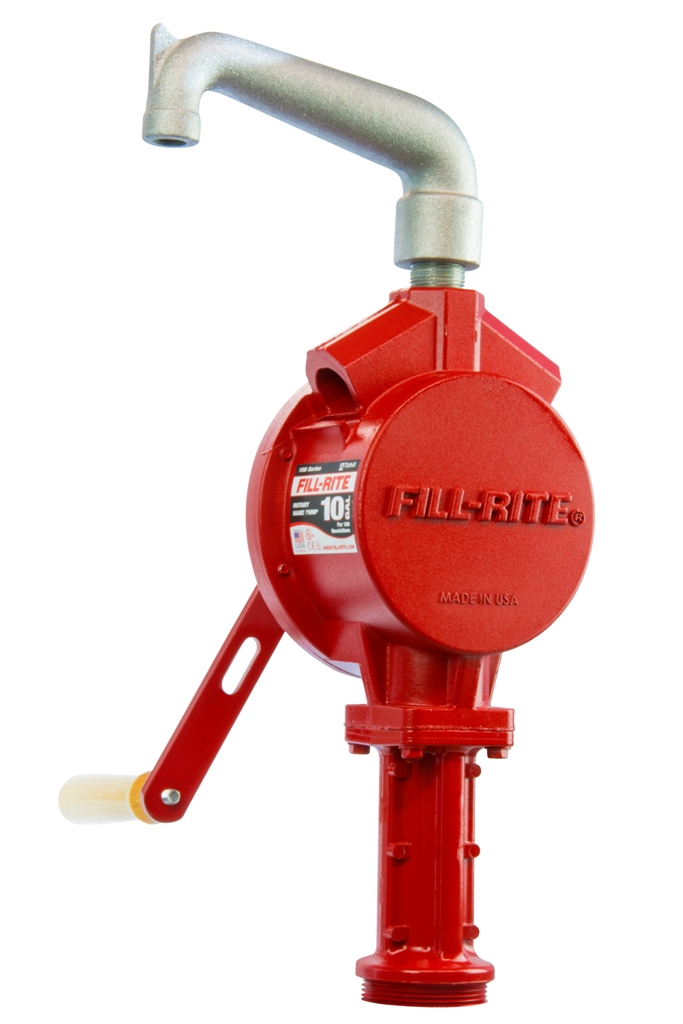

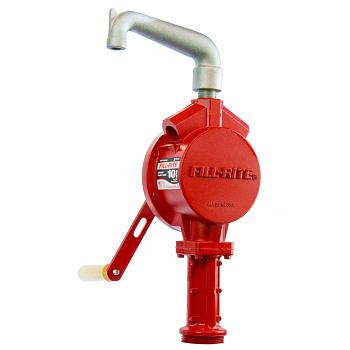

The Fill-Rite FR113 is a rotary vane hand pump sold with a pail spout and a telescoping suction pipe, without a discharge hose. It bung-mounts on a barrel or tank and delivers 10 gallons (38 liters) per 100 revolutions, so you can pour fuel by hand into a pail or container when there is no power.

The heavy-duty cast-aluminum design is made for daily drum and tank use. Flow can be reversed to fuel or drain a tank, the handle can be padlocked, and a strainer plus anti-siphon protection help keep debris and spills in check. The kit includes a 20 inch to 34-1/2 inch steel telescoping suction pipe, a 3/4 inch cast aluminum pail spout, and a roll of PTFE tape. The inlet is 1 inch female NPT, the outlet is 3/4 inch female NPT, and the pump threads onto a 2 inch NPT bung. It is listed with ATEX, CE, and UL certifications and is backed by a 2-year warranty.

Key Specs
  • Model: FR113
  • Type: Rotary vane hand pump with pail spout
  • Flow rate: 10 gallons / 38 liters per 100 revolutions
  • Mounting: 2" NPT bung mount
  • Connections: 1" female NPT inlet, 3/4" female NPT outlet
  • Compatible fluids: Diesel, gasoline, kerosene, mineral spirits, heptane, and Stoddard solvents
  • Duty cycle: Continuous duty (hand-operated); self-priming
  • Included: 20" to 34-1/2" steel telescoping suction pipe; 3/4" cast aluminum pail spout; PTFE tape
  • Certifications: ATEX, CE, and UL
  • Assembled weight: 9.8 lbs
  • Warranty: 2 years
Common Uses

Hand-pumping fuel from a 15, 30, or 55 gallon drum or a small tank into a pail or open container when you do not need a hose, or when you already have a discharge hose of your own.
