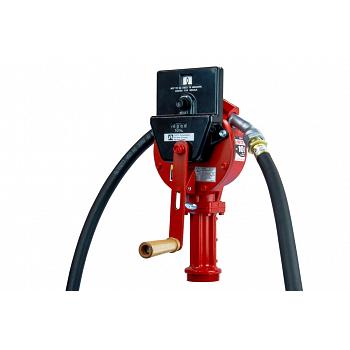

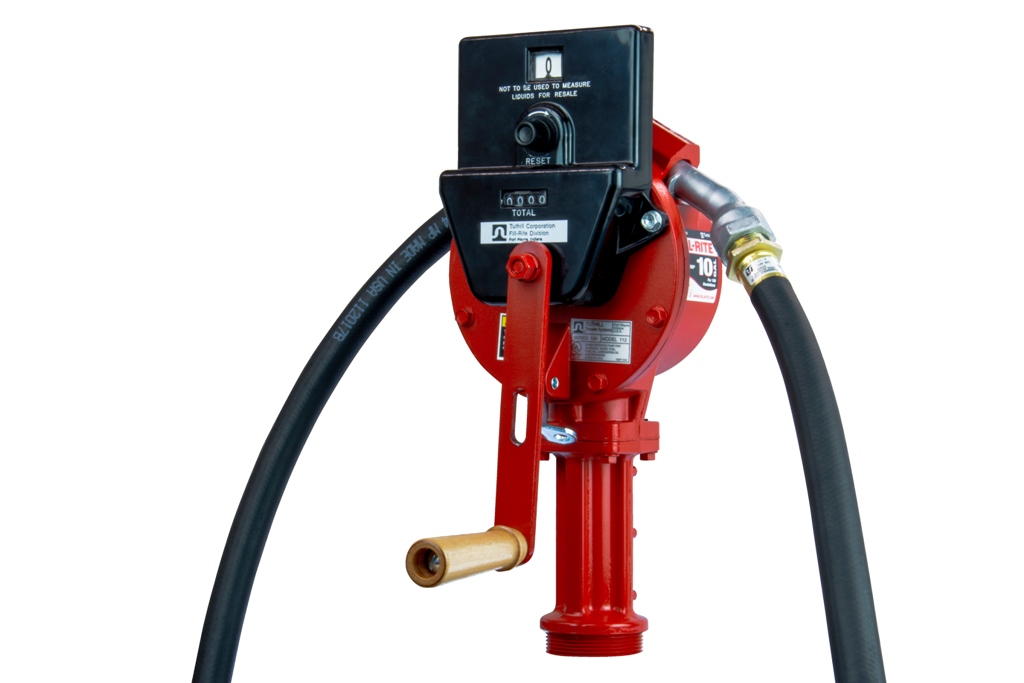

The Fill-Rite FR112C is a rotary vane hand pump sold as a complete kit with a gallon counter, an 8 foot hose, nozzle spout, and telescoping suction pipe. It bung-mounts on a barrel or tank and delivers 10 gallons (38 liters) per 100 revolutions, so you can move and measure fuel by hand when there is no power.
The heavy-duty cast-aluminum design is made for daily drum and tank use. The built-in gallon counter tracks how much you pump. Flow can be reversed to fuel or drain a tank, the handle can be padlocked, and a strainer plus anti-siphon protection help keep debris and spills in check. The kit includes a 20 inch to 34-1/2 inch steel telescoping suction pipe, a 5/8 inch x 8 foot UL listed hose with a static ground wire, a 3/4 inch cast aluminum nozzle spout, and a roll of PTFE tape. The inlet is 1 inch female NPT, the outlet is 3/4 inch female NPT, and the pump threads onto a 2 inch NPT bung. It is listed with ATEX, CE, and UL certifications and is backed by a 2-year warranty.
Hand-pumping and measuring fuel in gallons from a 15, 30, or 55 gallon drum or a small tank into equipment, job-site containers, or smaller tanks when no electric power is available.
