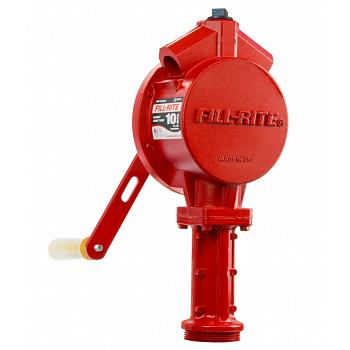

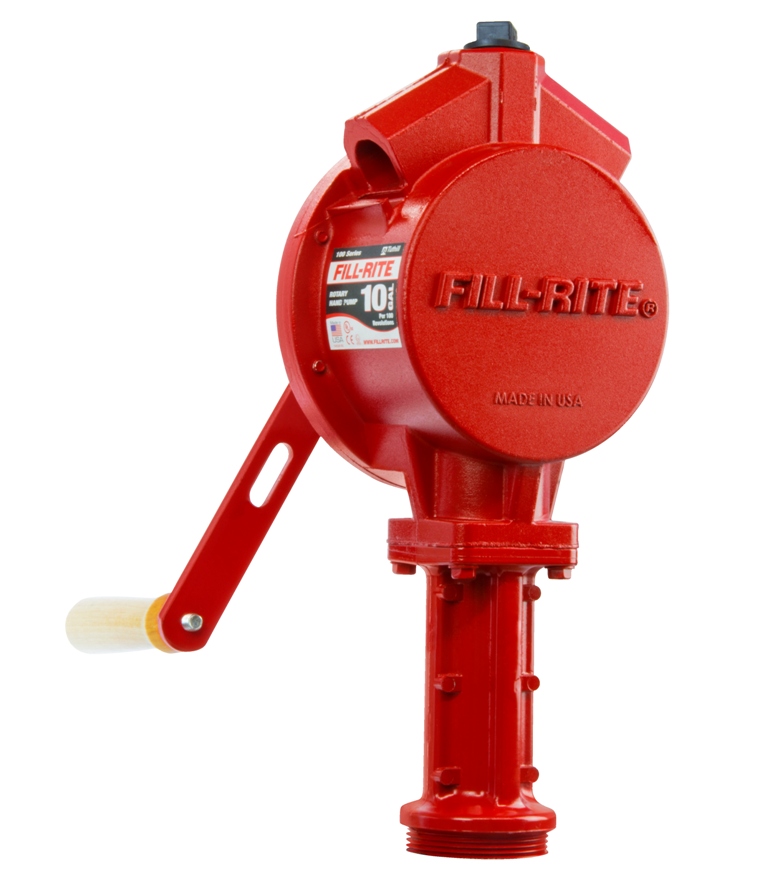

Fill-Rite FR110 Rotary Hand Pump without Accessories

Model/SKU: FR110
Manufacturer Part # FR110

Description

The Fill-Rite FR110 is a rotary vane hand pump sold as the pump only, without a hose, nozzle, or suction pipe. It bung-mounts on a barrel or tank and delivers 10 gallons (38 liters) per 100 revolutions, so you can move fuel by hand when there is no power.

The heavy-duty rotary design is made for daily drum and tank use, and the 2 inch NPT bung mount threads onto a standard drum opening. The inlet is 1 inch female NPT and the outlet is 3/4 inch female NPT, so you can add the suction pipe, hose, and spout that fit your setup. It is listed with ATEX, CE, and UL certifications and is backed by a 2-year warranty.

Key Specs
  • Model: FR110
  • Type: Rotary vane hand pump, pump only
  • Flow rate: 10 gallons / 38 liters per 100 revolutions
  • Mounting: 2" NPT bung mount
  • Connections: 1" female NPT inlet, 3/4" female NPT outlet
  • Compatible fluids: Diesel, gasoline, kerosene, mineral spirits, heptane, and Stoddard solvents
  • Duty cycle: Continuous duty (hand-operated)
  • Included: Pump only; no suction pipe, hose, or nozzle
  • Certifications: ATEX, CE, and UL
  • Assembled weight: 9.6 lbs
  • Warranty: 2 years
Common Uses

Hand-pumping fuel from a 15, 30, or 55 gallon drum or a small tank when you want to choose your own suction pipe, hose, and spout, or when replacing the pump head on an existing FR110-series installation.



Detailed Information

PDF  FR110 Manual
