Model: ATI-TTR92FCB8
Manufacturer: Aluminum Tank Industries

The ATI 92 Gallon Refueling Tank And Toolbox Combo with a 8 Gallon Per Minute GPI EZ8 pump! Refueling Tank and Toolbox combos are great, secure solutions for tool and equipment storage as well as on the go fueling! The toolbox features:

  • Diamond plate .125" aluminum construction. (Heavy duty .190" aluminum is also available - please contact us for a quote!)
  • All polished aluminum DP body construction
  • Includes GPI EZ8 Pump (8 gallons per minute)
  • Polished industrial stainless locking handles
  • Automotive style gas shocks for lid
  • Extreme 3 layer lid design
  • Full aluminum piano hinge
  • Aero-beveled lid design


All of our Refueling Tanks come with the following features:

  • Special Permit issued by the US Department of Transportation
  • Legal for Gas, Diesel, Methanol, Kerosene, Aviation fuel and other liquids
  • Commercial grade lockable vent/prevent filler cap
  • Fully baffled to reduce movement of contents
  • 2" NPT reinforced bung for superior strength
  • 3/8" npt drain
  • Hold down brackets
  • Pressure and leak detection test
  • Clean and free of debris inside and outside of the tank
  • 1 year limited warranty


Please be aware that tanks/toolboxes may have mounting tabs that extend the dimensions of the tank by 1 1/2 inches on each side. This is NOT accounted for when viewing the displayed dimensions of the tanks/toolboxes. Please be sure to account for this when measuring for fitment of your tank/toolbox.

Detailed Information

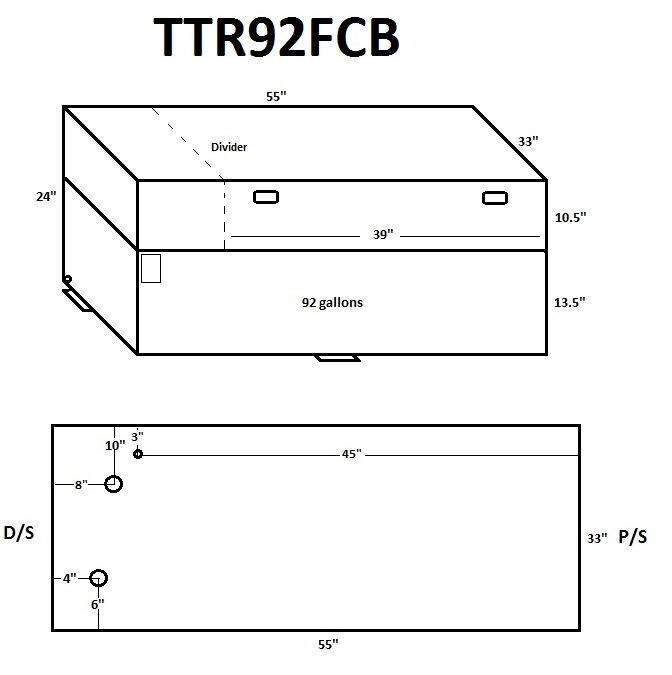

ATI TTR92FCB Drawing

PDF  Refueling Tank Installation Instructions

Need a custom tank? No problem! Please click here to select a custom tank style and provide us with your requirements!
Aluminum Tank Industries
Aluminum Tank Industries (ATI) Warranty Details:

Aluminum Tank Industries, Inc. warrants all products to be free of defects in material or workmanship for a period of 1 year from invoice ship date from our warehouse. Severe Series refueling tanks are covered for 5 years. Standard duty tanks are designed for use with transfer pumps up to 30 lbs. Installing a pump over 30 lbs on a standard duty tank will void warranty. A Severe Series tank is required if using a transfer pump over 30 lbs. If upon our inspection we deem the item to be defective, Aluminum Tank Industries, Inc. will determine whether to repair or replace the defective item. It is the customers responsibility to ship the item to Aluminum Tank Industries, Inc. No cost for labor, installation, or missing contents will be reimbursed. Damages due to shipping and handling, improper installation, abuse - intentional or accidental, or normal wear and tear are not covered by this warranty. Warranty is void if the tank has been altered.
