ATI 47 Gallon Refueling Tank & Toolbox Combo

Optional Accessories

Add Lockable Tank Cap?:

Powder Coat?:

Lead Time: 3-4 Weeks
Ships From: FL

Quantity

Ask A Question

See Our Reviews!

Description
Warranty
FAQ

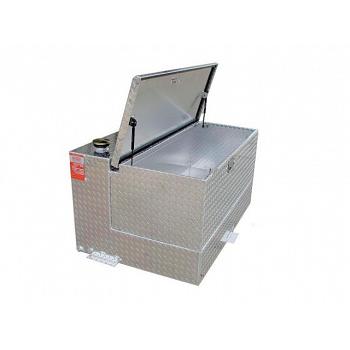

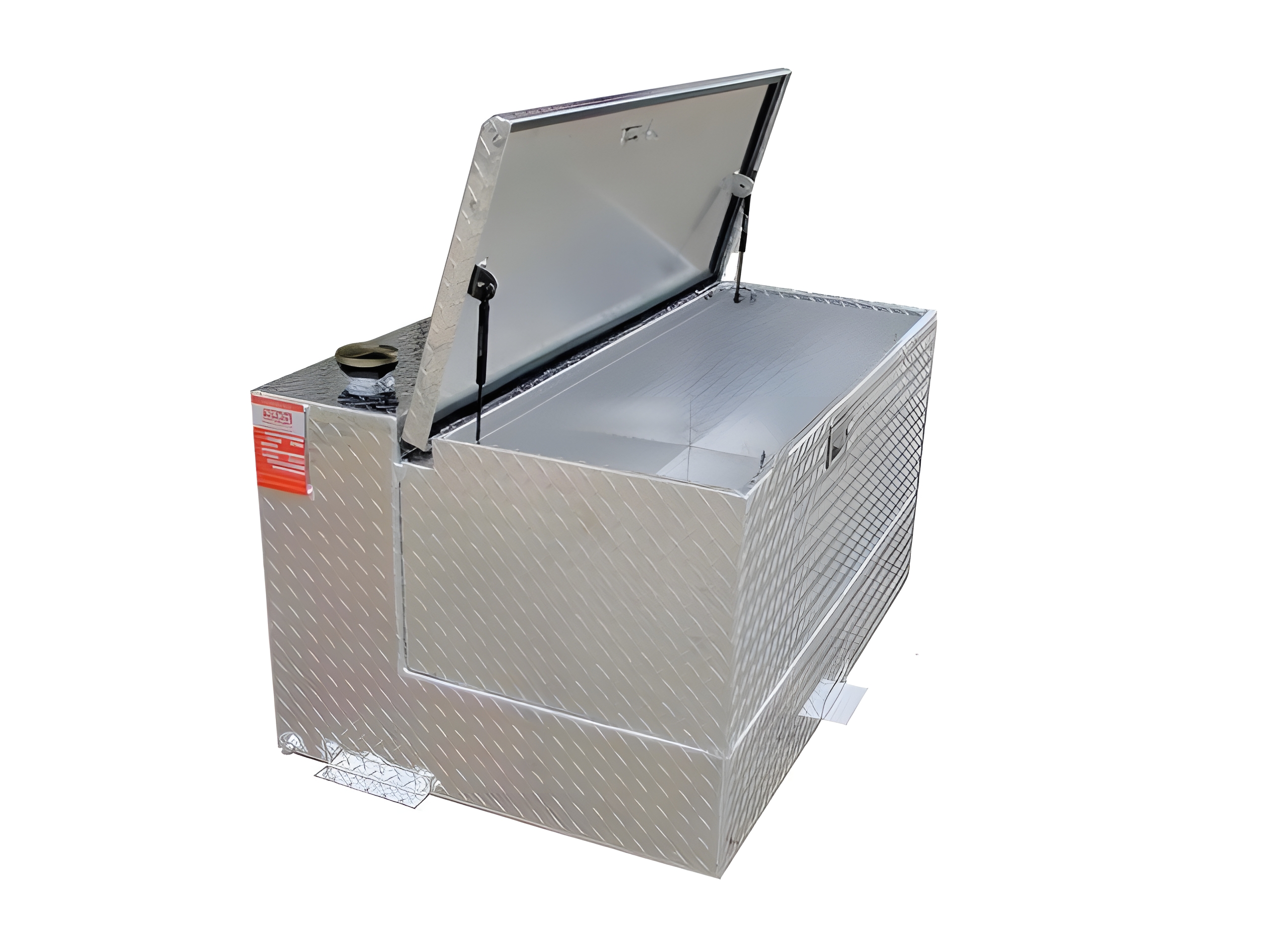

ATI 47 Gallon Refueling Tank & Toolbox Combo

Model/SKU: ATI-TTL50CB
Manufacturer Part # TTL50CB

Description

The ATI 47 Gallon Refueling Tank And Toolbox Combo is the ultimate fuel and tool storage solution. Refueling Tank and Toolbox combos are great, secure solutions for tool and equipment storage as well as on the go fueling! The toolbox features:

Diamond plate .125" aluminum construction. (Heavy duty .190" aluminum is also available - please contact us for a quote!)
All polished aluminum DP body construction
Polished industrial stainless locking handles
Automotive style gas shocks for lid
Extreme 3 layer lid design
Full aluminum piano hinge
Aero-beveled lid design
NOTE: The back and bottom side of this tank is made with smooth aluminum and is not diamond plated

All of our Refueling Tanks come with the following features:

Special Permit issued by the US Department of Transportation
Legal for Gas, Diesel, Methanol, Kerosene, Aviation fuel and other liquids
Commercial grade lockable vent/prevent filler cap
Fully baffled to reduce movement of contents
Two-2" npt reinforced bungs for superior strength
3/8" npt drain
Hold down brackets
Pressure and leak detection test
Clean and free of debris inside and outside of the tank
1 year limited warranty

Please be aware that tanks/toolboxes may have mounting tabs that extend the dimensions of the tank by 1 1/2 inches on each side. This is NOT accounted for when viewing the displayed dimensions of the tanks/toolboxes. Please be sure to account for this when measuring for fitment of your tank/toolbox.

Detailed Information

Refueling Tank Installation Instructions

Need a custom tank? No problem! Please click here to select a custom tank style and provide us with your requirements!

ATI Fuel Tank Tool Box Sizes

Frequently Asked Questions

What's the overall dimensions of this combo?

The tank is 36 1/4" from driver to passenger side. However, there are mounting tabs that stick out about 1 1/2" on each side, total length is 39 1/4". From cab to tailgate is 30" with a 1 1/2" mounting tab, 31 1/2" width total. Height is 18".

Aluminum Tank Industries (ATI) Warranty Details:

Aluminum Tank Industries, Inc. warrants all products to be free of defects in material or workmanship for a period of 1 year from invoice ship date from our warehouse. Severe Series refueling tanks are covered for 5 years. Standard duty tanks are designed for use with transfer pumps up to 30 lbs. Installing a pump over 30 lbs on a standard duty tank will void warranty. A Severe Series tank is required if using a transfer pump over 30 lbs. If upon our inspection we deem the item to be defective, Aluminum Tank Industries, Inc. will determine whether to repair or replace the defective item. It is the customers responsibility to ship the item to Aluminum Tank Industries, Inc. No cost for labor, installation, or missing contents will be reimbursed. Damages due to shipping and handling, improper installation, abuse - intentional or accidental, or normal wear and tear are not covered by this warranty. Warranty is void if the tank has been altered.
