Model: ATI-AUX42RIK
Manufacturer: Aluminum Tank Industries

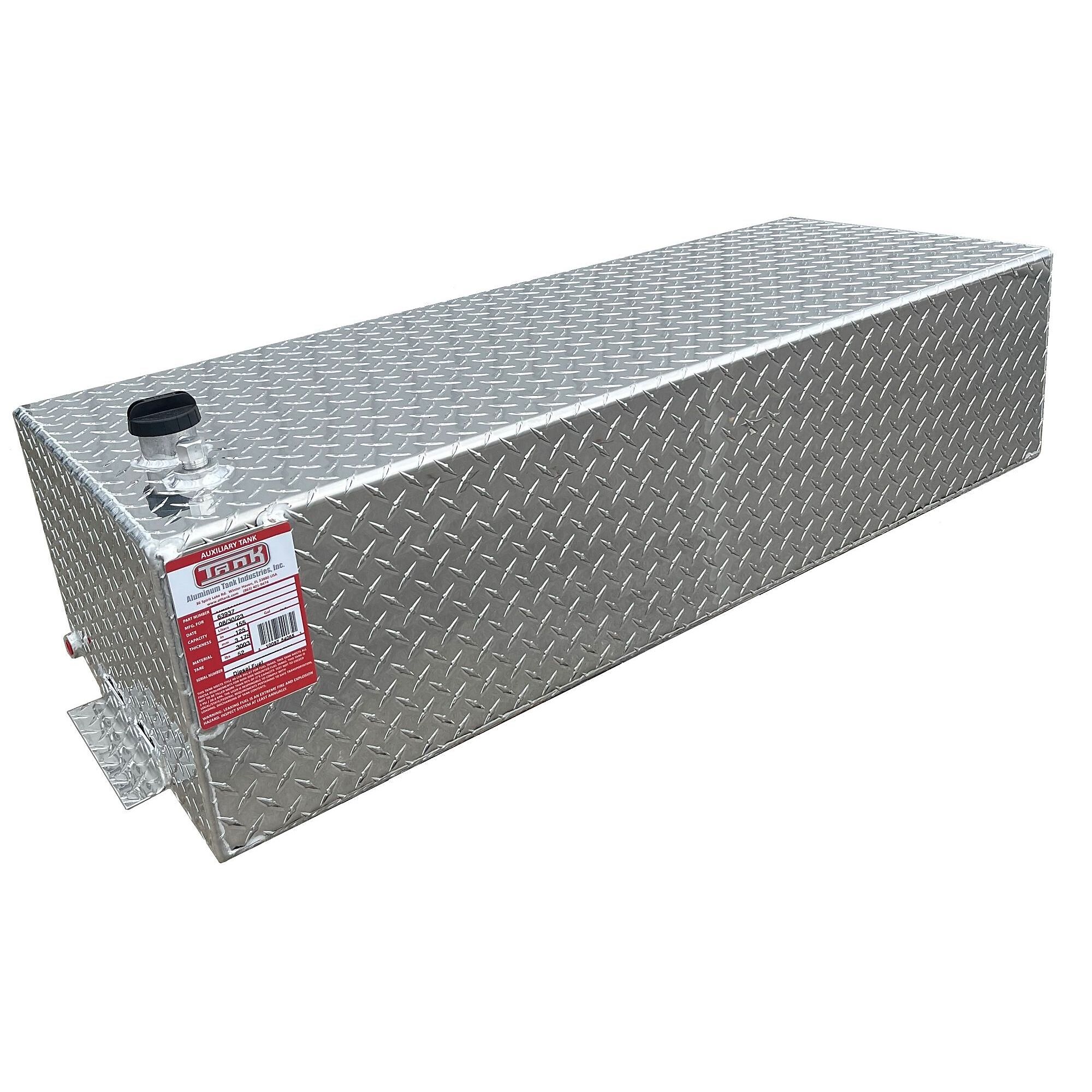

The ATI 42 Gallon Rectangle Diesel Auxiliary Fuel Tank is an excellent addition to your work truck.

Diesel installation kit available for all Ford, Dodge and GM models (Select the correct model from the drop down box above).

The rectangle aluminum Auxiliary Tank is the most popular in the lineup. Our standard diesel auxiliary fuel tanks range from 30 to 80 gallons.

The included diesel FUEL SHOTZ installation kit can be installed in less than an hour. The unique system connects the auxiliary tank to the factory tank via the factory filler. The auxiliary tank keeps the factory tank full. When the auxiliary tank is empty your factory fuel gauge will move off the full mark. The system installs quickly and easily. No wires or switches to install. The system has rollover protection on the tank and on the factory fill neck adapter. Detailed Instructions are supplied with the Fuel Shotz installation kit.

Features:

  • Diamond plate .125" aluminum construction. (Heavy duty .190" aluminum is also available - please contact us for a quote!)
  • Quick easy installation
  • Tanks are baffled to reduce movement of contents
  • No wires or switches to install
  • Rollover protection
  • Automotive style fill cap
  • Hold down brackets
  • Pressure and leak detection test
  • Clean and free of debris inside and outside of the tank
  • 1 year limited warranty


Please be aware that tanks/toolboxes may have mounting tabs that extend the dimensions of the tank by 1 1/2 inches on each side. This is NOT accounted for when viewing the displayed dimensions of the tanks/toolboxes. In addition, the fuel cap adds an additional 2 1/2 inches to the total height of the tank. Please be sure to account for this when measuring for fitment of your tank/toolbox.

Detailed Information

PDF  Auxiliary Tank Installation Instructions

Need a custom tank? No problem! Please click here to select a custom tank style and provide us with your requirements!

ATI Diesel Fuel Tank Sizes

ATI Rectangle Shape Tanks
Aluminum Tank Industries
Aluminum Tank Industries (ATI) Warranty Details:

Aluminum Tank Industries, Inc. warrants all products to be free of defects in material or workmanship for a period of 1 year from invoice ship date from our warehouse. Severe Series refueling tanks are covered for 5 years. Standard duty tanks are designed for use with transfer pumps up to 30 lbs. Installing a pump over 30 lbs on a standard duty tank will void warranty. A Severe Series tank is required if using a transfer pump over 30 lbs. If upon our inspection we deem the item to be defective, Aluminum Tank Industries, Inc. will determine whether to repair or replace the defective item. It is the customers responsibility to ship the item to Aluminum Tank Industries, Inc. No cost for labor, installation, or missing contents will be reimbursed. Damages due to shipping and handling, improper installation, abuse - intentional or accidental, or normal wear and tear are not covered by this warranty. Warranty is void if the tank has been altered.
