Bushman Leaf Eater Advanced Rain Head - 4\" Round 1Bushman Leaf Eater Advanced Rain Head - 4\" Round 2
Lead Time:  2-3 Days
Ships From: Nebraska


Ask a question about this product

Quantity

Minimum Quantity: 2


Model: BM-39014
Manufacturer: Bushman USA

The Leaf Eater Advanced Rain Head (4" Round Model) is the next generation Rain Head, featuring the new patented Clean Shield (single screen) technology and VH Pivot outlet. The Leaf Eater Advanced Rain Head is available for 4" downpipes and prevents debris from entering the Rain Harvesting system, which improves water quality and reduces tank maintenance. The single screen incorporates Clean Shield technology which deflects leaves and debris away from the flow of water. This minimizes maintenance and enhances catchment efficiency. This Rain Head incorporates a VH Pivot outlet that swivels to suit vertical or horizontal downpipes. The Leaf Eater Advanced can also be used as a debris removing device even when rainwater is not being collected.

Features and Benefits
  • Compact, versatile rain head for quick and easy installation
  • Patented single screen technology for advanced debris shedding (Clean Shield)
  • Minimal maintenance
  • Pivot the outlet to suit vertical or horizontal (rear outlet) downpipes - variety of installation options in one product (VH Pivot)
  • High flow rate performance
  • Superior catchment efficiency at low and high flow rates
  • Single screen with 0.955mm aperture mosquito proof stainless steel mesh
  • Available in 90mm or 100mm outlet


NOTE: THIS ITEM IS ONLY AVAILABLE WHEN YOU ALSO PURCHASE A TANK.

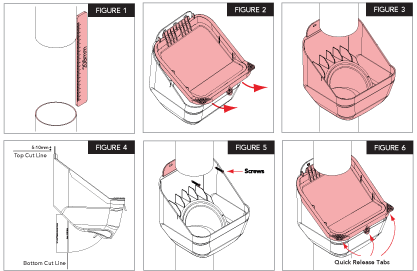

Gutter and Mid-Mount Installation

1. Gutter: Measure 10 1/2" from the bottom of the existing gutter pop and remove this section of downspout. Ensure the cut edge is clean and smooth. Mid-Mount: Remove 10 1/2" of downspout where the Leaf Eater Advanced is to be situated. Ensure all cut edges are clean and smooth. (figure 1)

2. Using the quick release tabs remove the Clean Shield screen by lifting it up and then out. (figure 2)

3. Insert the Leaf Eater Advanced by sliding it up over the cut section and then down into position. The Leaf Eater Advanced outlet should be slid firmly onto the bottom down pipe until it can be pushed no further. (figure 3)

4. Screw the Leaf Eater Advanced into position through the screw slots provided. Ensure appropriate screws and anchors (if required) are used. (figure 5)

5. Insert the Clean Shield screen into the Leaf Eater Advanced. Ensure the Clean Shield screen is sitting firmly in place and check installation is secure. (figure 6)

Leaf Eater Advanced

Horizontal (Rear Outlet) Installation

1. Using the quick release tabs remove the Clean Shield screen by lifting it up and then out. (Figure 2)

2. Swivel the outlet to the horizontal position - some force may be required.

3. Position the Leaf Eater Advanced next to existing pipework, mark and cut top and bottom cut lines as per figure 4. Ensure the cut edge is clean and smooth.

4. Insert the Leaf Eater Advanced by sliding the rear outlet into the horizontal pipe. The back fixing plate must sit behind the top section of downspout. (figure 3)

5. Screw the Leaf Eater Advanced into position through the screw slots provided. Ensure appropriate screws and anchors (if required) are used. (figure 5)

6. Insert the Clean Shield screen into the Leaf Eater Advanced. Ensure the Clean Shield screen is sitting firmly in place and check installation is secure. (figure 6)

Bushman USA
Bushman Warranty Details:

Bushman Water Harvesting Corporation (dba Bushman USA) Limited Warranty BUSHMAN WATER HARVESTING CORPORATION (dba Bushman USA) (Seller) warrants its water storage tanks sold in the United States against defects in materials or workmanship for three (3) years from the date of purchase. The Limited Warranty is dependent upon installation in accordance with Seller's specifications and the use of Seller's components, accessories and designated application practices exclusively. If a defect is discovered in normal use of a tank in the manner intended, Seller will, at its sole election, repair or replace the tank. In no event will Seller's responsibility exceed the purchase price of the tank received by Seller. Additional requirements or terms of this Limited Warranty are:

1. The Limited Warranty extends to the original purchaser only and is not transferable by operation of law or otherwise.

2. The Limited Warranty is limited to the repair or replacement of the tank, at the sole discretion of Seller. Seller is not liable for any damage to property or any other associated costs that may occur when repair or replacement of the tank is carried out. Repair work is undertaken at ground level, so tanks that are located on stands must be brought down to ground level before Seller can commence repair work.

Note that expenses such as landscaping, plumbing, electrical, costs of lifting equipment and hire of additional labor are at purchaser's expense. Bringing tanks down from stands for repair work is also at the purchaser's expense.

3. The Limited Warranty does not apply to the tank color, which may in time fade or change.

4. The Limited Warranty applies to the one piece polyethylene structure of the tank and does not extend to fittings such as the strainer, outlet, valve, tap, overflow or any other fittings, accessories or ancillary components. Some fittings, accessories and ancillary components are covered under a separate limited warranty program, which is available upon request.

5. The Limited Warranty on water tanks is for the storage of water only, at a water temperature not exceeding 73F/23C. The Limited Warranty does not apply to tank damage due to freezing.

6. The Limited Warranty on water tanks is for storage of water on the site only. Transporting water in water tanks voids the Limited Warranty.

7. The Limited Warranty is void and will not be binding upon Seller in the event of damage to unsecured tanks through blowing away, or by abuse, improper installation, unsound base, or unauthorized modifications to the tank.

Note that all installation instructions must be followed and in particular the fitting of flexible hoses.

8. Seller must be notified of any defect or fault (using a Seller-approved claim form) within seven (7) days of it occurring. Seller must be given the opportunity to inspect the tank within thirty (30) days of such notification, otherwise the Limited Warranty is void.

9. THIS LIMITED WARRANTY IS THE EXCLUSIVE WARRANTY PROVIDED BY SELLER AND IS IN LIEU OF, AND SELLER DISCLAIMS, ALL OTHER WARRANTIES, EXPRESS AND IMPLIED, INCLUDING, WITHOUT LIMITATION, (I) ANY IMPLIED WARRANTY OF MERCHANTABILITY OR OF FITNESS FOR A PARTICULAR PURPOSE, (II) ANY IMPLIED WARRANTY ARISING FROM COURSE OF PERFORMANCE, COURSE OF DEALING OR USAGE OF TRADE, (III) ANY OTHER OBLIGATIONS OR LIABILITIES WHATSOEVER, WHETHER IN CONTRACT, WARRANTY OR TORT, OR BY STATUTE OR OTHERWISE FOR ANY NONCONFORMANCE, DEFECT, DEFICIENCY, FAILURE, MALFUNCTION OR FAILURE TO PERFORM, (IV) STRICT LIABILITY OR PRODUCT LIABILITY, AND (V) ANY DIRECT, INDIRECT, SPECIAL, CONSEQUENTIAL AND INCIDENTAL DAMAGES OF ANY NATURE WHATSOEVER.
