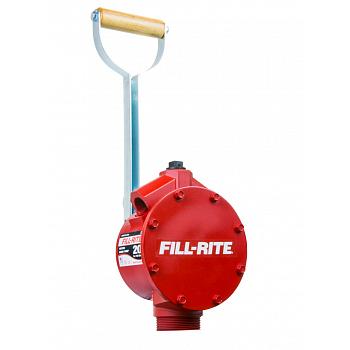

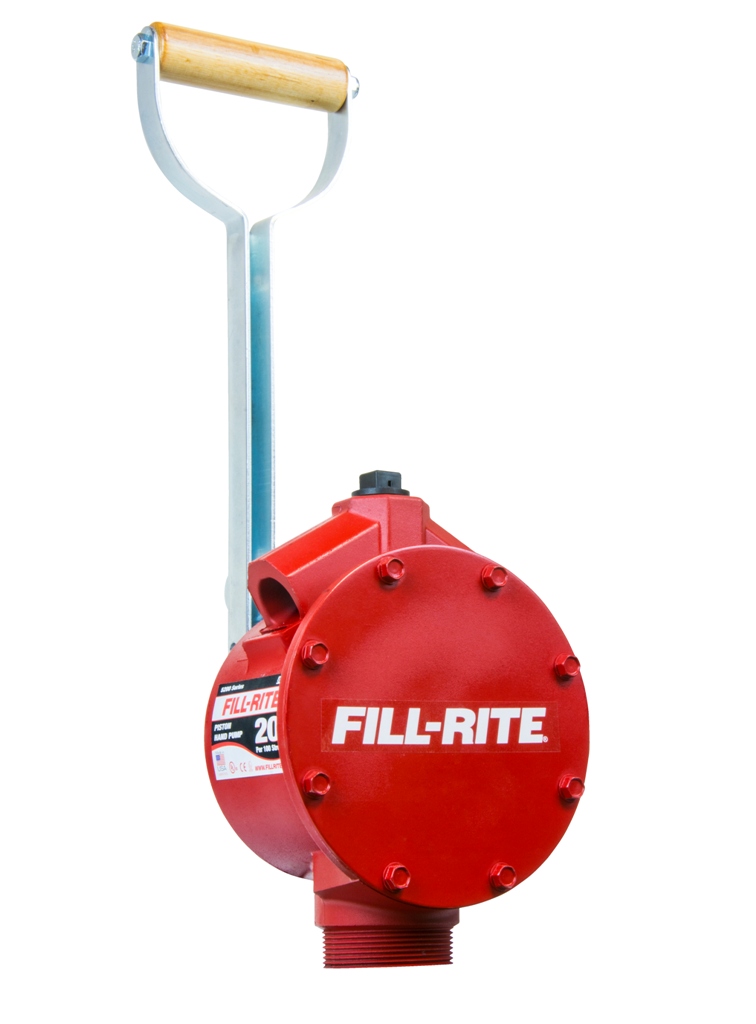

Fill-Rite FR150 Piston Hand Pump Only

Model/SKU: FR150
Manufacturer Part # FR150

Description

The Fill-Rite FR150 is a piston hand pump sold as the pump only, without a hose, nozzle, or suction pipe. It bung-mounts on a barrel or tank and delivers 20 gallons (75 liters) per 100 strokes, so you can move fuel by hand when there is no power.

Double-piston action is built for faster filling with less effort, and a vacuum breaker helps keep the discharge flow steady. The cast-aluminum body is made for daily drum and tank use, the handle can be padlocked, and anti-siphon protection helps reduce spills. The inlet is 1 inch female NPT and the outlet is 3/4 inch female NPT, so you can add the suction pipe, hose, and spout that fit your setup. The pump threads onto a 2 inch NPT bung. It is listed with CE, ATEX, and UL certifications and is backed by a 2-year warranty.

Key Specs
  • Model: FR150
  • Type: Piston hand pump, pump only
  • Flow rate: 20 gallons / 75 liters per 100 strokes
  • Mounting: 2" NPT bung mount
  • Connections: 1" female NPT inlet, 3/4" female NPT outlet
  • Compatible fluids: Diesel, gasoline, kerosene, mineral spirits, heptane, and Stoddard solvents
  • Duty cycle: Continuous duty (hand-operated); self-priming
  • Included: Pump only; no suction pipe, hose, or nozzle
  • Certifications: CE, ATEX, and UL
  • Assembled weight: 8.2 lbs
  • Warranty: 2 years
Common Uses

Hand-pumping fuel from a 15, 30, or 55 gallon drum or a small tank when you want to choose your own suction pipe, hose, and spout, or when replacing the pump head on an existing FR150-series installation.



Detailed Information

PDF  FR150 Manual
