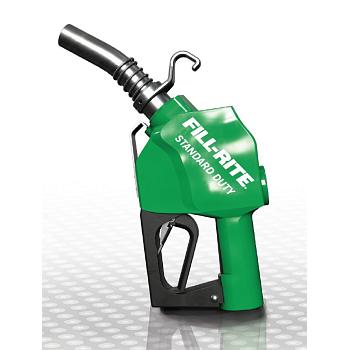

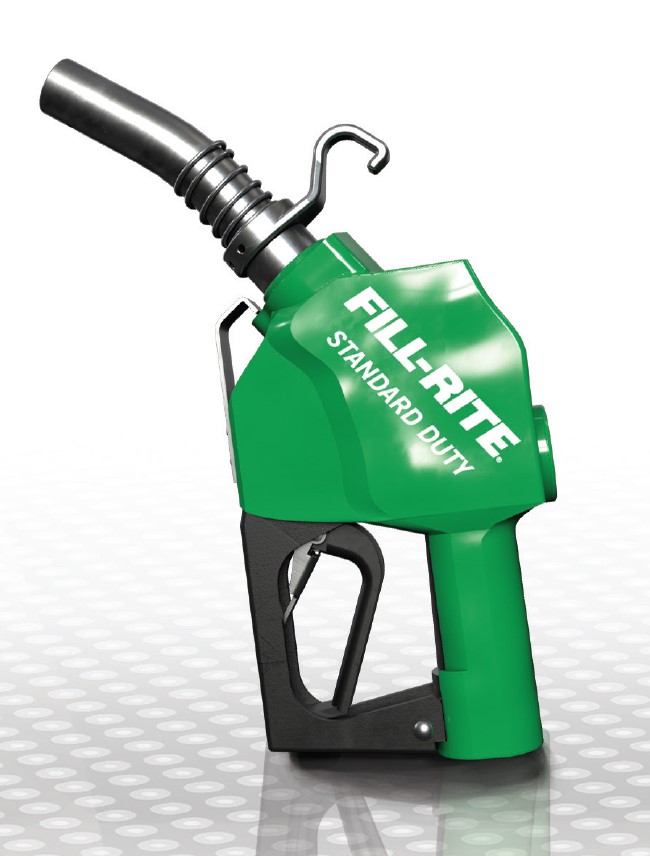

Fill-Rite SDN100GAN 1" 5-25 GPM Automatic Fuel Nozzle with Hook (Green)

Model/SKU: SDN100GAN
Manufacturer Part # SDN100GAN

Description

The Fill-Rite SDN100GAN is a 1 inch standard-duty automatic shutoff nozzle with a green jacket and a 1-1/8 inch diesel spout. The 1 inch female NPT inlet is made for 1 inch transfer hoses and higher-flow pumps.

This nozzle is rated at 25 GPM (94 LPM) and 50 PSI (3.4 bar). Automatic shutoff, a spout spring, and three latch positions let you set the flow and fill without holding the lever the whole time. The green jacket and larger diesel spout help distinguish it from a gasoline nozzle. Minimum operating temperature is -20 degrees F (-29 degrees C). The housing is cast aluminum, it is UL/cUL listed, and it carries a 1-year warranty. Fill-Rite automatic shutoff nozzles are not intended for gravity-flow systems.

Key Specs
  • Model: SDN100GAN
  • Type: Standard-duty automatic diesel nozzle, green jacket, hanging hook
  • Max flow rate: 25 GPM / 94 LPM
  • Inlet: 1" female NPT
  • Spout diameter: 1-1/8" / 29 mm
  • Latch positions: 3
  • Max working pressure: 50 PSI / 3.4 bar
  • Min operating temperature: -20 degrees F / -29 degrees C
  • Compatible fluids: Diesel, gasoline, kerosene, biodiesel up to B20, and ethanol blends up to E15
  • Seal material: Fluorocarbon (Viton) and Buna-N
  • Certifications: UL/cUL
  • Warranty: 1 year
Common Uses

Standard-duty automatic diesel fueling on 1 inch Fill-Rite pump hoses, including many 20-25 GPM transfer packages, when a heavy-duty ultra high-flow nozzle is not required. Not for gravity-flow systems.
