Fill-Rite FRHMN100S 1" Up to 40 GPM (150 LPM) Manual Nozzle with Hook

Model/SKU: FRHMN100S
Manufacturer Part # FRHMN100S

Description

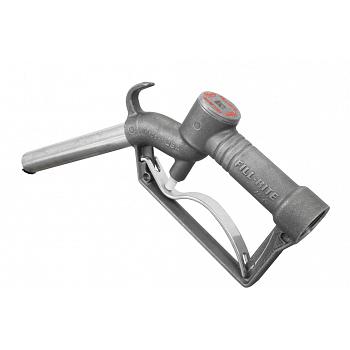

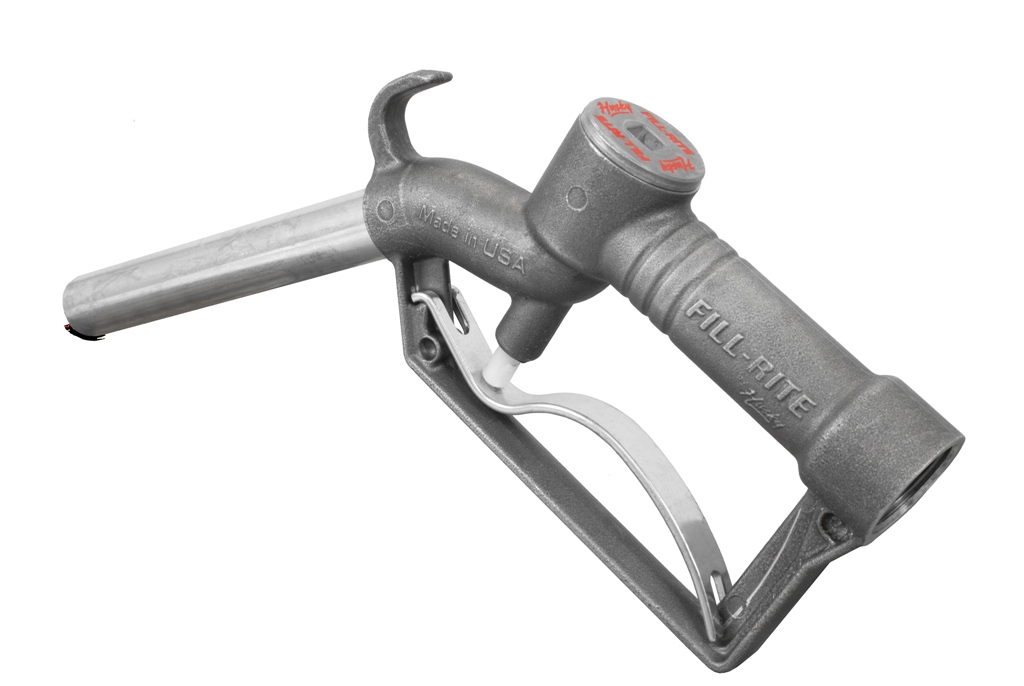

The Fill-Rite FRHMN100S is a 1 inch cast aluminum manual fuel nozzle with a built-in hanging hook. It uses a 15/16 inch spout sized for diesel fill openings and threads onto a 1 inch female NPT hose or pump outlet.

The 1 inch inlet and 40 GPM (151 LPM) rating make this a match for higher-flow 1 inch transfer pumps. The hook parks the nozzle on the pump or a boot between fills, fluorocarbon (Viton) seals handle the listed fuels, and the nozzle is rated to 50 PSI (3.4 bar) down to -20 degrees F (-29 degrees C). It is UL/cUL listed and backed by a 1-year warranty.

Key Specs
  • Model: FRHMN100S
  • Type: Manual nozzle with hanging hook
  • Max flow rate: 40 GPM / 151 LPM
  • Inlet: 1" female NPT
  • Spout diameter: 15/16" / 24 mm (diesel-size)
  • Max working pressure: 50 PSI / 3.4 bar
  • Min operating temperature: -20 degrees F / -29 degrees C
  • Compatible fluids: Diesel, gasoline, kerosene, biodiesel up to B20, and ethanol blends up to E15
  • Seal material: Fluorocarbon (Viton)
  • Certifications: UL/cUL
  • Assembled weight: 1.1 lbs
  • Warranty: 1 year
Common Uses

Manual diesel and listed-fuel dispensing from a 1 inch high-flow transfer pump on bulk tanks, truck fills, and equipment fueling sites.
