Fill-Rite FRHMN075S 3/4" Up to 20 GPM (75 LPM) Manual Nozzle with Hook

Model/SKU: FRHMN075S
Manufacturer Part # FRHMN075S

Description

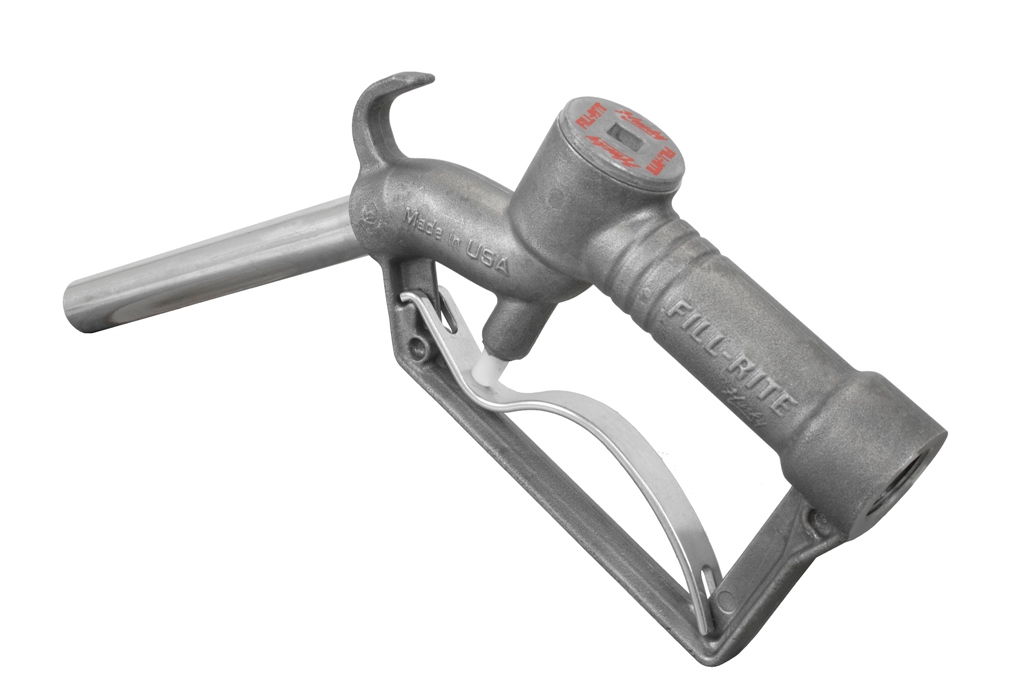

The Fill-Rite FRHMN075S is a 3/4 inch cast aluminum manual fuel nozzle with a built-in hanging hook. It uses a 13/16 inch spout sized for gasoline fill openings and threads onto a 3/4 inch female NPT hose or pump outlet.

The aluminum body is built for daily pump use, and the hook lets you hang the nozzle on the pump or a nozzle boot between fills. Fill-Rite rates it at up to 20 GPM (75 LPM) and 50 PSI (3.4 bar), with fluorocarbon (Viton) seals and a minimum operating temperature of -20 degrees F (-29 degrees C). It is UL/cUL listed and backed by a 1-year warranty.

Key Specs
  • Model: FRHMN075S
  • Type: Manual nozzle with hanging hook
  • Max flow rate: 20 GPM / 75 LPM
  • Inlet: 3/4" female NPT
  • Spout diameter: 13/16" / 21 mm (gasoline-size)
  • Max working pressure: 50 PSI / 3.4 bar
  • Min operating temperature: -20 degrees F / -29 degrees C
  • Compatible fluids: Diesel, gasoline, kerosene, biodiesel up to B20, and ethanol blends up to E15
  • Seal material: Fluorocarbon (Viton)
  • Certifications: UL/cUL
  • Assembled weight: 1.1 lbs
  • Warranty: 1 year
Common Uses

Manual fueling of gasoline and other listed fuels from a 3/4 inch transfer pump on farm tanks, fleet tanks, and shop pumps where an automatic nozzle is not required.
