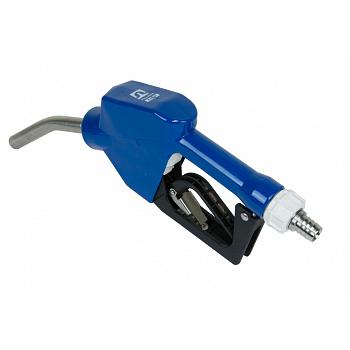

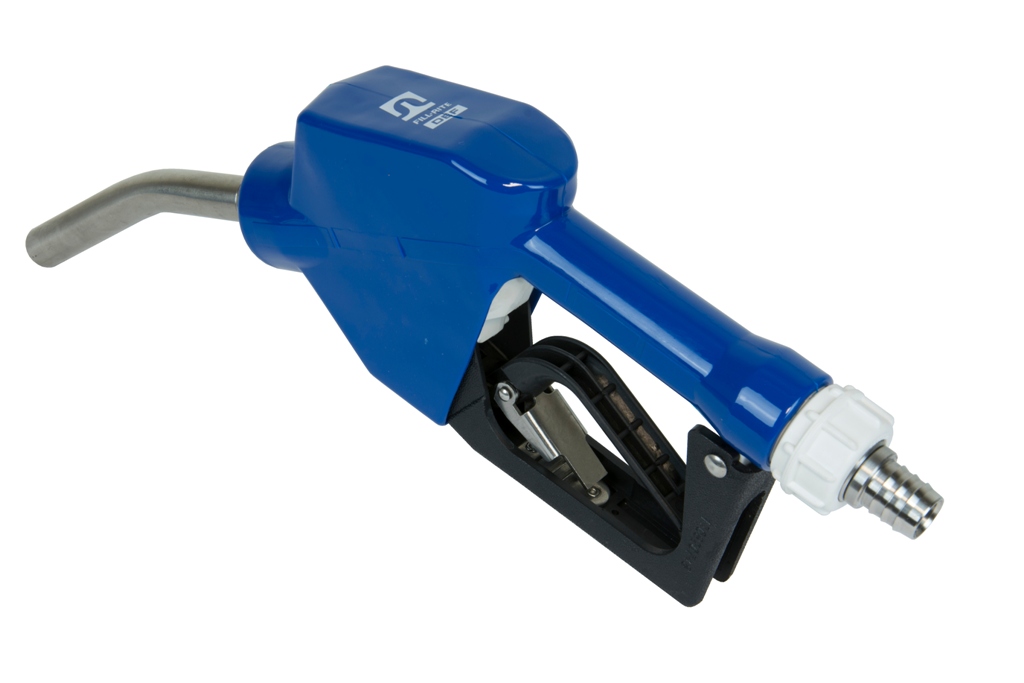

Fill-Rite FRDFA075B DEF Non-Metallic Automatic Nozzle

Model/SKU: FRDFA075B
Manufacturer Part # FRDFA075B

Description

The Fill-Rite FRDFA075B is a 3/4 inch non-metallic automatic shutoff nozzle made for diesel exhaust fluid (DEF). It has a stainless steel diesel-sized spout and an integrated swivel so the hose does not fight you while you fill.

Automatic shutoff helps stop overfills and spills when you are dispensing DEF into equipment or a storage tank. The 3/4 inch male hose-barb inlet hooks up to EPDM DEF hose, the spout measures 0.758 inches, and FKM seals are made for DEF and water service. Minimum operating temperature is 32 degrees F (0 degrees C), and the nozzle is rated to 38 PSI and 14 GPM (53 LPM). It is backed by a 1-year warranty. Fill-Rite automatic shutoff nozzles are not intended for gravity-flow systems.

Key Specs
  • Model: FRDFA075B
  • Type: Automatic DEF nozzle with integrated swivel
  • Max flow rate: 14 GPM / 53 LPM
  • Inlet: 3/4" male hose barb
  • Spout diameter: 0.758" stainless steel, diesel-sized
  • Max operating pressure: 38 PSI
  • Min operating temperature: 32 degrees F / 0 degrees C
  • Compatible fluids: Diesel exhaust fluid (DEF / AdBlue) and water
  • Seal material: FKM
  • Assembled weight: 1.5 lbs
  • Warranty: 1 year
Common Uses

Dispensing DEF from a Fill-Rite DF series pump or another pressurized DEF system into equipment, drums, or small tanks. Not for gravity-flow setups.
