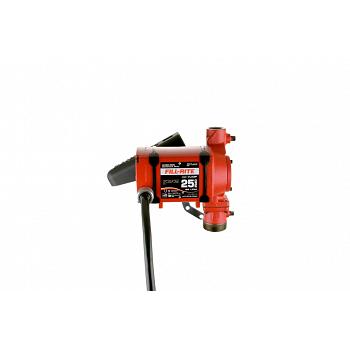

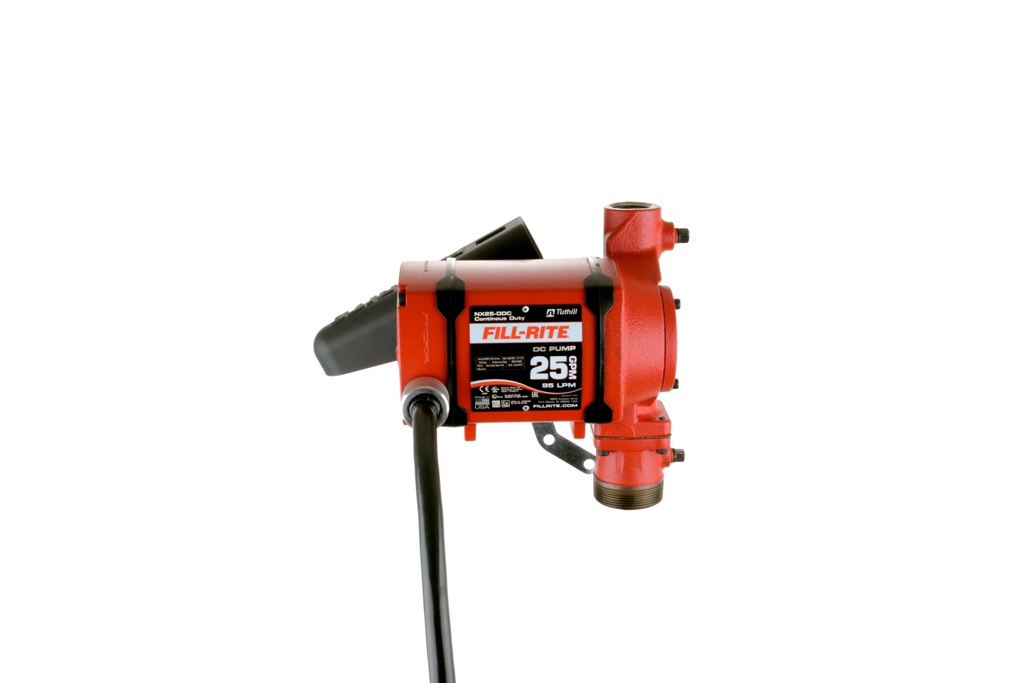

The Fill-Rite NX25-DDCNB-PX is a 12V or 24V DC, 25 GPM continuous-duty fuel transfer pump sold as a bung-mount pump with a 20 foot power cable and installation parts, and with no hose or nozzle. It is made for trucks and tanks that will use a hose and nozzle you already have.
A brushless variable-speed motor is built for continuous-duty fuel transfer, so you can run it through a workday without a 30 minutes on / 30 minutes off rest cycle. Fill-Rite rates the pump at a true 25 GPM (94 LPM) at the nozzle, with 12 feet of suction lift and 48 feet of discharge head (21 PSI). The 12V/24V motor draws up to 30 A and connects with a 20 foot, 10 gauge removable power cable and battery clips. The cast iron rotary vane pump is powder coated for outdoor use, has thermal protection, and is self-priming. It carries a Limited Lifetime warranty and is listed with cULus, ATEX, IECEx, and CE certifications. The 2 inch NPT bung adapter uses a 1.25 inch female NPT inlet, and the pump outlet is 1 inch female NPT. Installation parts include a nozzle boot, PTFE tape, a 1 inch NPT street elbow, and a locking nut.
Bung-mounting a 12V or 24V DC 25 GPM continuous-duty pump on a truck or skid tank when you will add your own hose and nozzle, or when replacing the pump on an existing NX25-DDC bung-mount installation.
