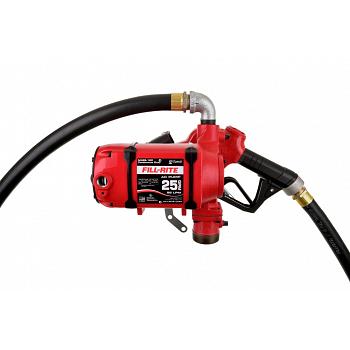

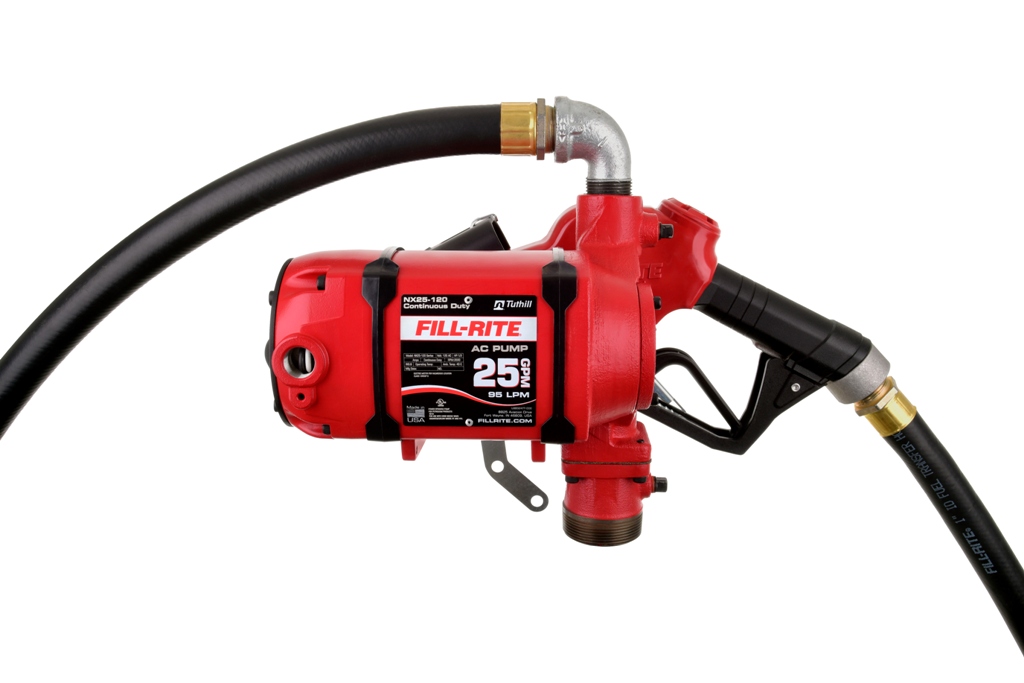

Fill-Rite NX25-120NB-AA 120V Fuel Transfer Pump (Auto Nozzle, Discharge Hose) - 25 GPM

Model/SKU: NX25-120NB-AA
Manufacturer Part # NX25-120NB-AA

Description

The Fill-Rite NX25-120NB-AA is a 115V AC, 25 GPM continuous-duty fuel transfer pump that bung-mounts on a tank. The AA kit includes a 1 inch by 18 foot UL Listed discharge hose with a static ground wire, a 1 inch ultra high-flow automatic diesel nozzle with a green cover, and the installation parts needed to put it on a tank.

A brushless variable-speed motor is built for continuous-duty fuel transfer, so you can run it through a workday without a 30 minutes on / 30 minutes off rest cycle. Fill-Rite rates the pump at a true 25 GPM (94 LPM) at the nozzle, with 12 feet of suction lift and 48 feet of discharge head (25 PSI). The cast iron rotary vane pump is powder coated for outdoor use, has thermal (electronic) protection, and is self-priming. It carries a Limited Lifetime warranty. The 2 inch NPT bung adapter uses a 1.25 inch female NPT inlet, and the pump outlet is 1 inch female NPT.

Key Specs
  • Model: NX25-120NB-AA
  • Mounting: 2" NPT bung mount
  • Connections: 1.25" female NPT inlet, 1" female NPT outlet
  • Max flow rate: 25 GPM / 94 LPM
  • Power: 115V AC, 3.5 A; 0.33 HP (1/3 HP) brushless variable-speed motor; 16 gauge bare leads
  • Duty cycle: Continuous duty
  • Suction lift / discharge: 12' suction lift; 11 in. Hg dry vacuum; 48' discharge head (25 PSI)
  • Operating temperature: -40 degrees F to 125 degrees F
  • Compatible fluids: Diesel, kerosene, biodiesel up to B20, gasoline up to E15, and mineral spirits
  • Housing: Cast iron, powder-coated
  • Strainer: 20 x 20 x .008" mesh
  • Included: 1" x 18' UL Listed hose with static ground wire, 1" ultra high-flow automatic diesel nozzle (green), nozzle boot, PTFE tape, 1" NPT street elbow, and locking nut
  • Certifications: cULus
  • Assembled weight: 22.6 lbs
  • Warranty: Limited Lifetime
Common Uses

High-volume, all-day fueling from a 115V AC tank or skid in fleet yards, farms, and equipment shops that want a bung-mounted pump with the hose and automatic nozzle already in the box.



Detailed Information

PDF  Sales Sheet

PDF  Technical Data Sheet

PDF  Product Manual
