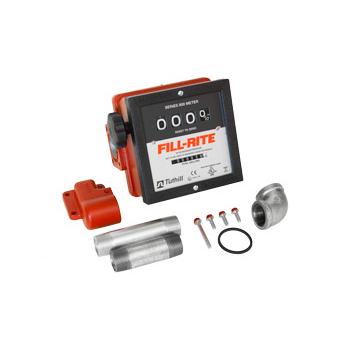

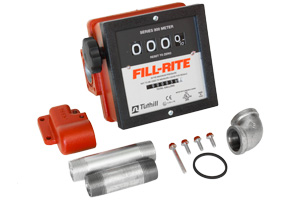

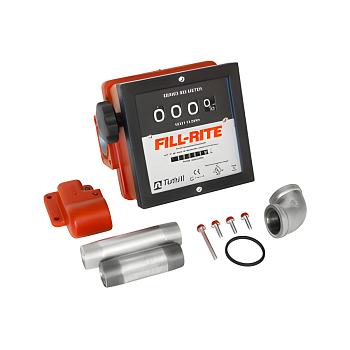

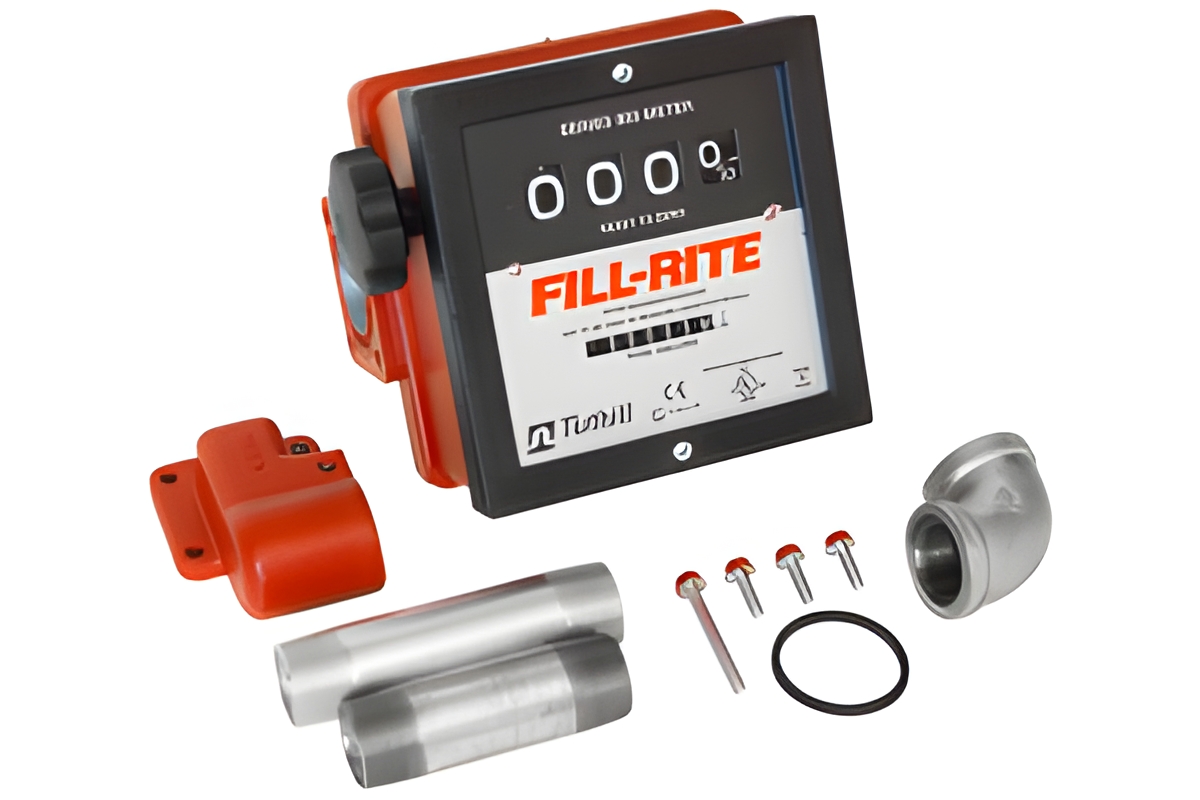

The Fill-Rite 901CMK4200 is a 1 inch 4-digit mechanical fuel transfer meter that reads in gallons, sized for high-volume pumps running 6 to 40 GPM. It comes bundled with an FR4200 series meter flange, a 1 inch female NPT elbow, and 1 inch pipe nipples for mounting on a Fill-Rite FR4200 series pump. It is a good fit for farms, fleets, and job sites that want a simple, no-power way to track fuel going into heavy equipment.
Nutating disc metering measures within plus or minus 2% accuracy with 0.38% repeatability and can pass small rust and debris particles that jam other meter designs. The 4-digit batch counter registers up to 999.9 gallons per fill and resets with a knob, while a 7-digit non-resettable totalizer keeps a lifetime record. The cast-aluminum housing is rated to 50 PSI, the flow ports can be set in any of four positions for horizontal or vertical piping, and the meter is factory calibrated and can be field calibrated with an adjustment screw. It carries CE, cULus, and ATEX certifications and a 2-year warranty. Not for fluid resale.
Adding gallons metering on Fill-Rite FR4200 series pumps for in-house fuel tracking on farm tanks, fleet fueling stations, and construction fuel trailers that fill tractors, trucks, and other heavy equipment. Not for retail fuel sales or aircraft fueling.
