Fill-Rite 901CMK300V 4-Wheel Mechanical Meter, 1 in Meter 6-40 GPM, Pipe fittings fit 300V Pumps

Model/SKU: 901CMK300V
Manufacturer Part # 901CMK300V

Description

The Fill-Rite 901CMK300V is a 1 inch 4-digit mechanical fuel transfer meter that reads in gallons, sized for high-volume pumps running 6 to 40 GPM. It comes bundled with an FR300 series meter flange and installation hardware for mounting directly on a Fill-Rite FR300V series pump. It is a good fit for farms, fleets, and job sites that want a simple, no-power way to track fuel going into heavy equipment.

Nutating disc metering measures within plus or minus 2% accuracy with 0.38% repeatability and can pass small rust and debris particles that jam other meter designs. The 4-digit batch counter registers up to 999.9 gallons per fill and resets with a knob, while a 7-digit non-resettable totalizer keeps a lifetime record. The cast-aluminum housing is rated to 50 PSI, the flow ports can be set in any of four positions for horizontal or vertical piping, and the meter is factory calibrated and can be field calibrated with an adjustment screw. It carries CE, cULus, and ATEX certifications and a 2-year warranty. Not for fluid resale.

Key Specs
  • Model: 901CMK300V
  • Type: 4-digit mechanical nutating disc meter (gallons)
  • Flow range: 6-40 GPM
  • Accuracy / repeatability: Plus or minus 2% / 0.38%
  • Inlet / outlet: 1" female NPT / 1" female NPT
  • Counters: 4-digit resettable batch counter (up to 999.9 gallons); 7-digit non-resettable totalizer
  • Max operating pressure: 50 PSI
  • Operating temperature: -15 to 150 degrees F (-26 to 66 degrees C)
  • Compatible fluids: Diesel, gasoline, kerosene, mineral spirits, heptane, and hexane
  • Materials: Cast aluminum housing; fluorocarbon seals; 316 stainless steel, aluminum, fluorocarbon, PPS, and PTFE wetted parts

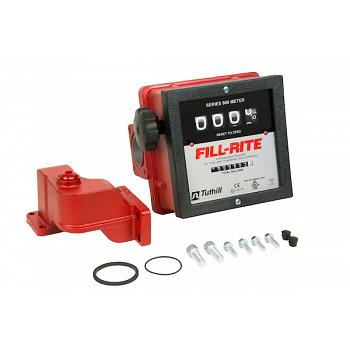

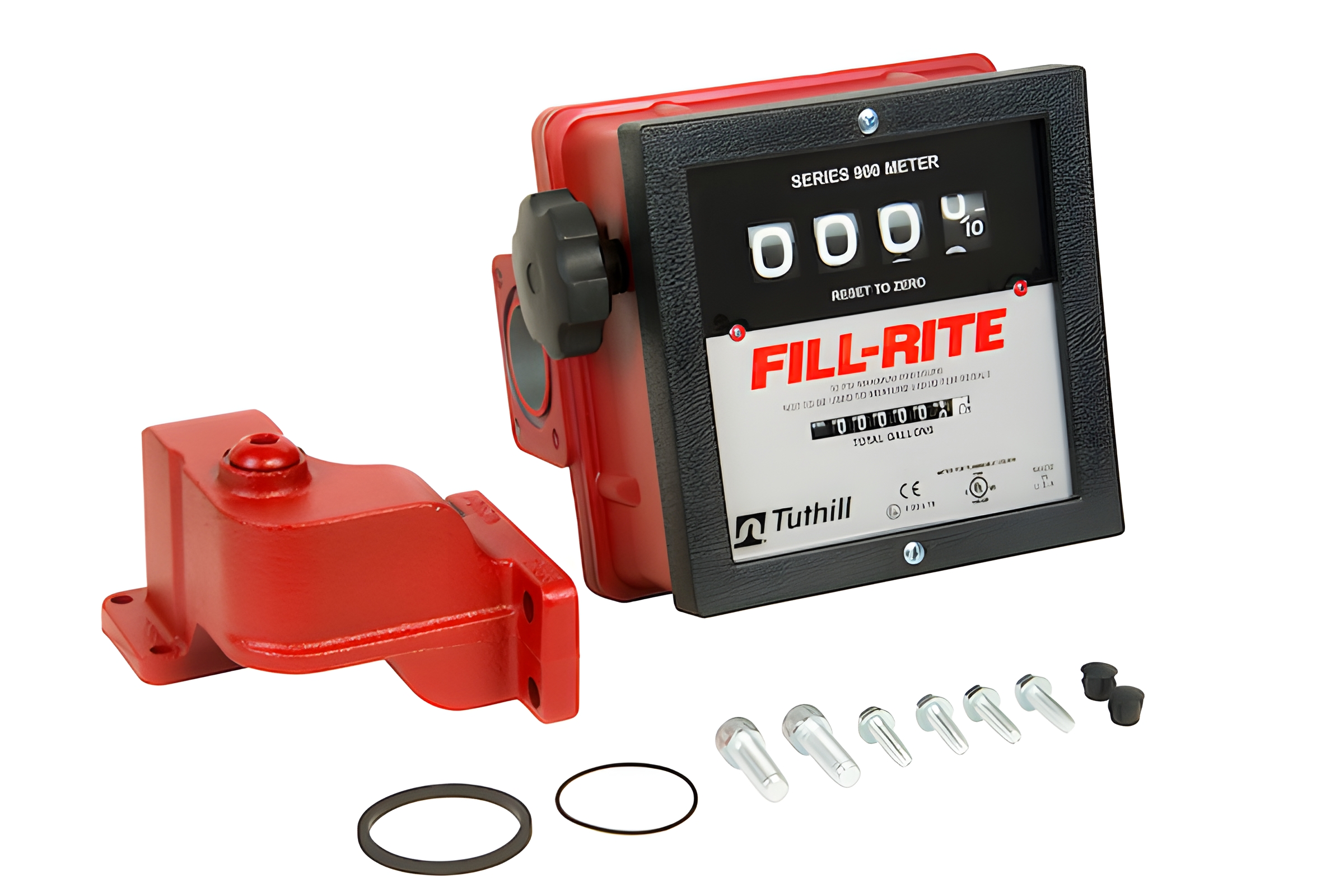

  • Included: Meter, reset knob, FR300 series meter flange, and installation components
  • Assembled weight: 7.5 lbs (meter)
  • Certifications: CE, cULus, ATEX
  • Warranty: 2 years
Common Uses

Adding gallons metering on Fill-Rite FR300V series pumps for in-house fuel tracking on farm tanks, fleet fueling stations, and construction fuel trailers that fill tractors, trucks, and other heavy equipment. Not for retail fuel sales or aircraft fueling.
