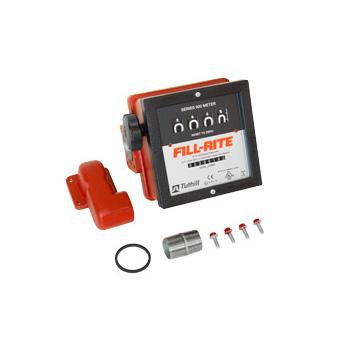

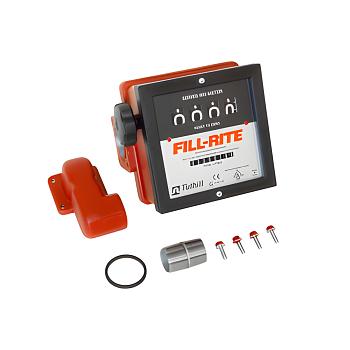

Fill-Rite 901CLMK300 4-Wheel Mechanical Meter, 1.5 in Meter 1

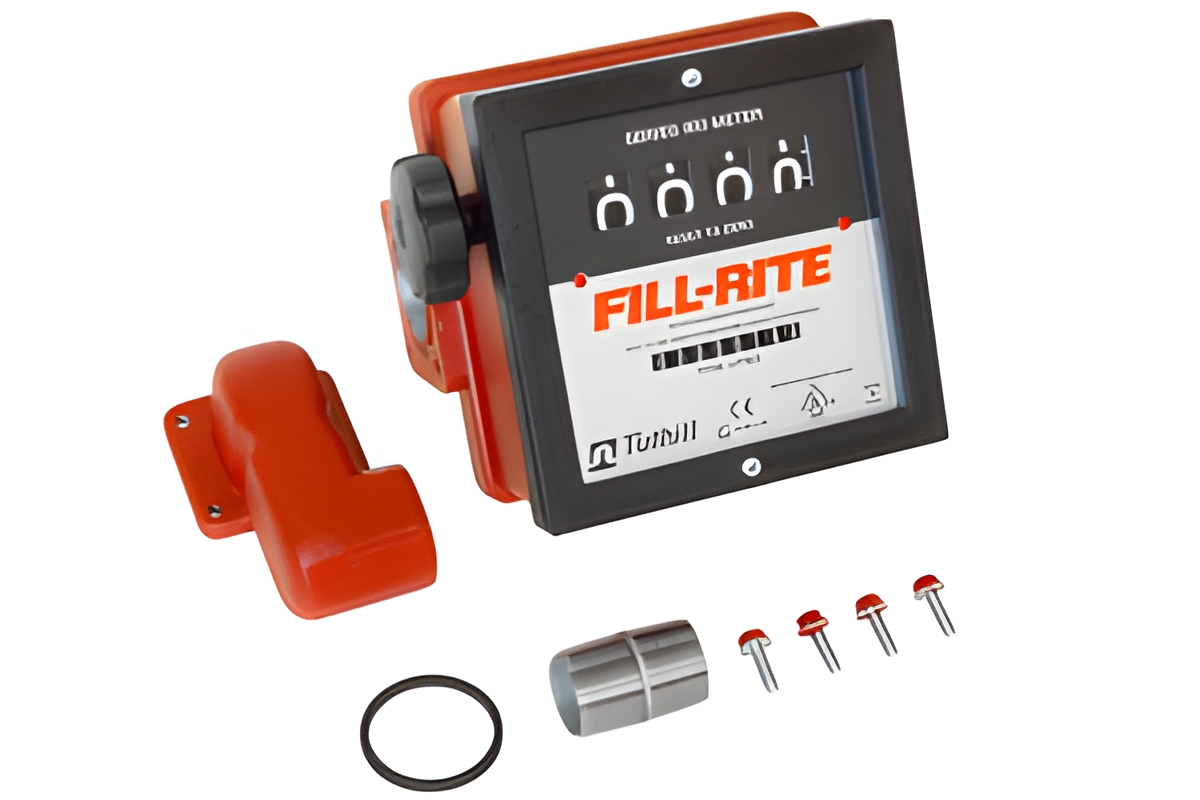

Fill-Rite 901CLMK300 4-Wheel Mechanical Meter, 1.5 in Meter 2
Lead Time:  3-5 Days
Ships From: Indiana

Model: 901CLMK300
Manufacturer: Fill-Rite

The 901CLMK300 Mechanical flow meter has a large easy to read display, flow ports can be positioned vertically or horizontally, UL/cUL listed, handles fluid of any viscosity, rated for Gasoline, Diesel, Kerosene, mineral spirits, Stoddard solvents and heptane. Fill-Rite meters provide precision and durability in a cost-effective design. The 901CLMK300 meter is a 4-wheel mechanical meter designed for transfer pumps with a flow rate of 23 to 151 LPM. this meter has a 1 in. inlet and outlet.  Package has fittings to install in the 300 Series pumps.

Features & Benefits

  • +/- 2% accuracy
  • UL/cUL, CE listed
  • 23-151 LPM
  • 50 psi
  • 1 in. inlet, 1 in. outlet
  • Large easy to read display
  • NPT threads
  • Fittings in package for the 300 Series pumps
  • Replaces model 901LMK300

Detailed Information

PDF  901CLMK300 Manual

Fill-Rite Warranty Details:

PDF  Fill-Rite Warranty
