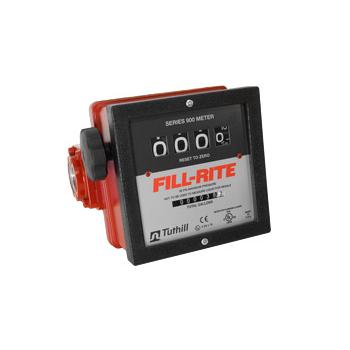

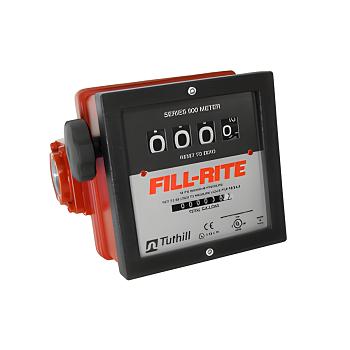

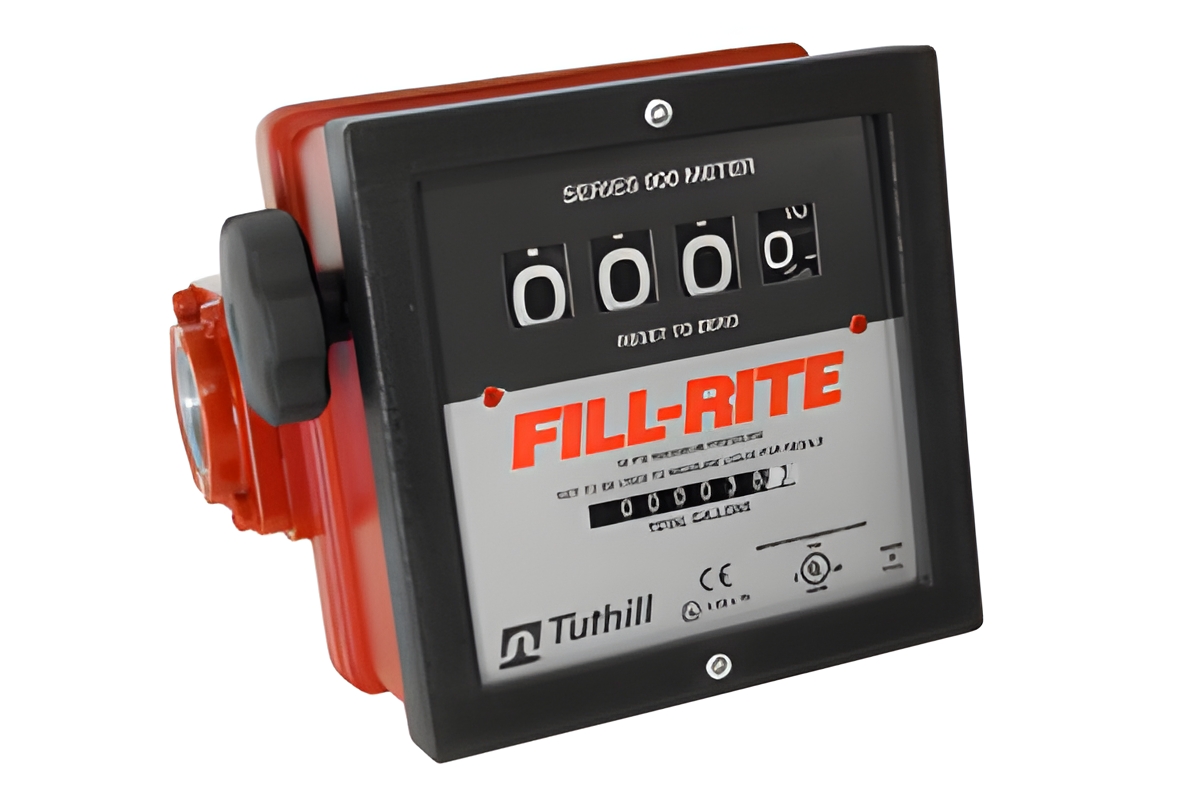

Fill-Rite 901CL1.5 4 Wheel Mechanical Meter, 1.5 in Meter 23-151 LPM

Model/SKU: 901CL1.5
Manufacturer Part # 901CL1.5

Description

The Fill-Rite 901CL1.5 is a 1.5 inch 4-digit mechanical fuel transfer meter that reads in liters, sized for high-volume pumps running 23 to 151 LPM. It is a good fit for farms, fleets, and job sites that want a simple, no-power way to track fuel going into heavy equipment.

Nutating disc metering measures within plus or minus 2% accuracy with 0.38% repeatability and can pass small rust and debris particles that jam other meter designs. The 4-digit batch counter registers up to 999.9 liters per fill and resets with a knob, while a 7-digit non-resettable totalizer keeps a lifetime record. The cast-aluminum housing is rated to 50 PSI, the flow ports can be set in any of four positions for horizontal or vertical piping, and the meter is factory calibrated and can be field calibrated with an adjustment screw. It carries CE, cULus, and ATEX certifications and a 2-year warranty. Not for fluid resale.

Key Specs
  • Model: 901CL1.5
  • Type: 4-digit mechanical nutating disc meter (liters)
  • Flow range: 23-151 LPM
  • Accuracy / repeatability: Plus or minus 2% / 0.38%
  • Inlet / outlet: 1.5" female NPT / 1.5" female NPT
  • Counters: 4-digit resettable batch counter (up to 999.9 liters); 7-digit non-resettable totalizer
  • Max operating pressure: 50 PSI
  • Operating temperature: -15 to 150 degrees F (-26 to 66 degrees C)
  • Compatible fluids: Diesel, gasoline, kerosene, mineral spirits, heptane, and hexane
  • Materials: Cast aluminum housing; fluorocarbon seals; 316 stainless steel, aluminum, fluorocarbon, PPS, and PTFE wetted parts
  • Included: Meter and reset knob
  • Assembled weight: 7.8 lbs
  • Certifications: CE, cULus, ATEX
  • Warranty: 2 years
Common Uses

Adding liters metering for in-house fuel tracking on farm tanks, fleet fueling stations, and construction fuel trailers that fill tractors, trucks, and other heavy equipment. Not for retail fuel sales or aircraft fueling.
